2024 Suzuki SV650AM4(E28) Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

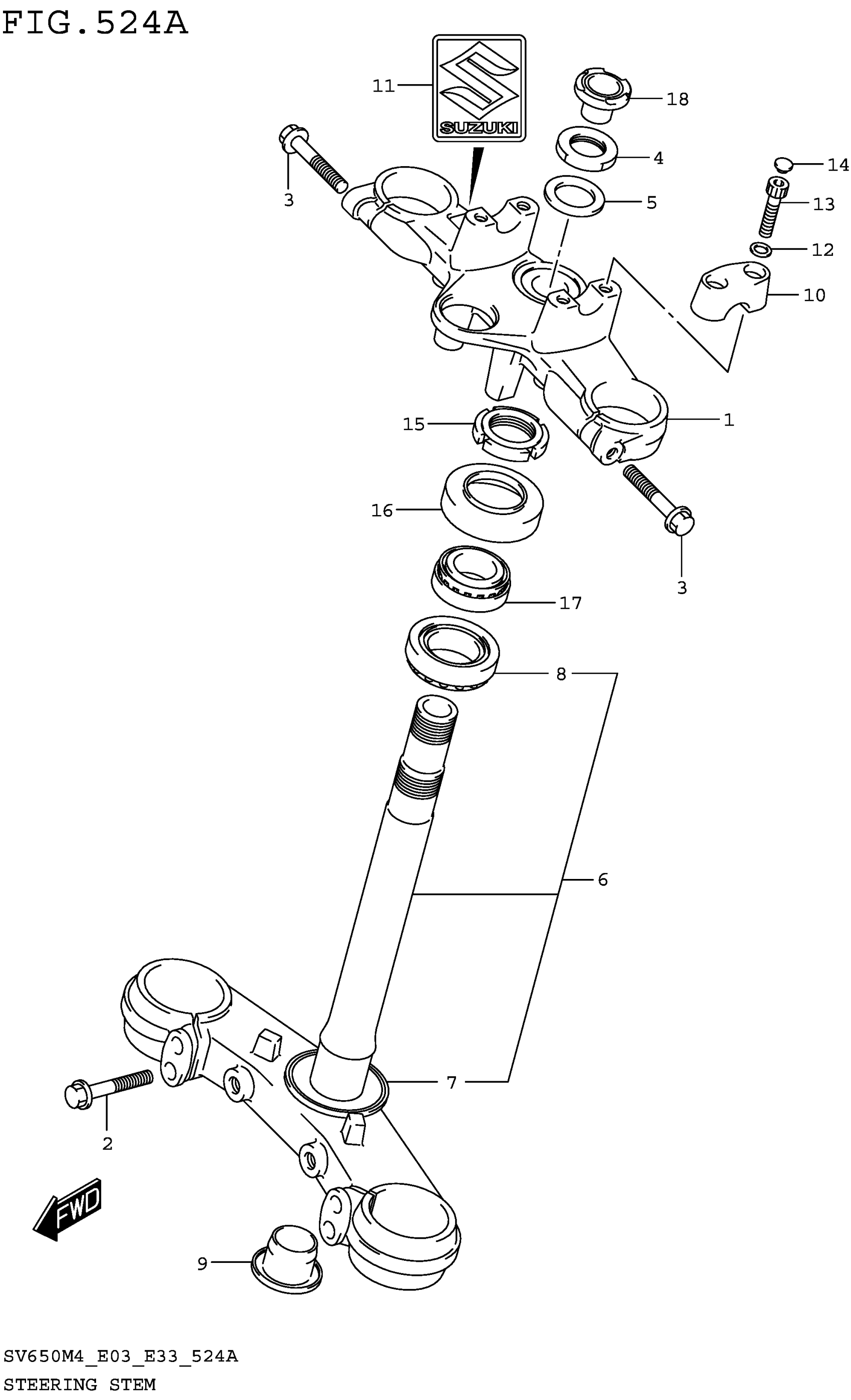

2024 Suzuki SV650AM4(E28) Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD,STEERING STEM (BLACK)

51311-44H00-291

1
Out of stock

2

BOLT

51328-44H00

2
Out of stock

3

BOLT

51328-44H00

4
Out of stock

4

NUT

51353-13K00

1
Out of stock

5

WASHER

51356-13K00

1
Out of stock

6

BRACKET,UNDER (BLACK)

51410-44HD0-291

1
Out of stock

7

.SEAL,STEERING LWR (30.1X56X4 | (30.1X56X4)

51644-12C00

1
Out of stock

8

.BEARING (30X55X17)

09265-30020

1
Out of stock

9

CAP

51482-44H00

1
Out of stock

10

HOLDER,HANDLE (BLACK)

56211-44H00-291

2
Out of stock

11

EMBLEM,S

68281-47HA0

1
Out of stock

12

WASHER

09164-08015

4
Out of stock

13

BOLT,HOLDER,HANDLE

51321-10F10

4
Out of stock

14

CAP

09250-06016

4
Out of stock

15

NUT,STEERING STEM

51631-31F10

1
Out of stock

16

SEAL,DUST

51643-40503

1
Out of stock

17

BEARING (25X47X15)

09265-25038

1
Out of stock

18

CAP,STEERING STEM

51344-23K10

1
Out of stock

19

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.524B(2-C-7 ) STEERING STEM (SV650M4 E33) FIG.524C(2-C-8 ) STEERING STEM (SV650AM4 E28) FIG.524D(2-C-9 ) STEERING STEM (SV650AM4 E33) FIG.524E(2-C-10) STEERING STEM (SV650XAM4 E28)

SPECIAL NOTE

—
Out of stock
