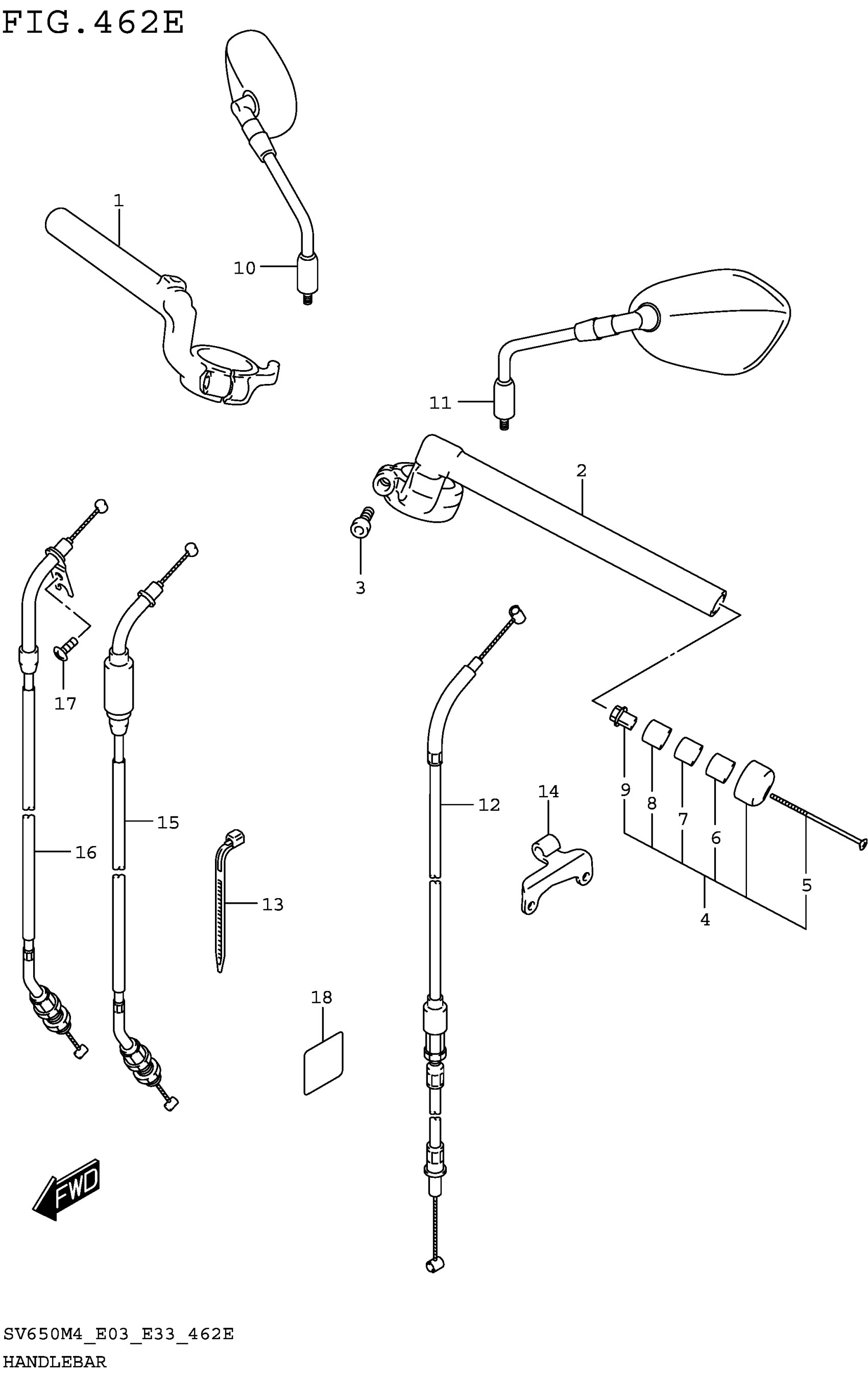

Suzuki SV650AM4(E28) (2024) HANDLEBAR (SV650XAM4 E28) Diagram

#

Description
Price

1

HANDLEBAR,R

56111-17G20

$222.28

2

HANDLEBAR,L

56151-17G20

$230.75

3

BOLT

07130-0830B

$5.27

4

BALANCER SET,HANDLEBAR

56200-41831

$34.16

5

.SCREW

02122-0670B

$4.03

6

.EXPANDER,HANDLE BALANCER

56272-42F00

$6.15

7

.SPACER (6.5X16X15)

09180-06161

$7.10

8

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.44

9

.NUT,HANDLE BALANCER

56273-10G10

$7.92

10

MIRROR ASSY,REAR VIEW,R

56500-08J12

$130.48

11

MIRROR ASSY,REAR VIEW,L

56600-08J12

$125.58

12

CABLE ASSY,CLUTCH

58200-18K00

$49.28

13

CLAMP (L:165)

09407-18402

$2.21

14

STOPPER,CLUTCH CABLE

58634-44H00

$17.40

15

CABLE ASSY,THROTTLE NO.1

58300-18K02

$49.28

16

CABLE ASSY,THROTTLE NO.2

58300-18K12

$44.88

17

SCREW

02142-0510B

$1.77

18

PROTECTOR (25X25X0.2)

87873-56K50

$11.18
