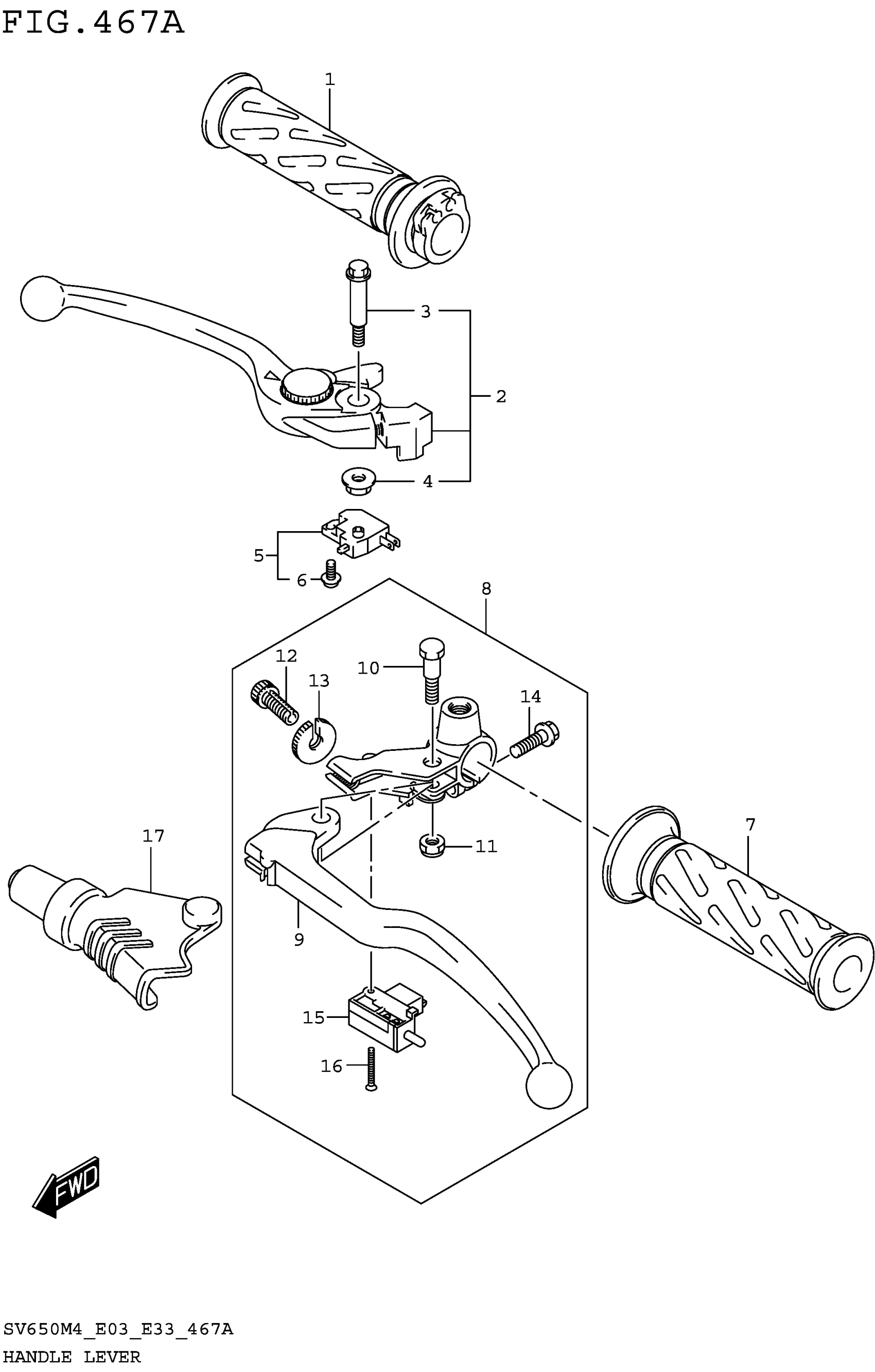

Suzuki SV650AM4(E28) (2024) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$19.46

2

LEVER ASSY,BRAKE

57300-44G20

$48.90

3

.BOLT,LEVER PIVOT

57431-17H02

$7.02

4

.NUT

08319-2106A

$1.97

5

SWITCH ASSY,FR BRAKE

57460-14J02

$36.79

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP,L

57211-21H01

$10.65

8

LEVER ASSY,CLUTCH

57500-25D32

$53.24

9

..LEVER,CLUTCH

57621-25D10

$35.00

10

..BOLT,LEVER PIVOT

57431-21D11

$9.34

11

.NUT

08319-2106A

$1.97

12

.ADJUSTER, WIRE

57441-45C01

$8.67

13

.NUT, LOCK

57442-45C01

$8.27

14

..BOLT

01547-0620B

$2.50

15

.SWITCH,CLUTCH

57560-05A00

$11.63

16

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

17

COVER,CLUTCH LEVER

57661-33E01

$8.11
