2024 Suzuki SV650AM4(E28) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

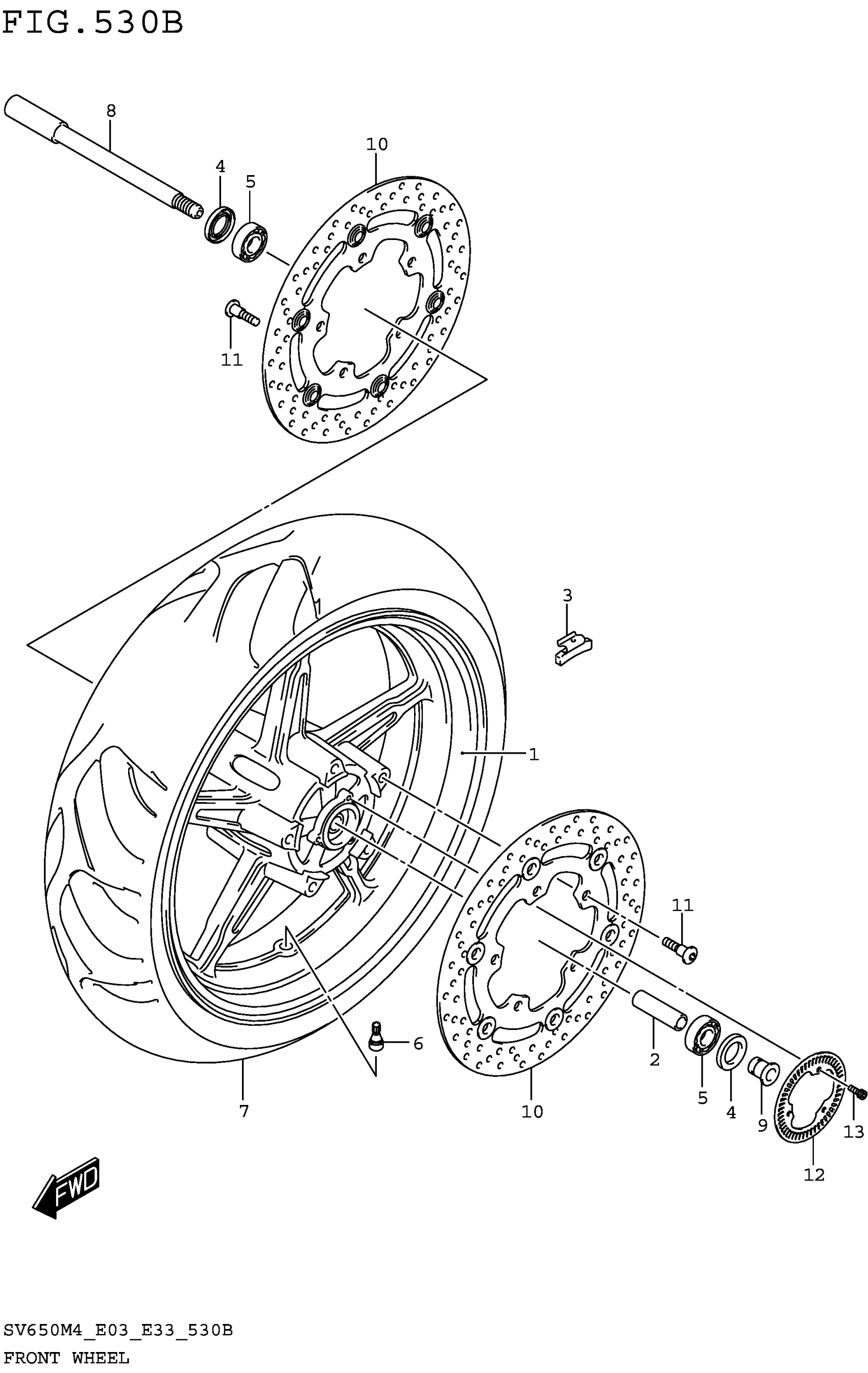

2024 Suzuki SV650AM4(E28) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

WHEEL,FRONT (17M/CXMT3.50,SIL | (SILVER) FOR QT8,YVB

54111-18K10-YMY

1
Out of stock

1-2

WHEEL,FRONT (RED) | (RED) FOR BTH

54111-18K10-QGY

1
Out of stock

2

SPACER,FR HUB BEARING

54731-44H00

1
Out of stock

3-1

BALANCER,WHEEL (10G)

55411-22H00

1
Out of stock

3-2

BALANCER,WHEEL (20G)

55412-22H00

1
Out of stock

3-3

BALANCER,WHEEL (30G)

55413-22H00

1
Out of stock

4

SEAL,OIL (22X40X7)

09285-22004

2
Out of stock

5

BEARING

08123-6203B

2
Out of stock

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

1
Out of stock

7

TIRE,FRONT (120/70ZR17 M/C 58 | 58W) SPORTMAX ROADSMART3,DUNLOP

55110-18K02

1
Out of stock

8

AXLE,FR

54711-08F00

1
Out of stock

9

SPACER,FR AXLE,L

54751-44H00

1
Out of stock

10

DISC,FR BRAKE

59210-38G10

2
Out of stock

11

BOLT (8X21)

09106-08160

10
Out of stock

12

RING,SPEED SENSOR FR (50T)

54162-44H00

1
Out of stock

13

BOLT

07130-0512A

3
Out of stock
