2018 Suzuki SV650AL8 Radiator Hose Diagram

← All diagrams

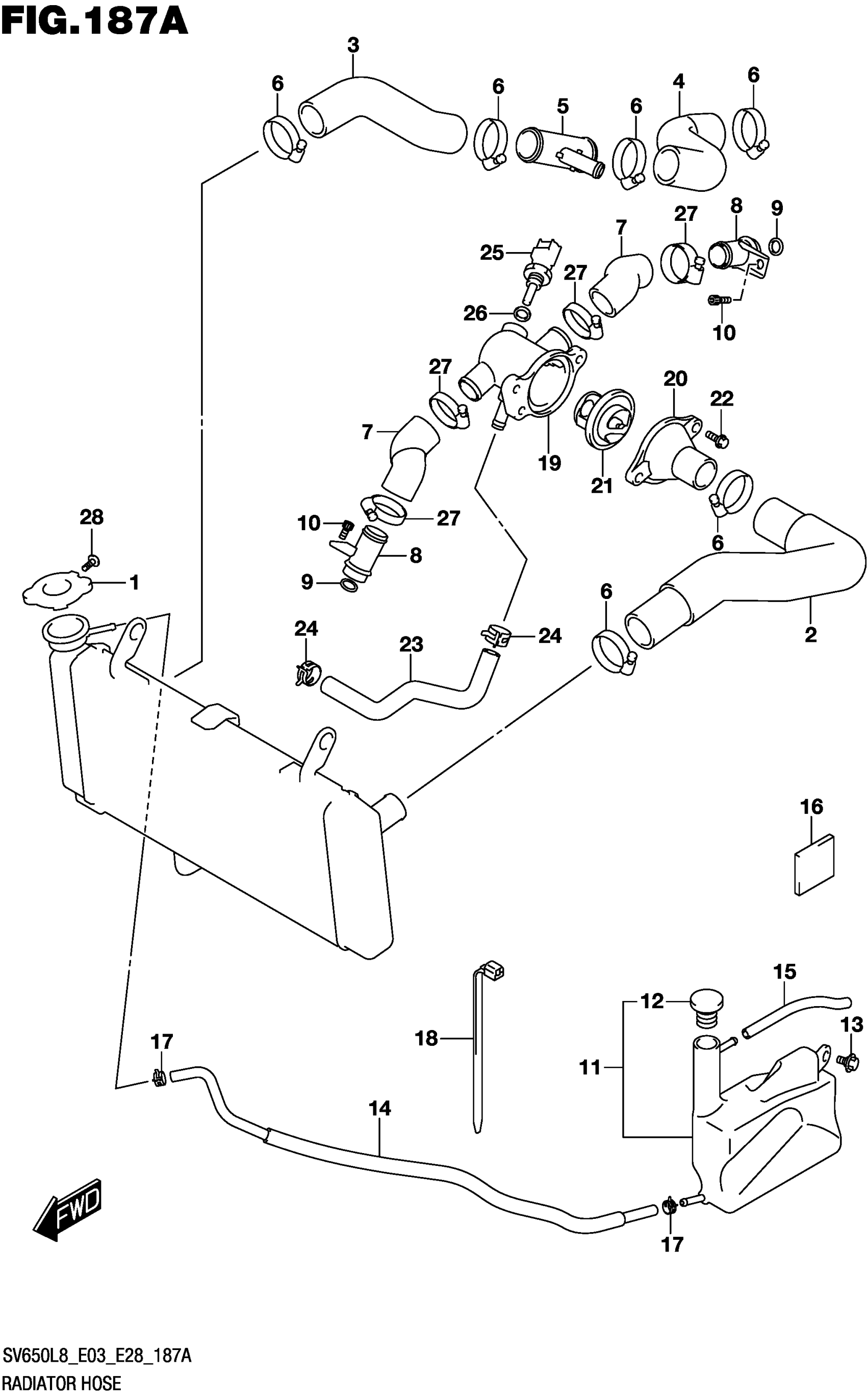

Find the part on the Radiator Hose diagram for your 2018 Suzuki SV650AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki SV650AL8 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP,RADIATOR (1.1)

17730-08D10

1

$58.77

In stock

2

HOSE,RADIATOR INLET

17851-44H00

1

$66.95

In stock

3

1

$26.03

In stock

4

1

$23.05

In stock

5

1

$9.08

In stock

6

CLAMP

09402-35501

6

$7.21

In stock

7

HOSE,CONNECTOR INLET

17853-19F00

2

$14.70

In stock

8

UNION,CONNECTOR HOSE

17890-06G20

2

$14.80

In stock

10

BOLT

07130-0612A

2
Out of stock

11

TANK ASSY,RESERVOIR

17910-18K00

1
Out of stock

12

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

13

BOLT (6X12)

09111-06083

1
Out of stock

14

HOSE,RSVR TANK INLET

17981-44H00

1
Out of stock

15

HOSE (5X9X600) | L:600->180

09352-50901-600

1
Out of stock

16

1

$3.13

In stock

17

CLIP (ID:8.6)

09401-08411

2
Out of stock

18

CLAMP (L:165)

09407-18402

1
Out of stock

19

1

$72.57

In stock

20

1

$33.12

In stock

21

1

$25.68

In stock

22

BOLT

01547-0616A

2
Out of stock

23

1

$23.30

In stock

24

CLIP

09401-12414

2
Out of stock

25

SENSOR,TEMP

13650-49X00

1
Out of stock

26

GASKET (12X17X1)

09168-12017

1
Out of stock

27

CLAMP

09402-28513

4
Out of stock

28

SCREW,RADIATOR CAP

17733-03D10

1
Out of stock
