2018 Suzuki SV650AL8 CAM Chain Diagram

← All diagrams

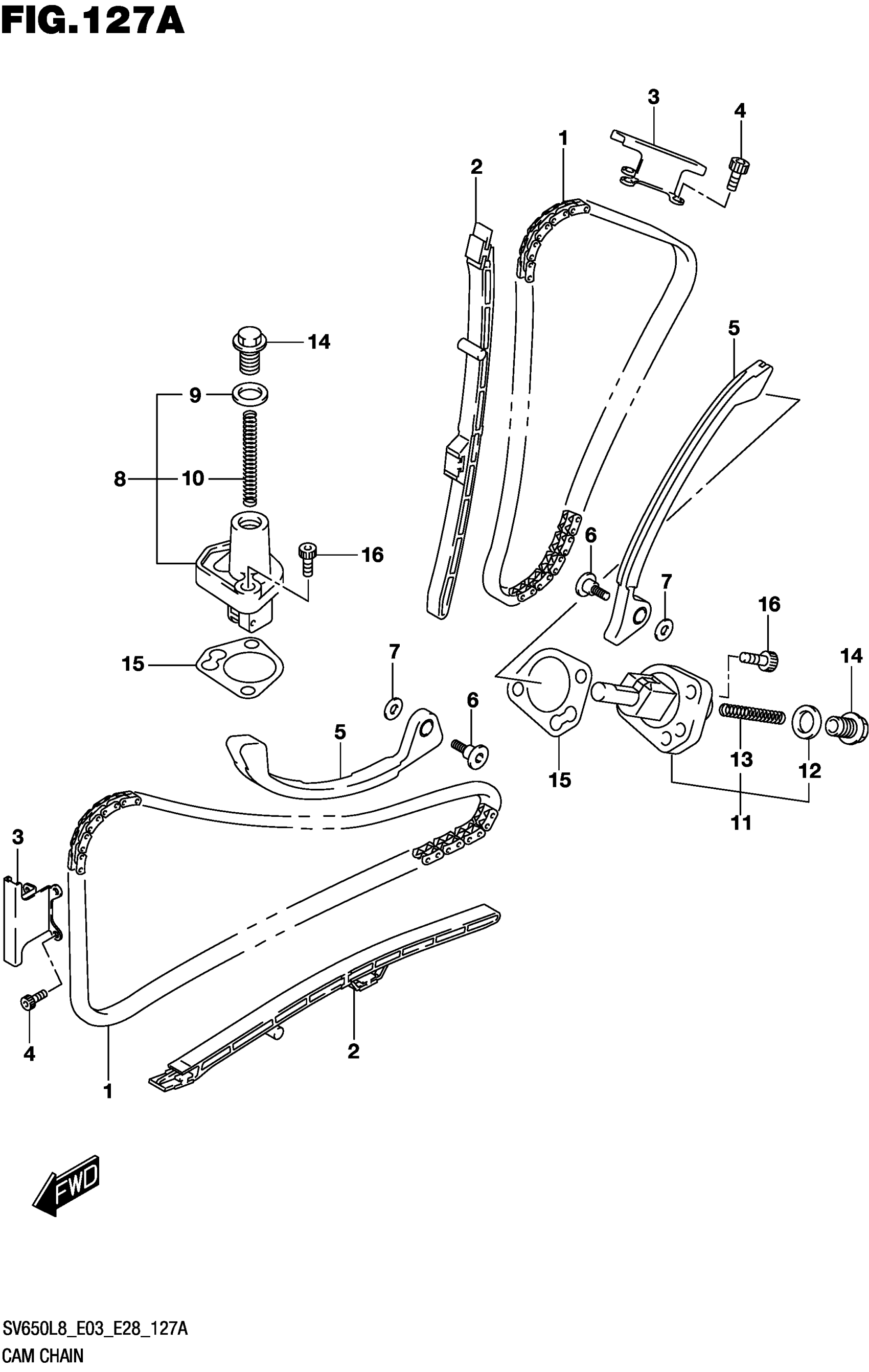

Find the part on the CAM Chain diagram for your 2018 Suzuki SV650AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki SV650AL8 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-19F01

2
Out of stock

2

GUIDE,CAM CHAIN NO.1 This part replaces 12771-44H00.

12771-44H01

2
Out of stock

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-19F00.

12782-19F01

2
Out of stock

4

BOLT

07130-0612A

6
Out of stock

5

TENSIONER,CAM CHAIN This part replaces 12811-17G00.

12811-17G01

2
Out of stock

6

BOLT,CAM CHAIN TENSIONER

12812-35C00

2
Out of stock

7

WASHER

08211-06181

2
Out of stock

8

ADJUSTER ASSY,TENSIONER FR

12830-27G00

1
Out of stock

9

.GASKET,TENSIONER ADJUSTER

12837-24F10

1
Out of stock

10

.SPRING

12831-39F00

1
Out of stock

11

ADJUSTER ASSY,TENSIONER RR

12830-27G10

1
Out of stock

12

.GASKET,TENSIONER ADJUSTER

12837-24F10

1
Out of stock

13

.SPRING

12831-39F00

1
Out of stock

14

PLUG,TENSIONER ADJUSTER

12833-17G00

2
Out of stock

15

.GASKET,TENSIONER ADJUSTER

12837-27G10

2
Out of stock

16

BOLT (6X25)

07130-0625A

4
Out of stock
Camshaft/valve →
