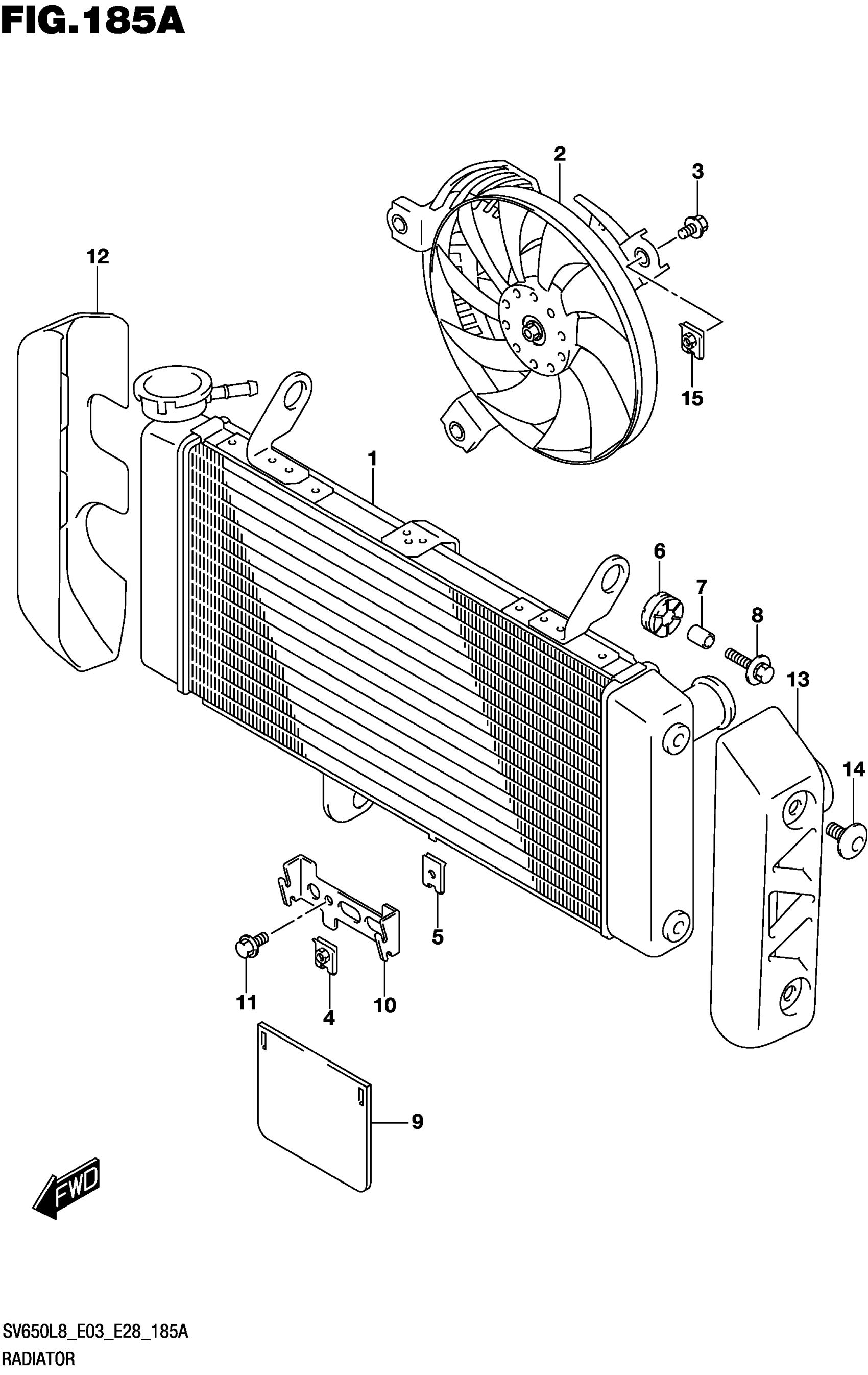

Suzuki SV650AL8 (2018) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,WATER

17710-18K00

$799.15

2

FAN ASSY,RADIATOR

17800-18K00

$597.53

3

BOLT

01550-0616A

$1.97

4

NUT,RADIATOR FAN

17802-14F00

$3.18

5

NUT

17802-45G00

$4.62

6

CUSHION

09320-10051

$2.81

7

SPACER (6.5X10X12)

09180-06290

$2.01

8

BOLT (6X25)

09118-06097

$2.50

9

RUBBER,RADIATOR UNDER

17781-17G00

$11.18

10

BRACKET,RDTR UNDER RUBBER

17741-17G00

$6.52

11

BOLT

01547-0610A

$1.47

12

COVER,RADIATOR RH

17761-18K00

$12.82

13

COVER,RADIATOR LH

17762-18K00

$12.82

14

SCREW (6X12)

09139-06183

$2.80

15

NUT

17802-12K00

$5.98
