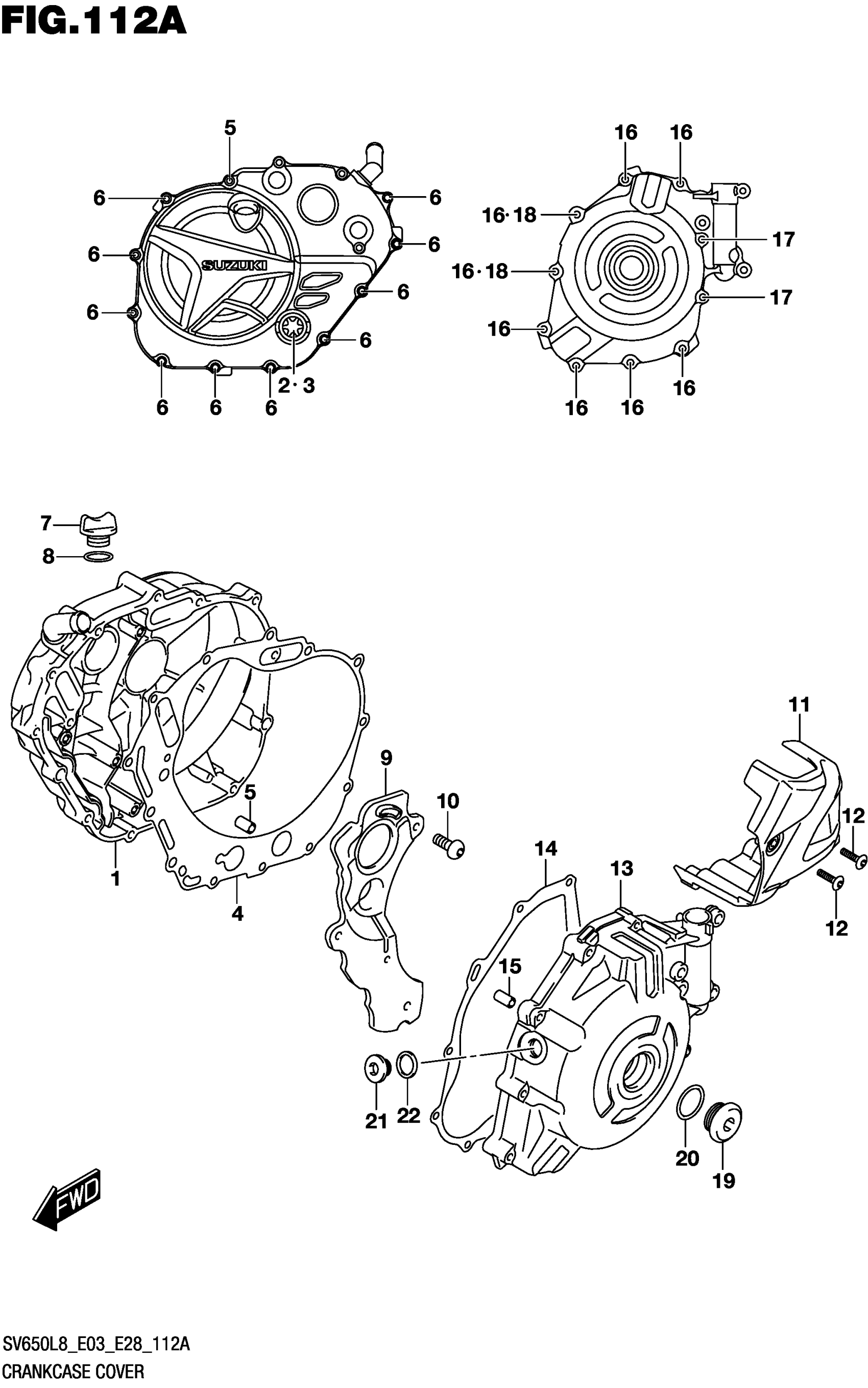

Suzuki SV650AL8 (2018) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-18K00

$379.27

2

.LENS,OIL LEVEL CHECK

11971-33210

$16.66

3

.CIRCLIP

08331-4130A

$2.95

4

.GASKET,CLUTCH COVER

11482-44H00

$17.17

5

PIN (8.5X18X2.3)

04211-09149

$1.64

6

BOLT (6X35)

09103-06214

$2.57

7

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

8

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

9

SEPARATOR,OIL

11343-44H01

$58.60

10

BOLT (6X12)

09106-06098

Unavailable

11

COVER,ENG SPROCKET

11360-18K00

$47.47

12

SCREW (6X25)

09139-06029

$4.84

13

COVER,MAGNETO

11351-44H10

$316.28

14

.GASKET,MAGNETO COVER

11483-19F00

$11.70

15

PIN (8.5X18X2.3)

04211-09149

$1.64

16

BOLT (6X35)

09103-06214

$2.57

17

BOLT (6X65)

09103-06239

$2.65

18

GASKET (5.8X13X1.2)

09168-06023

$2.01

19

PLUG

09259-26012

$10.16

20

O-RING (D:3.1,ID:22.7)

09280-22008

$2.10

21

PLUG (16X8)

09248-16012

$4.19

22

GASKET (16X22X2)

09168-16002

$1.89
