2018 Suzuki SV650AL8 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2018 Suzuki SV650AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

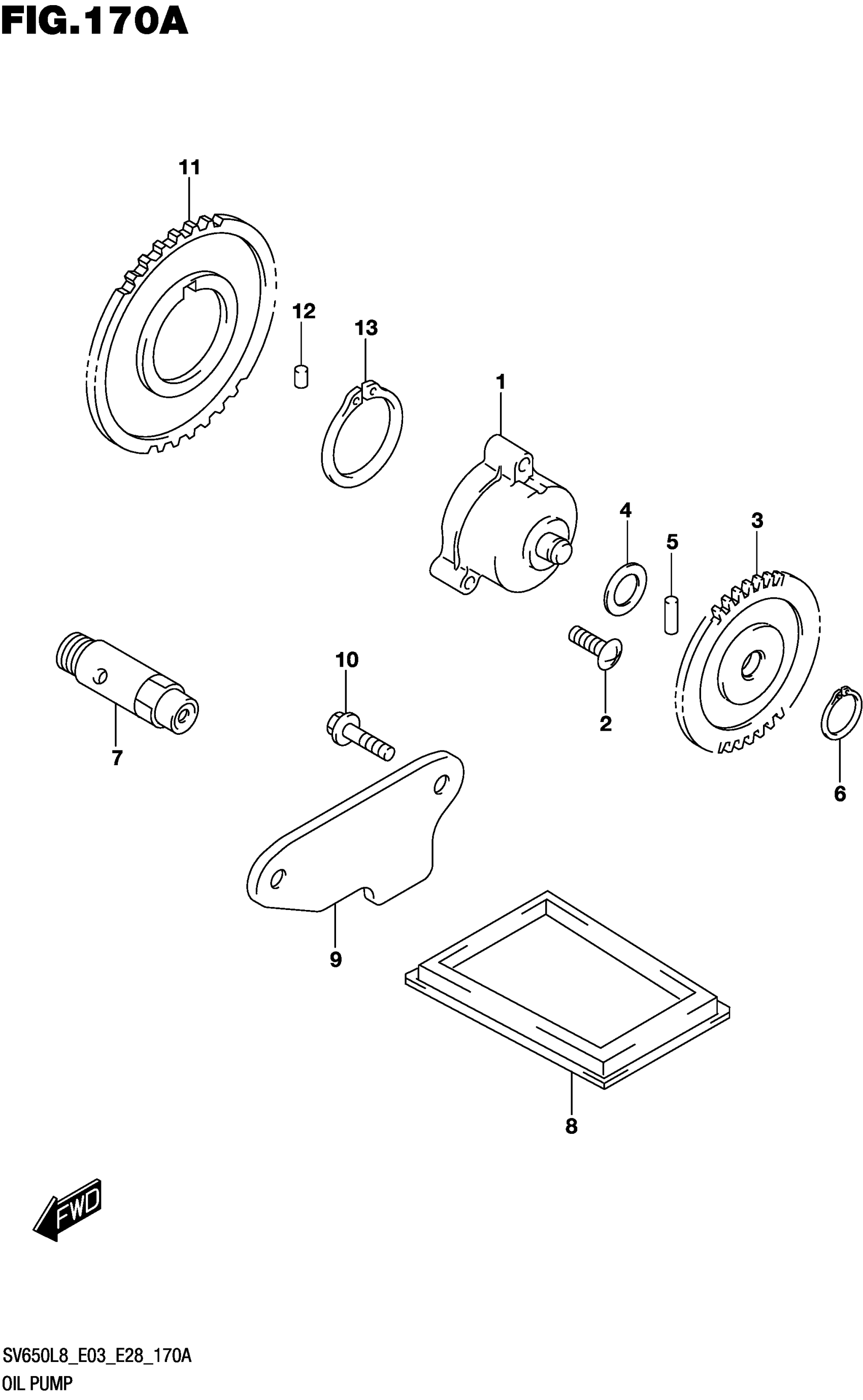

2018 Suzuki SV650AL8 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,ENG OIL

16400-20F00

1
Out of stock

2

BOLT (6X25)

07130-0625A

3
Out of stock

3

GEAR,ENG OIL PUMP DRIVEN (NT: | (NT:34)

16331-19F00

1
Out of stock

4

SHIM (10X18X0.5)

09181-10158

1
Out of stock

5

PIN (4X18.5)

09261-04001

1
Out of stock

6

CIRCLIP

08331-31109

1
Out of stock

7

VALVE ASSY,OIL RELIEF

16440-17C20

1
Out of stock

8

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

1
Out of stock

9

CAP,OIL STRAINER

16523-17G00

1
Out of stock

10

BOLT

07130-0612A

2
Out of stock

11

GEAR,ENG OIL PUMP DRIVE (NT:4 | (NT:45)

16321-19F00

1
Out of stock

12

PIN (6X6)

09261-06002

1
Out of stock

13

CLIP

08331-31383

1
Out of stock
