2007 Suzuki SV650 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2007 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

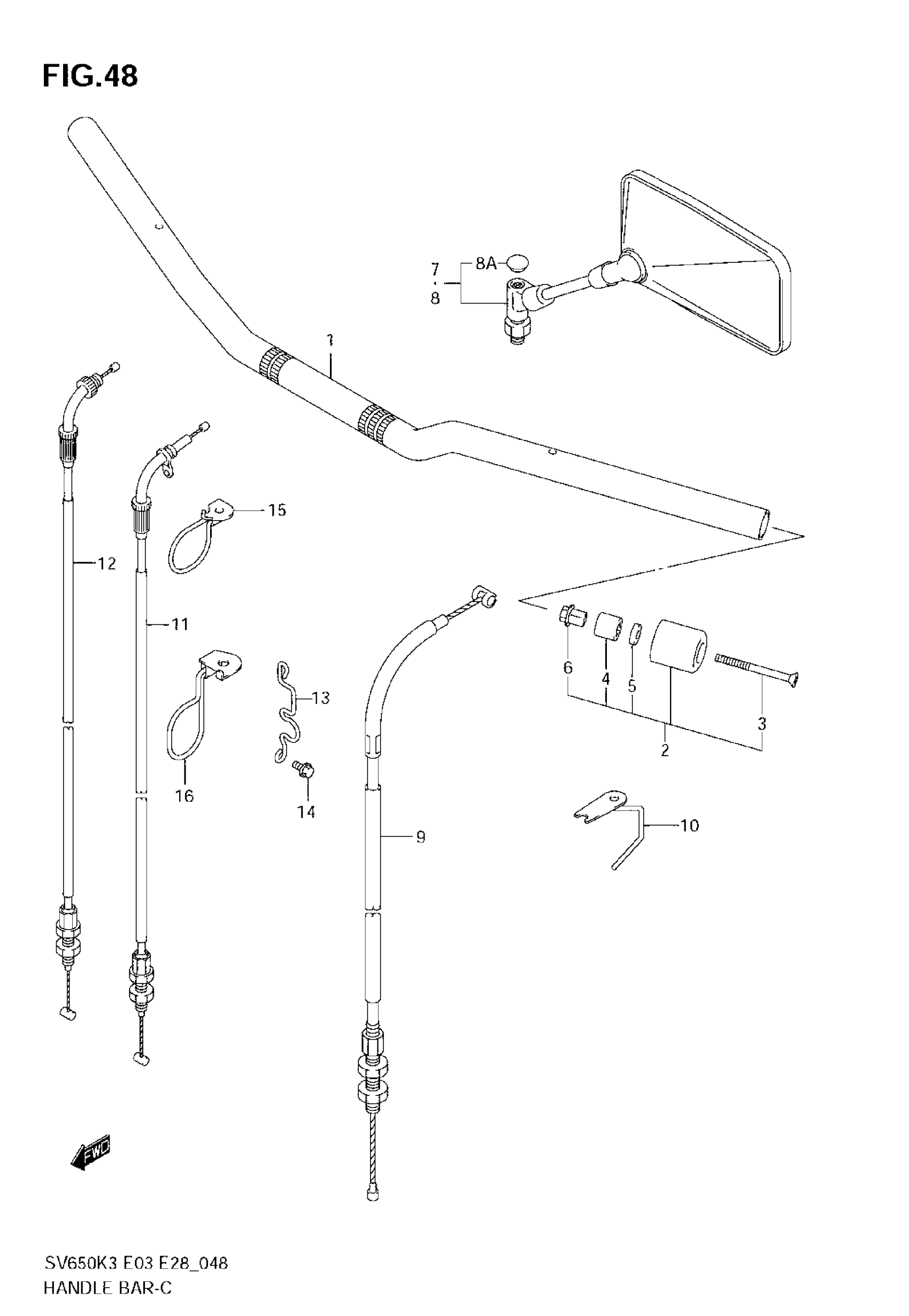

2007 Suzuki SV650 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-17G10

1
Out of stock

2

BALANCER SET,HN | Includes Item(s) 3 - 6 This part replaces 56200-16820.

56200-16823

2
Out of stock

3

2

$3.00

In stock

4

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

5

WASHER

09160-06131

2
Out of stock

6

NUT This part replaces 56273-10G00.

56273-10G10

2
Out of stock

7

MIRROR ASSY, REAR VIEW RH | MODEL K3/K4/K5/K6 This part replaces 56500-17G00.

56500-17G30

1
Out of stock

7

MIRROR ASSY, REAR VIEW RH | MODEL K7

56500-17G30

1
Out of stock

8

MIRROR ASSY,RR | MODEL K3/K4/K5/K6 This part replaces 56600-17G00.

56600-17G31

1
Out of stock

8

MIRROR ASSY,RR | MODEL K7; Includes Item(s) 8A This part replaces 56600-17G30.

56600-17G31

1
Out of stock

8A

CAP This part replaces 56524-28600.

56524-28601

2
Out of stock

9

CABLE ASSY, CLUTCH

58200-17G00

1
Out of stock

10

GUIDE, CLUTCH CABLE

58620-17G00

1
Out of stock

11

CABLE ASSY, THROTTLE NO.1

58300-16GA0

1
Out of stock

12

CABLE ASSY, THROTTLE NO.2

58300-16GB0

1
Out of stock

13

GUIDE, CABLE LH | MODEL K3/K4/K5/K6

58621-16GA0

1
Out of stock

13

GUIDE, CABLE LH | MODEL K7

58621-16GC0

1
Out of stock

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

15

GUIDE, THROTTLE CABLE NO.1 | MODEL K3/K4

58620-16G00

1
Out of stock

15

GUIDE, THROTTLE CABLE NO.1 | MODEL K5/K6/K7

58620-16G30

1
Out of stock

16

GUIDE, THROTTLE CABLE NO.2 | MODEL K3/K4

58620-16G10

1
Out of stock

16

GUIDE, THROTTLE CABLE NO.2 | MODEL K5/K6/K7

58620-16G20

1
Out of stock
