2007 Suzuki SV650 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2007 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

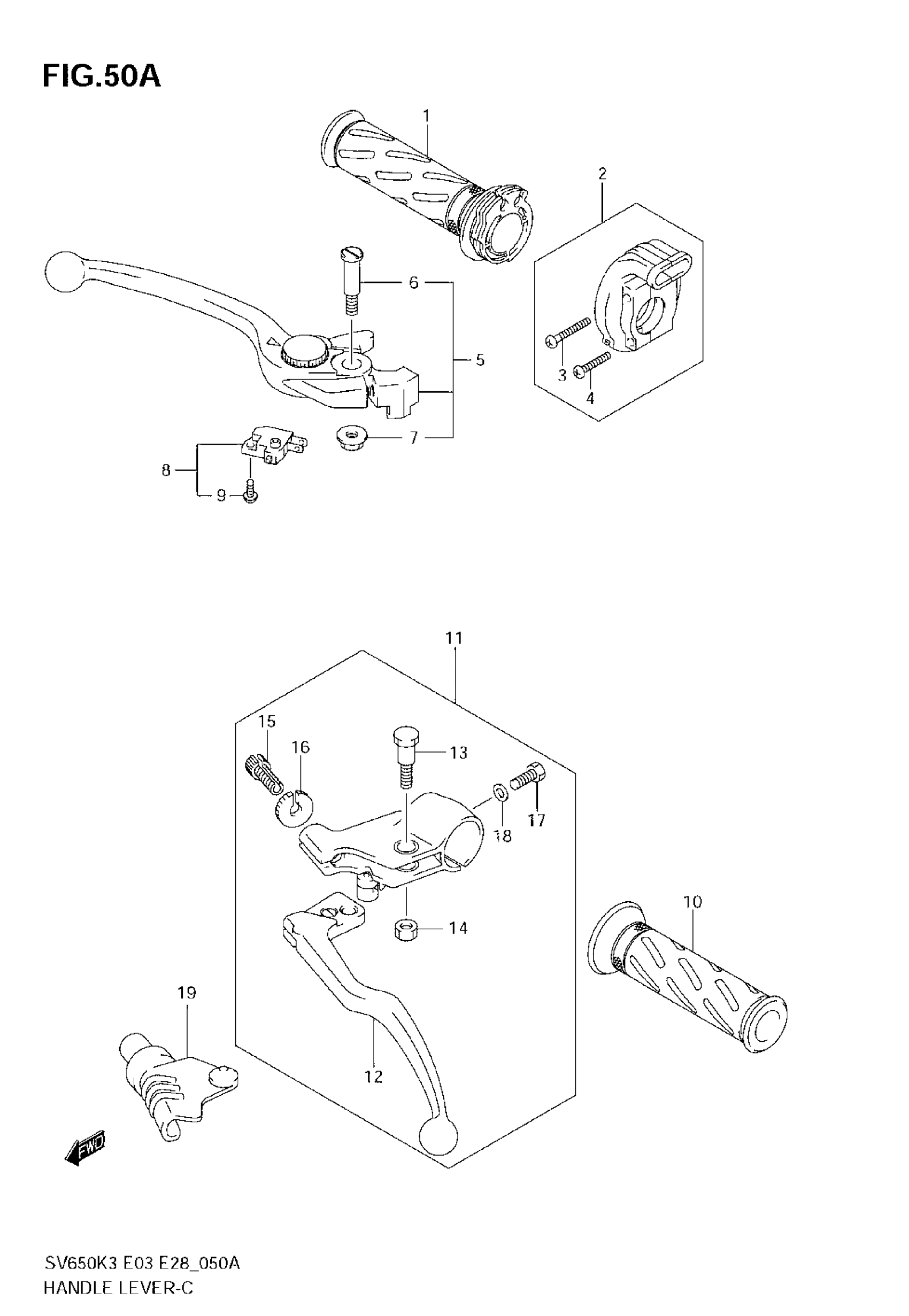

2007 Suzuki SV650 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE | SV650K7/AK7 This part replaces 57110-46E01.

57110-46E02

1
Out of stock

1

GRIP,THROTTLE | SV650SK7/SAK7 This part replaces 57110-45D02.

57110-45D03

1
Out of stock

2

CASE ASSY THROTTLE | SV650SK7/SAK7; Includes Item(s) 3 - 4

57100-14D00

1
Out of stock

3

SCREW | SV650SK7/SAK7

09125-05066

1
Out of stock

4

SCREW | SV650SK7/SAK7 This part replaces 02112-05203.

02112-0520B

1
Out of stock

5

LEVER ASSY, BRAKE | SV650K7/SK7

57300-44G00

1
Out of stock

5

LEVER ASSY, FRONT BRAKE | SV650AK7/SAK7; Includes Item(s) 6 - 7 This part replaces 57300-10G20.

57300-10G32

1
Out of stock

6

BOLT, PIVOT

57431-14G00

1
Out of stock

7

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

8

SWITCH ASSY,FR BRAKE | Includes Item(s) 9 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

9

SCREW

57465-17C00

1
Out of stock

10

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

1
Out of stock

11

LEVER ASSY,CLUT | SV650K7/AK7 This part replaces 57500-10D01.

57500-10D31

1
Out of stock

11

LEVER ASSY,CLUT | SV650SK7/SAK7; Includes Item(s) 12 - 18 This part replaces 57500-10D80.

57500-10DA1

1
Out of stock

12

LEVER

57620-27A31

1
Out of stock

13

BOLT, PIVOT

57531-14A00

1
Out of stock

14

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

15

ADJUSTER, CABLE

57441-11010

1
Out of stock

16

NUT, ADJUSTER

57442-11010

1
Out of stock

17

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

18

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

19

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

1
Out of stock
