2002 Suzuki SV650 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

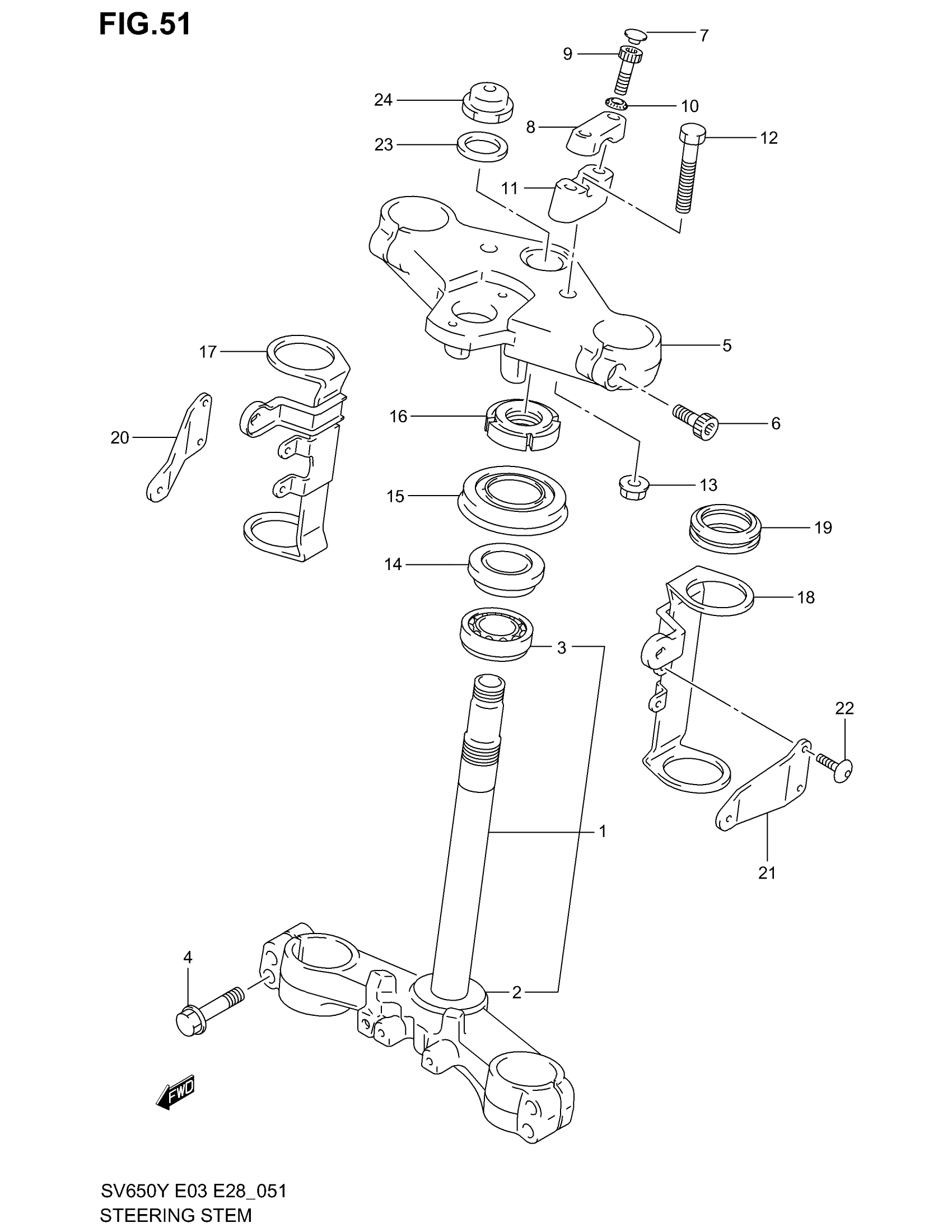

2002 Suzuki SV650 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-19F10

1
Out of stock

2

SEAL, STEERING LOWER

51644-12C00

1
Out of stock

3

BEARING (30X55X17)

09267-30010

1
Out of stock

4

BOLT

01550-08407

4
Out of stock

5

HEAD, STEERING STEM

51311-19F10

1
Out of stock

6

BOLT

51328-03FA0

2
Out of stock

7

CAP

09250-06011

4
Out of stock

8

HOLDER, HANDLE UPPER

56211-45C50

2
Out of stock

9

BOLT

07130-08307

4
Out of stock

10

WASHER

09164-08015

4
Out of stock

11

HOLDER, HANDLE LOWER

56221-03FA0

2
Out of stock

12

BOLT

51321-03FA0

2
Out of stock

13

NUT

08319-31107

2
Out of stock

14

BEARING (25X47X15)

09267-25009

1
Out of stock

15

DUST SEAL This part replaces 09285-34009.

09285-34013

1
Out of stock

16

NUT, STEERING STEM

51631-28000

1
Out of stock

17

BRACKET, HEADLAMP HOUSING RH This part replaces 51530-19F00.

51530-19F10

1
Out of stock

18

BRACKET, HEADLAMP HOUSING LH This part replaces 51540-19F00.

51540-19F10

1
Out of stock

19

DAMPER,HEADLAMP This part replaces 51553-38C00.

51553-38C01

4
Out of stock

20

STAY, HEADLAMP HOUSING RH

51851-19F00

1
Out of stock

21

STAY, HEADLAMP HOUSING LH

51861-19F00

1
Out of stock

22

SCREW (6X12)

09139-06027

4
Out of stock

23

WASHER

51356-10D03

1

$8.47

In stock

24

NUT

51353-28A10

1
Out of stock
