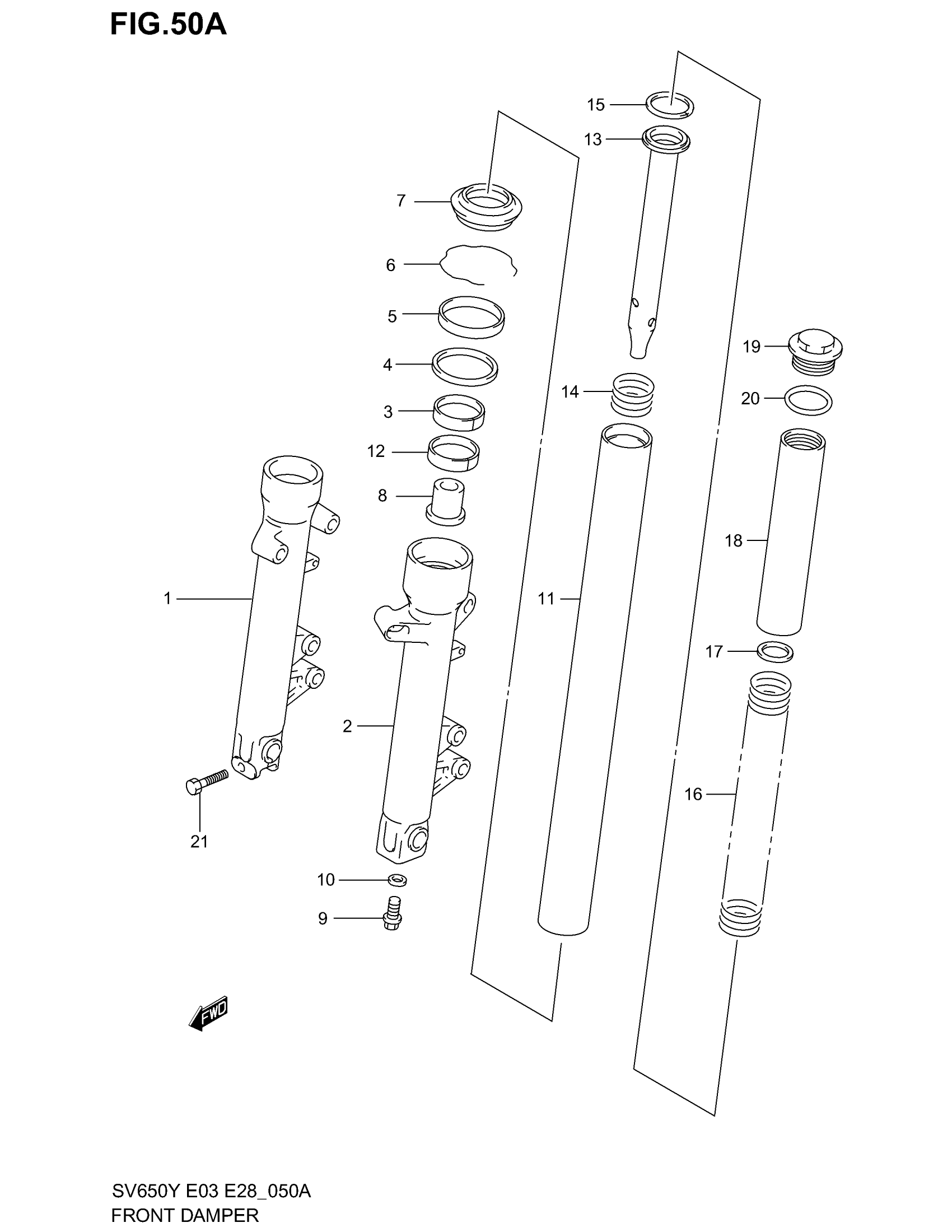

Suzuki SV650 (2002) FRONT FORK DAMPER (MODEL K1) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH | SV650K1 E3

51103-20F50

Unavailable

DAMPER ASSY, FRONT FORK LH | SV650K1 E3

51104-20F50

Unavailable

DAMPER ASSY, FRONT FORK RH | SV650SK1 E28

51103-20F30

Unavailable

DAMPER ASSY, FRONT FORK LH | SV650SK1 E28; Includes Item(s) 1 - 21 This part replaces 51104-20F30.

51104-20F50

Unavailable

1

TUBE, OUTER RH

51130-20F30

Unavailable

2

TUBE, OUTER LH This part replaces 51140-20F00.

51140-20FA0

Unavailable

3

METAL, SLIDE

51167-26E10

$23.09

4

WASHER

51158-05A00

$5.34

5

SEAL, OIL

51153-14F00

$19.48

6

CIRCLIP

51156-49440

$4.75

7

SEAL, DUST

51173-14F00

$21.12

8

PIECE, OIL LOCK | SV650K1 E3 This part replaces 51195-20F50.

51195-33D10

$29.57

8

PIECE, OIL LOCK | SV650SK1 E28

51195-20F30

Unavailable

9

BOLT

51147-16510

$4.09

10

WASHER

51148-41310

$2.14

11

TUBE, INNER

51110-20F00

Unavailable

12

PISTON

51121-33D10

$17.78

13

CYLINDER | SV650K1 E3

51146-20F50

Unavailable

13

CYLINDER | SV650SK1 E28 This part replaces 51146-20F30.

51146-20F50

Unavailable

14

SPRING

51177-06C00

$14.73

15

RING, PISTON

51196-31F00

$6.63

16

SPRING, FRONT | SV650K1 E3 This part replaces 51171-20F50.

51171-19F00

Unavailable

16

SPRING, FRONT | SV650SK1 E28

51171-20F30

Unavailable

17

WASHER

51356-10D03

$8.47

18

SPACER, SPRING | SV650K1 E3 This part replaces 51176-20F50.

51176-20F20

Unavailable

18

SPACER, SPRING | SV650SK1 E28

51176-20F30

Unavailable

19

CAP

51351-10D00

$61.78

20

O RING

09280-32001

$2.07

21

BOLT, RH

01550-08457

$2.63
