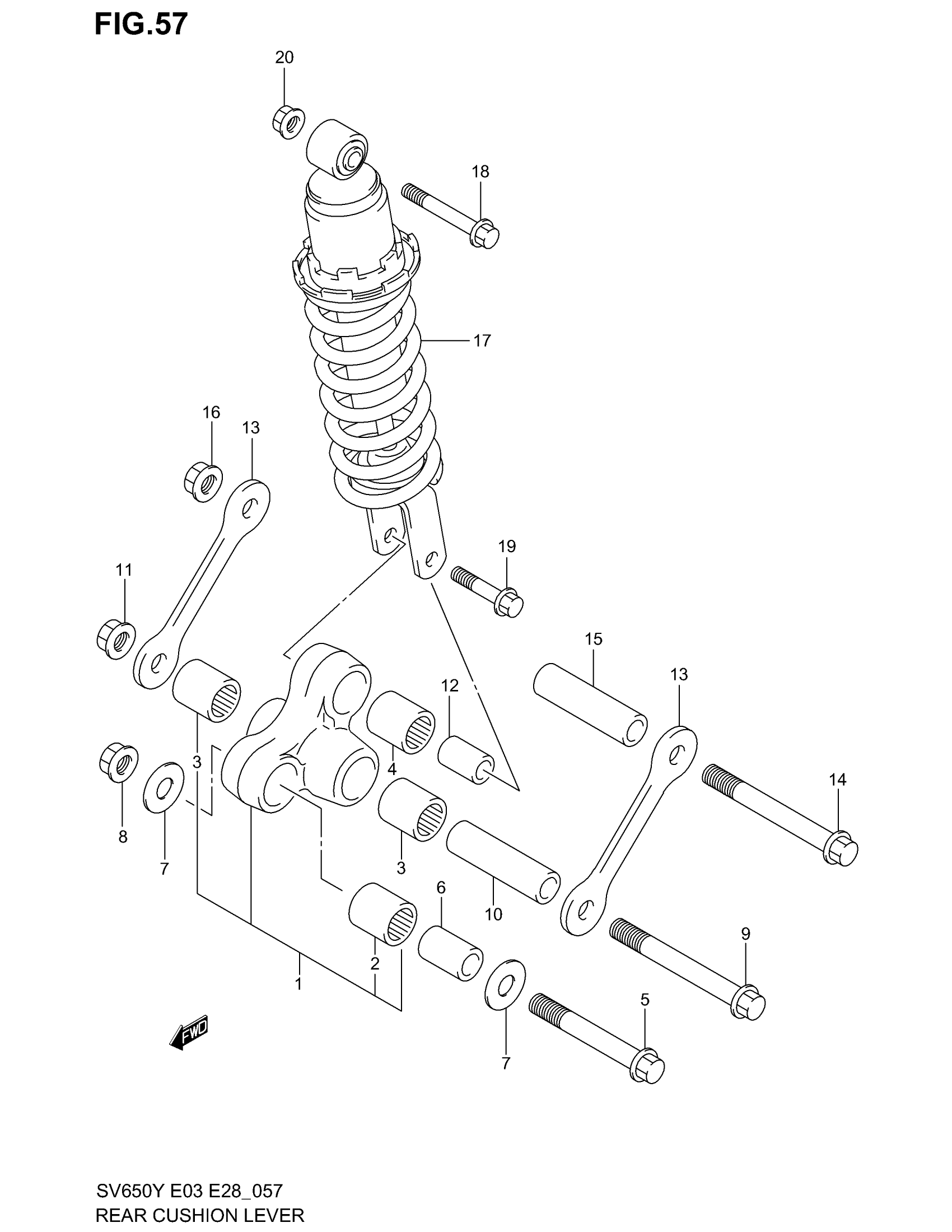

Find the part on the Rear Cushion Lever diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki SV650 Rear Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-19880

1
Out of stock

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

1
Out of stock

3

BEARING, CENTER (20X27X23.5)

09263-20071

2
Out of stock

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

1
Out of stock

5

BOLT, RR CUSHION LEVER FR

62658-19F00

1
Out of stock

6

SPACER,RR CUSHION LEVER FR (1

62684-12C00

1
Out of stock

7

WASHER

09160-12037

2
Out of stock

8

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

9

BOLT, CENTER (12X96)

09103-12034

1
Out of stock

10

SPACER, CENTER (12X20X68)

62626-19F00

1
Out of stock

11

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

12

SPACER, REAR (10X17X30)

62684-40A10

1
Out of stock

13

ROD, REAR CUSHION

62641-20F00

2
Out of stock

14

BOLT, ROD (12X96)

09103-12034

1
Out of stock

15

SPACER, ROD (12X20X68)

62626-19F00

1
Out of stock

16

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

17

ABSORBER ASSY, REAR SHOCK (YELLOW) | SV650X/Y This part replaces 62100-20F10-163.

62100-20F11-163

1
Out of stock

17

ABSORBER ASSY, REAR SHOCK (YELLOW) | SV650SX/SY E28

62100-20F00-163

—
Out of stock

17

ABSORBER ASSY, REAR SHOCK (YELLOW) | SV650K1

62100-20F11-163

1
Out of stock

17

ABSORBER ASSY, REAR SHOCK (YELLOW) | SV650K2

62100-20F40-163

1
Out of stock

17

ABSORBER ASSY, REAR SHOCK (YELLOW) | SV650SK1/SK2 E28

62100-20F01-163

—
Out of stock

17

ABSORBER ASSY, REAR SHOCK (YELLOW) | SV650SK1/SK2 E3

62100-20F50-163

1
Out of stock

18

BOLT, UPPER (10X70)

09103-10033

1
Out of stock

19

BOLT, LOWER (10X48)

09103-10126

1
Out of stock

20

NUT

08319-31107

1
Out of stock
