2002 Suzuki SV650 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

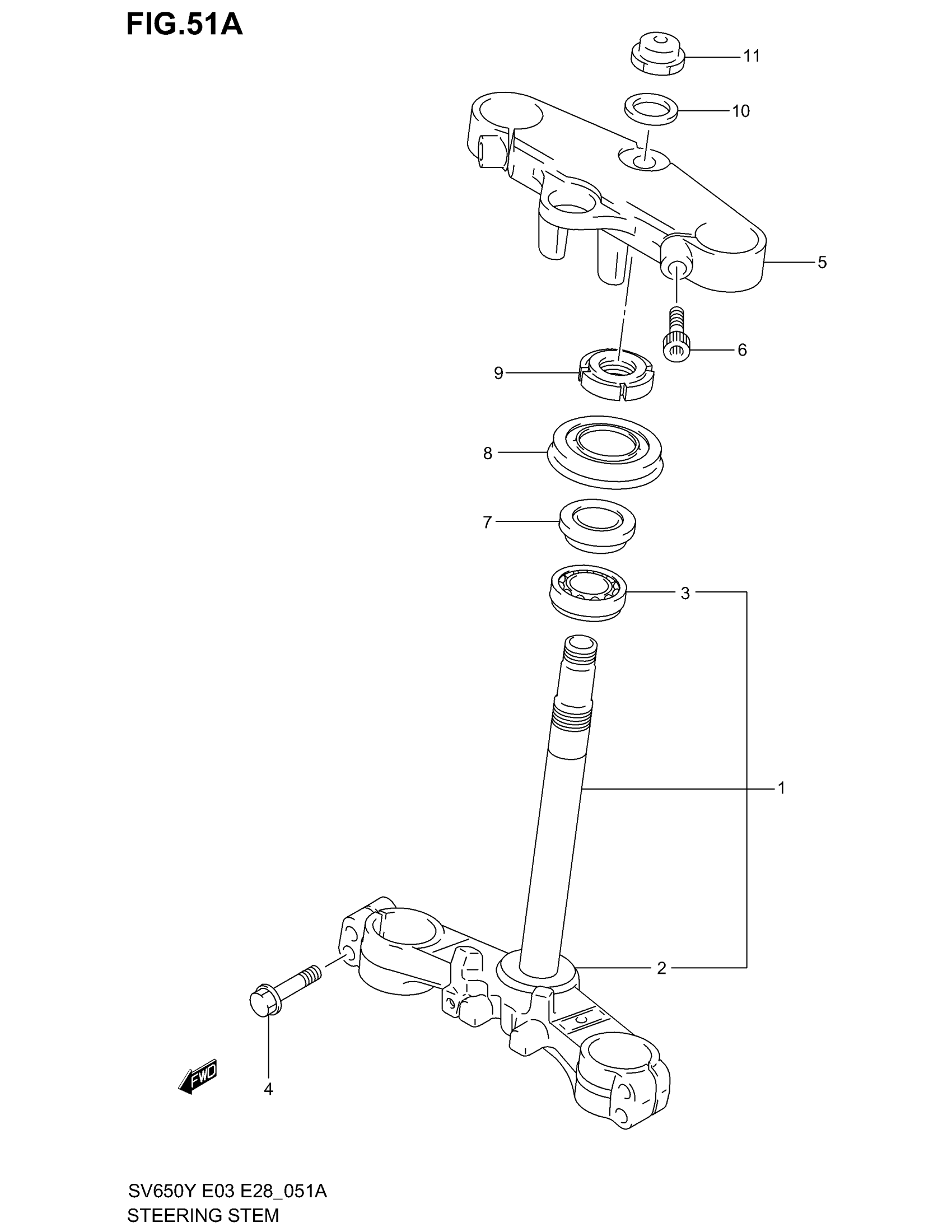

2002 Suzuki SV650 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | NOT FOR US MARKET; Includes Item(s) 2 - 3

51410-19F00

—
Out of stock

2

SEAL, STEERING LOWER | NOT FOR US MARKET

51644-12C00

1
Out of stock

3

BEARING (30X55X17) | NOT FOR US MARKET

09267-30010

1
Out of stock

4

BOLT | NOT FOR US MARKET

01550-08407

4
Out of stock

5

HEAD, STEERING STEM | NOT FOR US MARKET

51311-19F00

1
Out of stock

6

BOLT | NOT FOR US MARKET

51328-03FA0

2
Out of stock

7

BEARING (25X47X15) | NOT FOR US MARKET

09267-25009

1
Out of stock

8

DUST SEAL | NOT FOR US MARKET This part replaces 09285-34009.

09285-34013

1
Out of stock

9

NUT, STEERING STEM | NOT FOR US MARKET

51631-28000

1
Out of stock

10

1

$8.47

In stock

11

NUT | NOT FOR US MARKET

51353-28A10

1
Out of stock
