2002 Suzuki SV650 OIL Pump / Fuel Pump Diagram

← All diagrams

Find the part on the OIL Pump / Fuel Pump diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

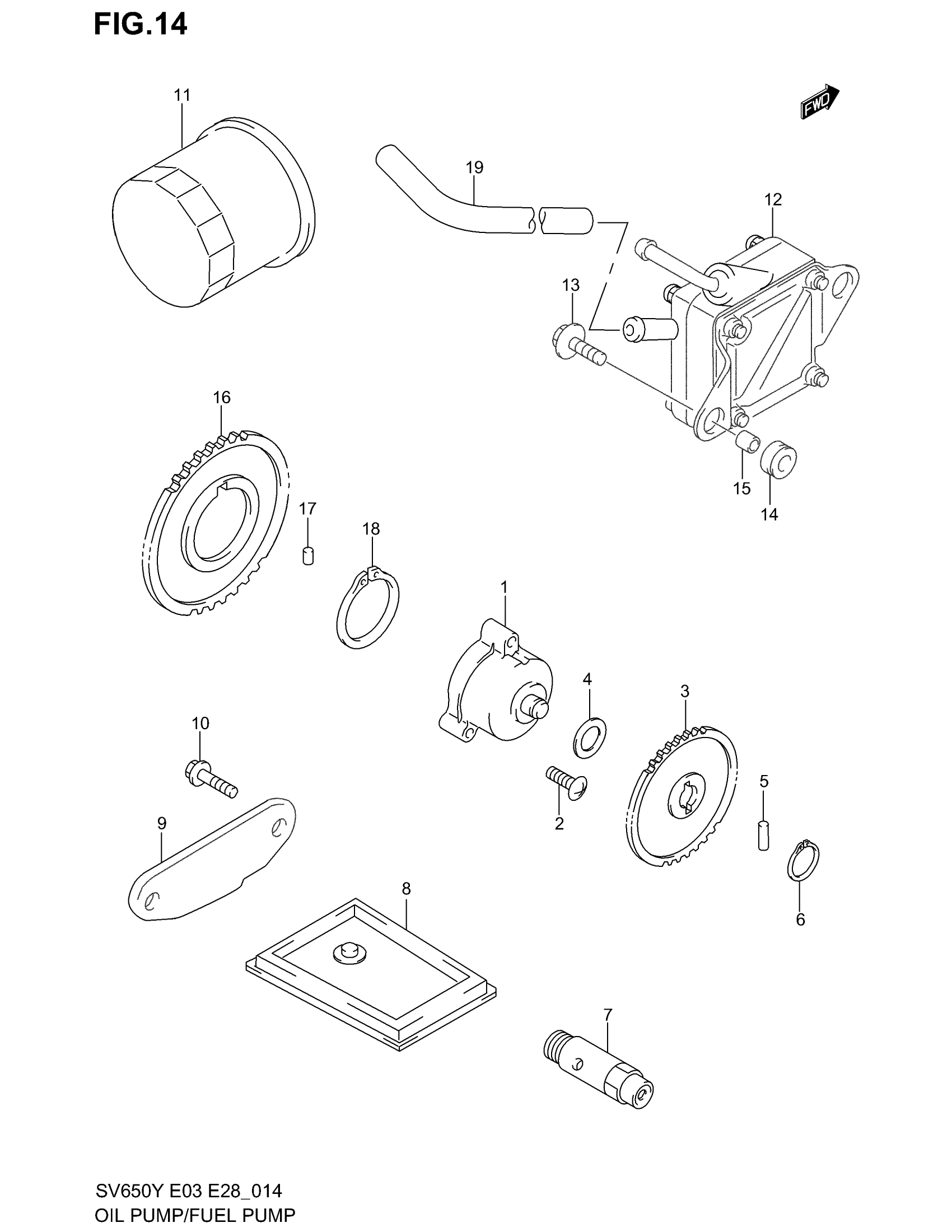

2002 Suzuki SV650 OIL Pump / Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,ENG OIL

16400-20F00

1
Out of stock

2

SCREW This part replaces 02112-06253.

02112-0625A

3
Out of stock

3

GEAR, OIL PUMP DRIVEN (NT:34) | MODEL X/Y/K1

16331-48E00

1
Out of stock

3

GEAR,ENG OIL PUMP DRIVEN (NT: | MODEL K2

16331-19F00

1
Out of stock

4

SHIM

09181-10158

1
Out of stock

5

PIN (4X18.5)

09261-04001

1
Out of stock

6

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

7

VALVE ASSY,OIL RELIEF

16440-17C20

1
Out of stock

8

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

1
Out of stock

9

CAP, OIL STRAINER

16523-48E00

1
Out of stock

10

BOLT This part replaces 01547-06123.

01547-0612B

2
Out of stock

11

FILTER, ENGINE OIL This part replaces 16510-34E00.

16510-07J00

1
Out of stock

12

PUMP ASSY,FUEL This part replaces 15100-19F00.

15100-19F01

1
Out of stock

13

BOLT, FUEL PUMP

09116-06115

2
Out of stock

14

CUSHION, FUEL PUMP

09320-09036

2
Out of stock

15

SPACER, FUEL PUMP

09180-06257

2
Out of stock

16

GEAR,ENG OIL PUMP DRIVE (NT:4

16321-19F00

1
Out of stock

17

ROLLER (OD:6,L:6)

09261-06002

1
Out of stock

18

CLIP

08331-31383

1
Out of stock

19

HOSE,5X10X600 | L:600->150 This part replaces 09355-50105-600.

44421-13ER0

1
Out of stock
