2002 Suzuki SV650 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

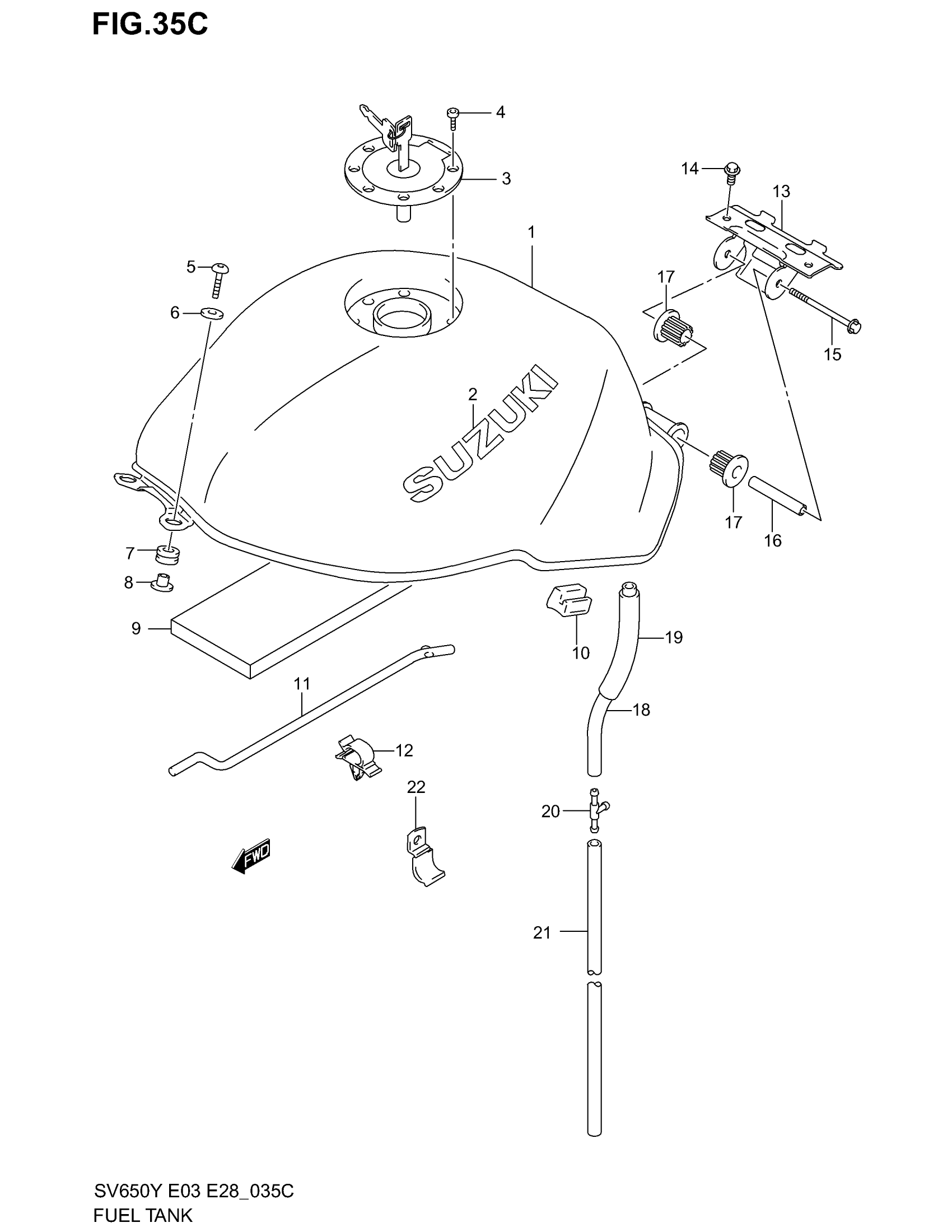

2002 Suzuki SV650 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL This part replaces 44100-20F00-Y7L.

44110-19F00-13L

1
Out of stock

1

TANK ASSY,FUEL This part replaces 44100-20F00-Y9H.

44110-19F00-13L

1
Out of stock

1

TANK ASSY, FUEL (BLUE)

44100-20F00-YC2

1
Out of stock

1

TANK ASSY, FUEL (SILVER)

44100-20F00-YD8

1
Out of stock

1

TANK ASSY, FUEL (BLACK) | E33

44100-20F10-Y7L

1
Out of stock

1

TANK ASSY, FUEL (YELLOW) | E33

44100-20F10-Y9H

1
Out of stock

1

TANK ASSY, FUEL (BLUE) | E33

44100-20F10-YC2

1
Out of stock

1

TANK ASSY, FUEL (SILVER) | E33; Includes Item(s) 2 - 2

44100-20F10-YD8

1
Out of stock

2

EMBLEM, FUEL TANK (GRAY) | FOR Y7L,YC2

68111-42E20-1ZY

2
Out of stock

2

EMBLEM, FUEL TANK (GRAY) | FOR Y9H,YD8

68111-42E20-20G

2
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

1
Out of stock

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

1
Out of stock

4

BOLT

09106-05017

4
Out of stock

5

SCREW, FRONT

09139-06029

2
Out of stock

6

WASHER

09160-06054

2
Out of stock

7

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

2
Out of stock

8

CUSHION, LOWER

44512-19F00

2
Out of stock

9

SHIELD, TANK FRONT

44194-19F00

1
Out of stock

10

CUSHION,FUEL TA This part replaces 44559-19F00.

44559-19F01

2
Out of stock

11

STAY, FUEL TANK

44574-33E01

1
Out of stock

12

CLAMP

09403-05310

1
Out of stock

13

BRACKET, FUEL TANK REAR

44550-19F10

1
Out of stock

14

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

15

BOLT This part replaces 01550-08853.

01550-0885B

1
Out of stock

16

SPACER

44561-19F00

1
Out of stock

17

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

2
Out of stock

18

HOSE,WATER DRAI This part replaces 44423-19F00.

44423-19F01

1
Out of stock

19

PROTECTOR (L:600->140)

09351-14152-600

1
Out of stock

20

JOINT, 3 WAY

09367-08004

1

$4.06

In stock

21

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

1
Out of stock

22

CLAMP, DRAIN HOSE

44339-19F00

1
Out of stock
