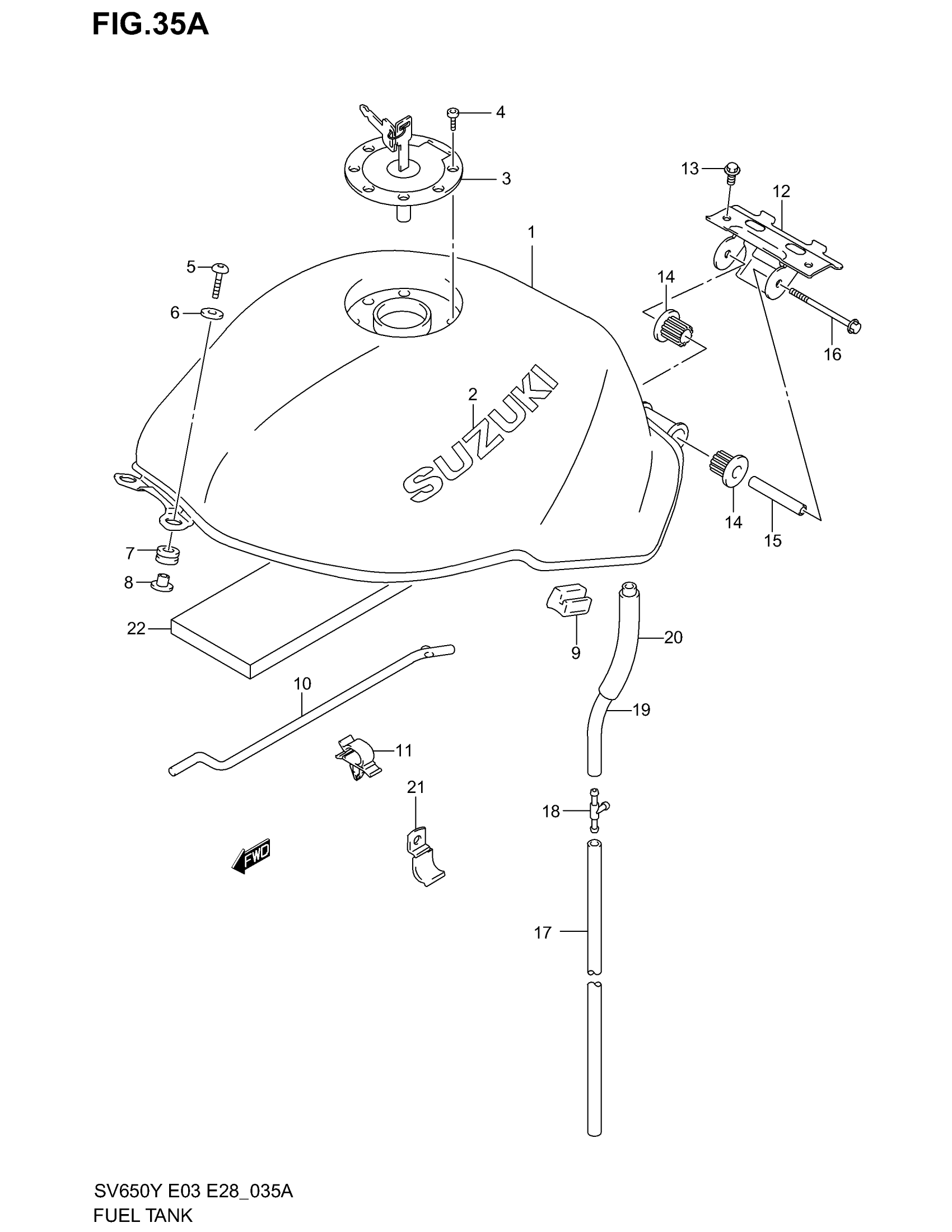

Find the part on the Fuel Tank diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki SV650 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL This part replaces 44100-19F40-Y7M.

44100-19F60-Y7M

1
Out of stock

1

TANK ASSY,FUEL This part replaces 44100-19F40-YC2.

44100-19F60-YC2

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-19F50-Y7M.

44100-19F70-Y7M

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 2 This part replaces 44100-19F50-YC2.

44100-19F70-YC2

1
Out of stock

2

EMBLEM | FOR YC2 This part replaces 68111-12C00-1ZY.

68111-12C30-1ZY

2
Out of stock

2

EMBLEM | FOR Y7M This part replaces 68111-12C00-20G.

68111-12C30-20G

2
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

1
Out of stock

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

1
Out of stock

4

BOLT (L:20)

09106-05017

4
Out of stock

5

SCREW (6X25)

09139-06029

2
Out of stock

6

WASHER (6.5X22X1.6)

09160-06054

2
Out of stock

7

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

2
Out of stock

8

CUSHION, FRONT

44512-19F00

2
Out of stock

9

CUSHION,FUEL TA This part replaces 44559-19F00.

44559-19F01

2
Out of stock

10

STAY, FUEL TANK

44574-33E01

1
Out of stock

11

CLAMP

09403-05310

1
Out of stock

12

BRACKET, FUEL TANK REAR

44550-19F10

1
Out of stock

13

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

14

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

2
Out of stock

15

SPACER, FUEL TANK REAR

44561-19F00

1
Out of stock

16

BOLT This part replaces 01550-08853.

01550-0885B

1
Out of stock

17

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

1
Out of stock

18

JOINT, 3 WAY

09367-08004

1

$4.06

In stock

19

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

1
Out of stock

20

PROTECTOR (L:600->140)

09351-14152-600

1
Out of stock

21

CLAMP, DRAIN HOSE

44339-19F00

1
Out of stock

22

SHIELD, TANK FRONT

44194-19F00

1
Out of stock
