2005 Suzuki SV1000 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2005 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

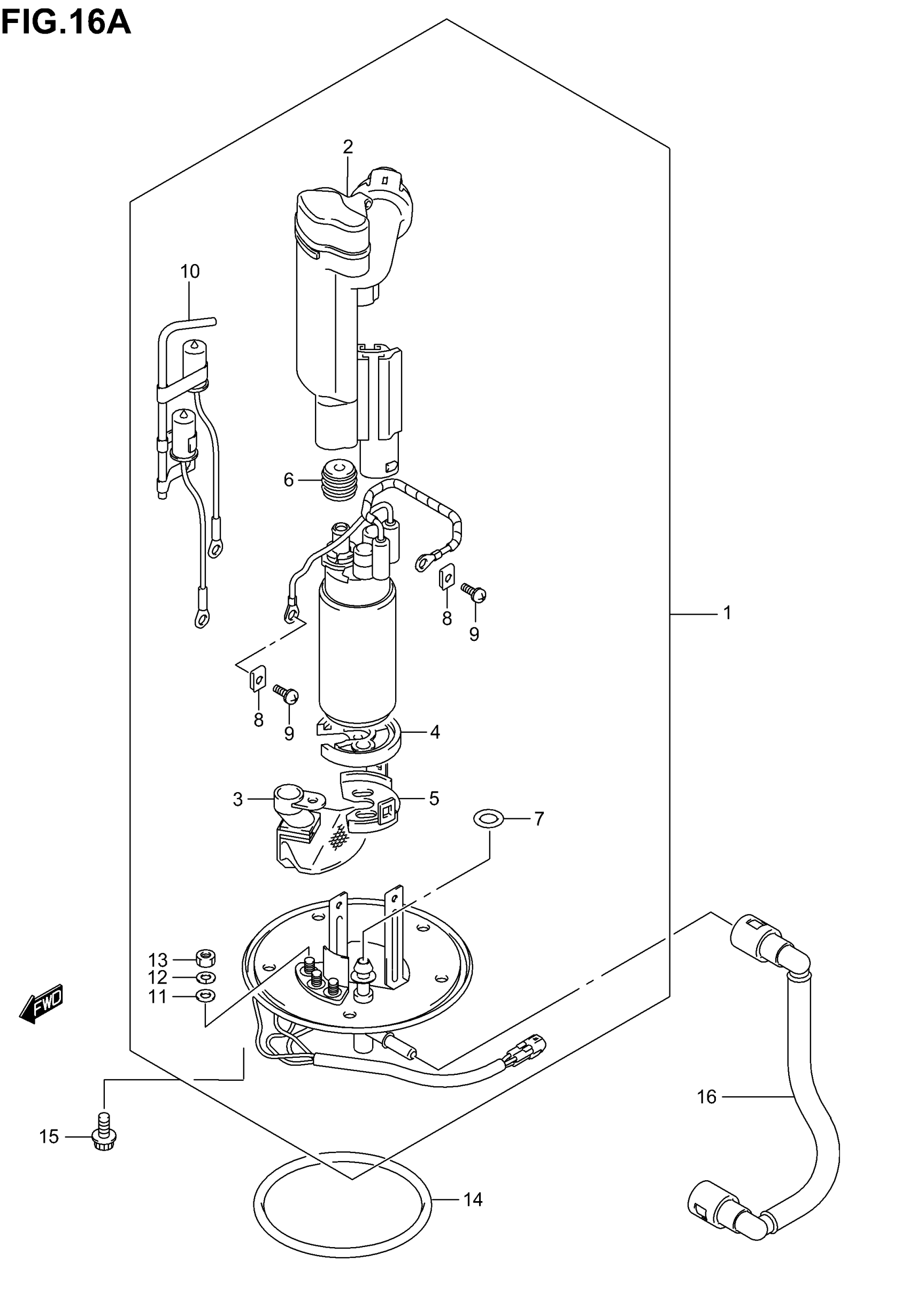

2005 Suzuki SV1000 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 13

15100-16G00

1
Out of stock

2

FILTER ASSY, FUEL

15410-16G00

1
Out of stock

3

STRAINER, FUEL PUMP

15420-24FB0

1
Out of stock

4

CUSHION, FUEL PUMP

15111-35F00

1
Out of stock

5

HOLDER, FUEL PUMP

15112-42F00

1
Out of stock

6

BUSH, FUEL PUMP

15114-35F00

1
Out of stock

7

O RING

15113-35F00

1
Out of stock

8

NUT

15115-35F00

2
Out of stock

9

SCREW

15116-35F10

2
Out of stock

10

THERMISTOR

15170-16G00

1
Out of stock

11

WASHER

15171-35F00

3
Out of stock

12

SPRING WASHER

15172-35F00

3
Out of stock

13

NUT

15173-35F00

3
Out of stock

14

O-RING

15201-35F00

1
Out of stock

15

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

5
Out of stock

16

HOSE COMP, FUEL This part replaces 15810-16G00.

15810-16G01

1
Out of stock
