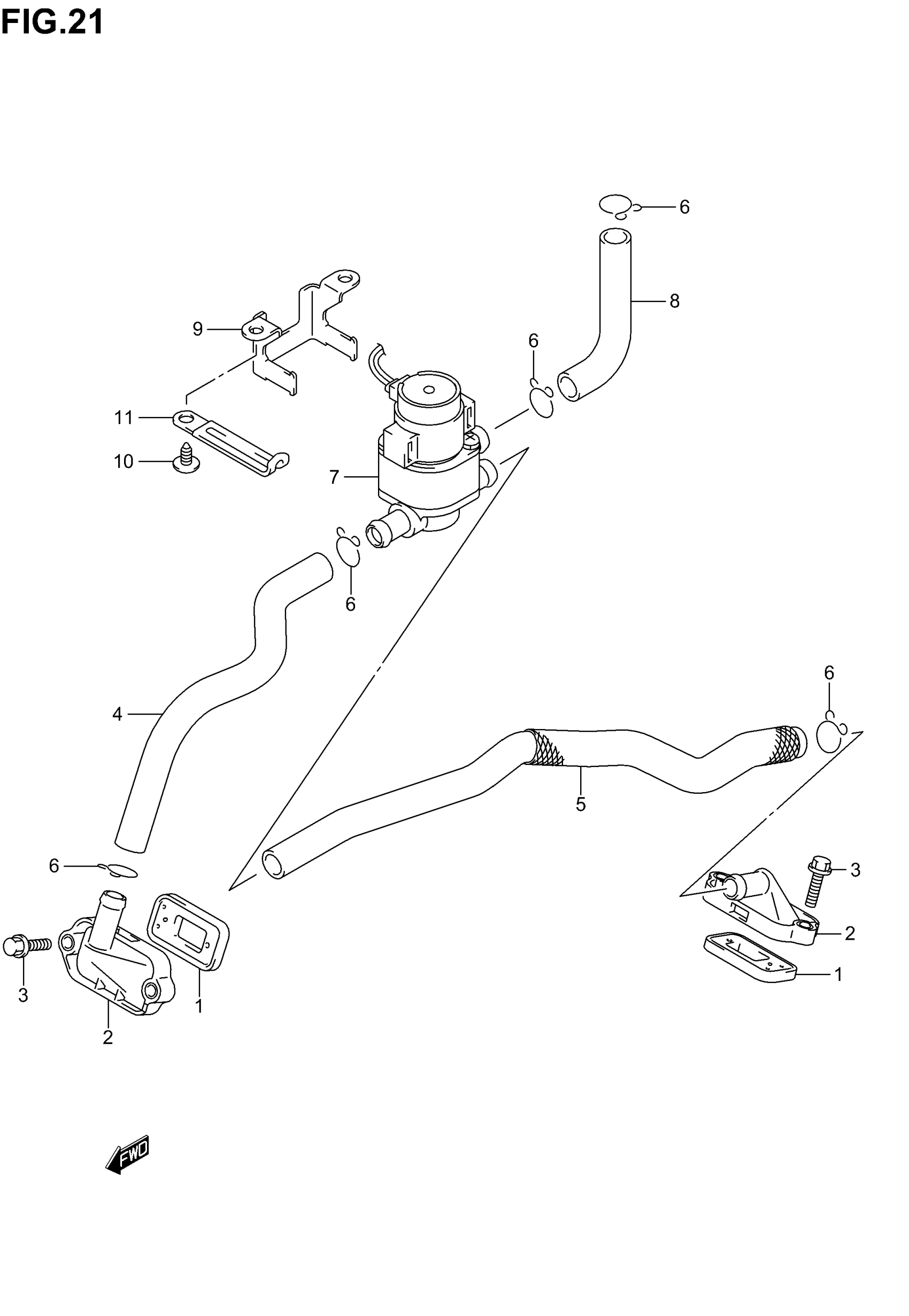

Suzuki SV1000 (2005) 2ND AIR Diagram

#

Description
Price

1

.VALVE ASSY,2ND AIR REED

18450-06G00

$40.40

2

COVER,2ND AIR

18531-06G01

$12.63

3

BOLT

09103-06201

$2.54

4

HOSE, 2ND AIR VALVE FRONT

18461-16G00

Unavailable

5

HOSE, 2ND AIR VALVE REAR

18471-16G00

Unavailable

6

CLIP

09401-15101

$2.28

7

VALVE ASSY, AIR CUT

18510-06G00

Unavailable

8

HOSE, 2ND AIR CLEANER

18711-06G00

$12.35

9

BRACKET, 2ND AIR VALVE

18610-06G00

$11.18

10

SCREW

03542-06123

Unavailable

11

CLAMP

09404-06429

$1.82
