2005 Suzuki SV1000 Fuel Delivery Pipe Diagram

← All diagrams

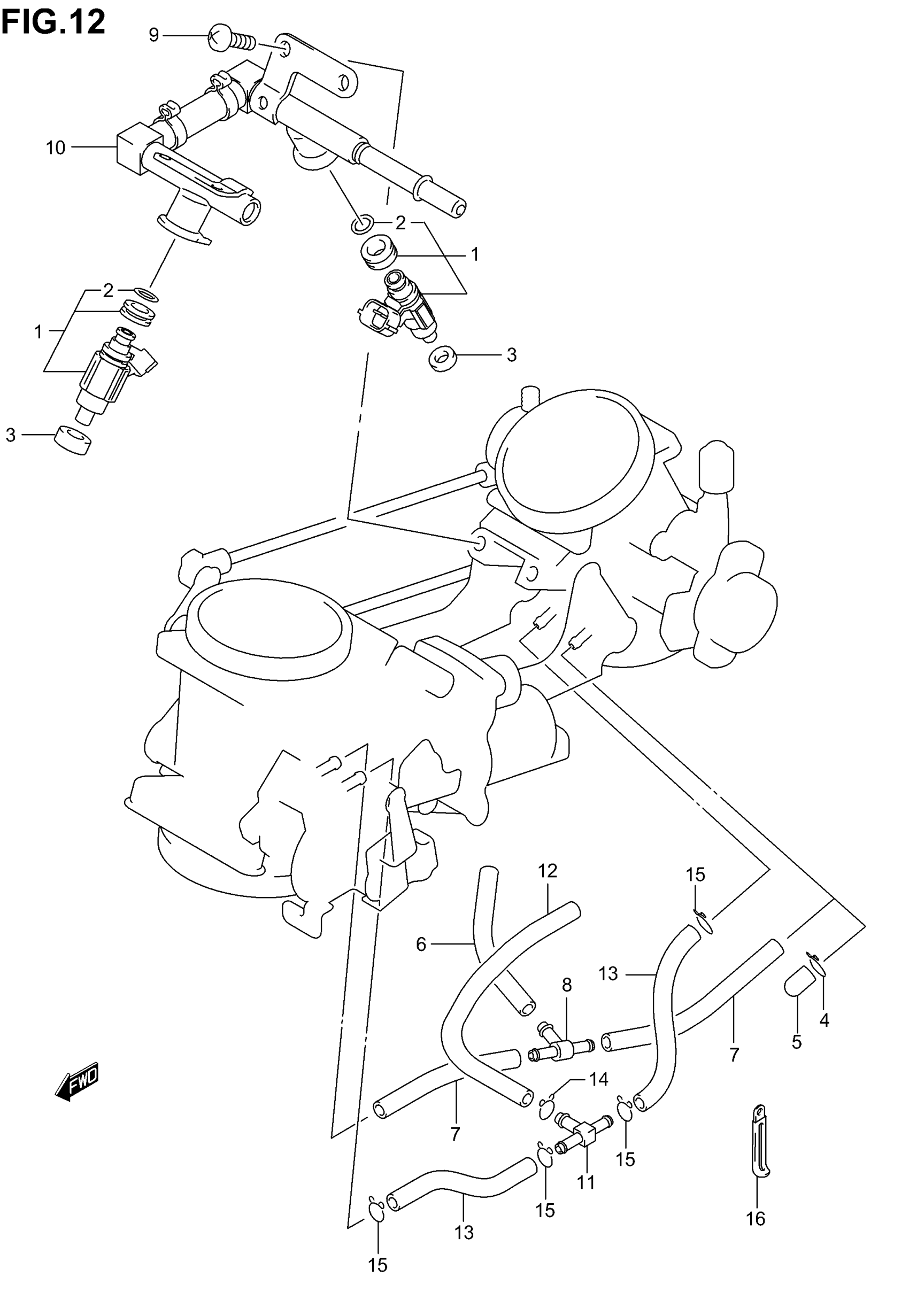

Find the part on the Fuel Delivery Pipe diagram for your 2005 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki SV1000 Fuel Delivery Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INJECTOR ASSY | Includes Item(s) 2

15710-16G00

2
Out of stock

2

O RING

15717-16G00

2
Out of stock

3

SEAL

13672-33E00

2
Out of stock

4

CLIP

09401-06101

2
Out of stock

5

CAP

13274-84000

2
Out of stock

6

HOSE(3.2X7.4X22 | L:225!165 This part replaces 13681-39F00-225.

13681-39F01-225

1
Out of stock

7

HOSE(3.2X7.4X22 | L:225!70 This part replaces 13681-39F00-225.

13681-39F01-225

2
Out of stock

8

3WAY,VACUUM HOSE

13685-02FA0

1
Out of stock

9

SCREW

13602-06128

4
Out of stock

10

DELIVERY PIPE ASSY

15730-16G00

1
Out of stock

11

NIPPLE | E33

13685-04F10

1
Out of stock

12

HOSE | E33

13683-16G11

1
Out of stock

13

HOSE(3.2X7.4X22 | E33 L:225!70 This part replaces 13681-39F00-225.

13681-39F01-225

2
Out of stock

14

CLIP (ID:9.4,H:8) | E33

09401-09403

1
Out of stock

15

CLIP | E33

09401-06101

4
Out of stock

16

CLAMP | E33

09404-06429

1
Out of stock
