2005 Suzuki SV1000 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2005 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

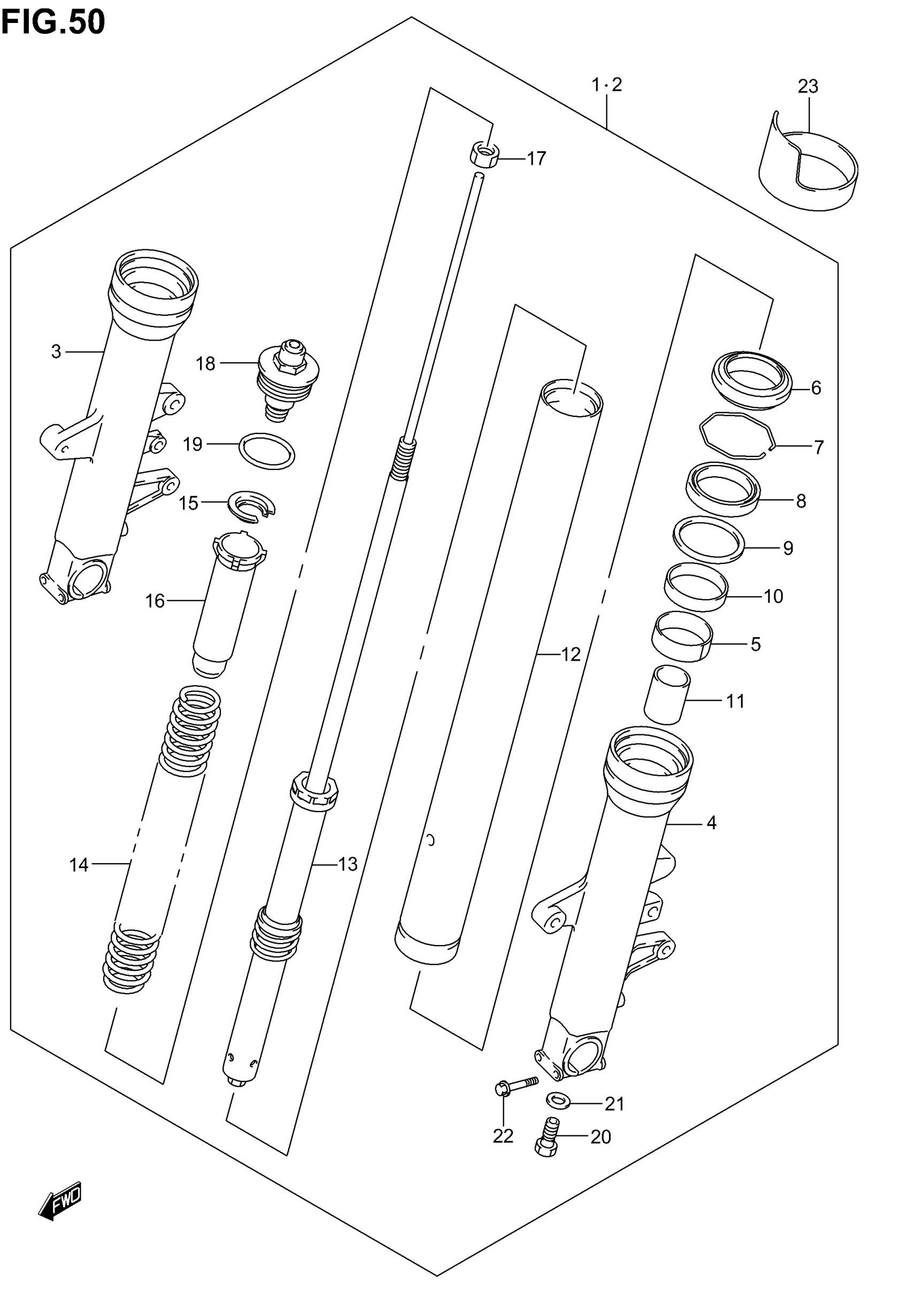

2005 Suzuki SV1000 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH | SV1000SK3

51103-16G30

1
Out of stock

1

DAMPER ASSY, FRONT FORK RH | SV1000K3/K4

51103-16G00

1
Out of stock

1

DAMPER ASSY, FRONT FORK RH | SV1000SK4

51103-16G40

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | SV1000SK3

51104-16G30

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | SV1000K3/K4

51104-16G00

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | SV1000SK4; Includes Item(s) 3 - 22

51104-16G40

1
Out of stock

3

TUBE, OUTER RH

51130-16G00

1
Out of stock

4

TUBE, OUTER LH

51140-16G00

1
Out of stock

5

BUSH, SLIDE

51121-37F00

2
Out of stock

6

SEAL, DUST

51173-42F00

2
Out of stock

7

RING, SNAP

51156-27C00

2
Out of stock

8

SEAL, OIL

51153-42F00

2
Out of stock

9

WASHER

51158-27C00

2
Out of stock

10

BUSH, GUIDE

51167-37F00

2
Out of stock

11

PIECE, OIL LOCK

51195-16G20

2
Out of stock

12

TUBE, INNER | SV1000SK3/SK4

51110-16G00

2
Out of stock

12

TUBE, INNER | SV1000K3/K4

51110-16G10

2
Out of stock

13

CYLINDER | SV1000SK3

51146-16G20

2
Out of stock

13

CYLINDER | SV1000K3/K4

51146-16G00

2
Out of stock

13

CYLINDER | SV1000SK4

51146-16G40

2
Out of stock

14

SPRING, FRONT | SV1000SK3

51171-16G30

2
Out of stock

14

SPRING, FRONT | SV1000K3/K4

51171-16G00

2
Out of stock

14

SPRING, FRONT | SV1000SK4

51171-16G40

2
Out of stock

15

GUIDE, SPRING

51172-16G00

2
Out of stock

16

SPACER

51176-16G00

2
Out of stock

17

NUT

51129-24F00

2
Out of stock

18

CAP, FORK | SV1000SK3/SK4

51351-16G00

2
Out of stock

18

CAP, FORK | SV1000K3/K4

51351-16G10

2
Out of stock

19

O RING This part replaces 51117-16G00.

51117-16G01

2
Out of stock

20

BOLT

51147-16G00

2
Out of stock

21

GASKET

51148-41310

2
Out of stock

22

BOLT

51328-40F30

4
Out of stock

23

PROTECTOR

51201-16G00

2
Out of stock
