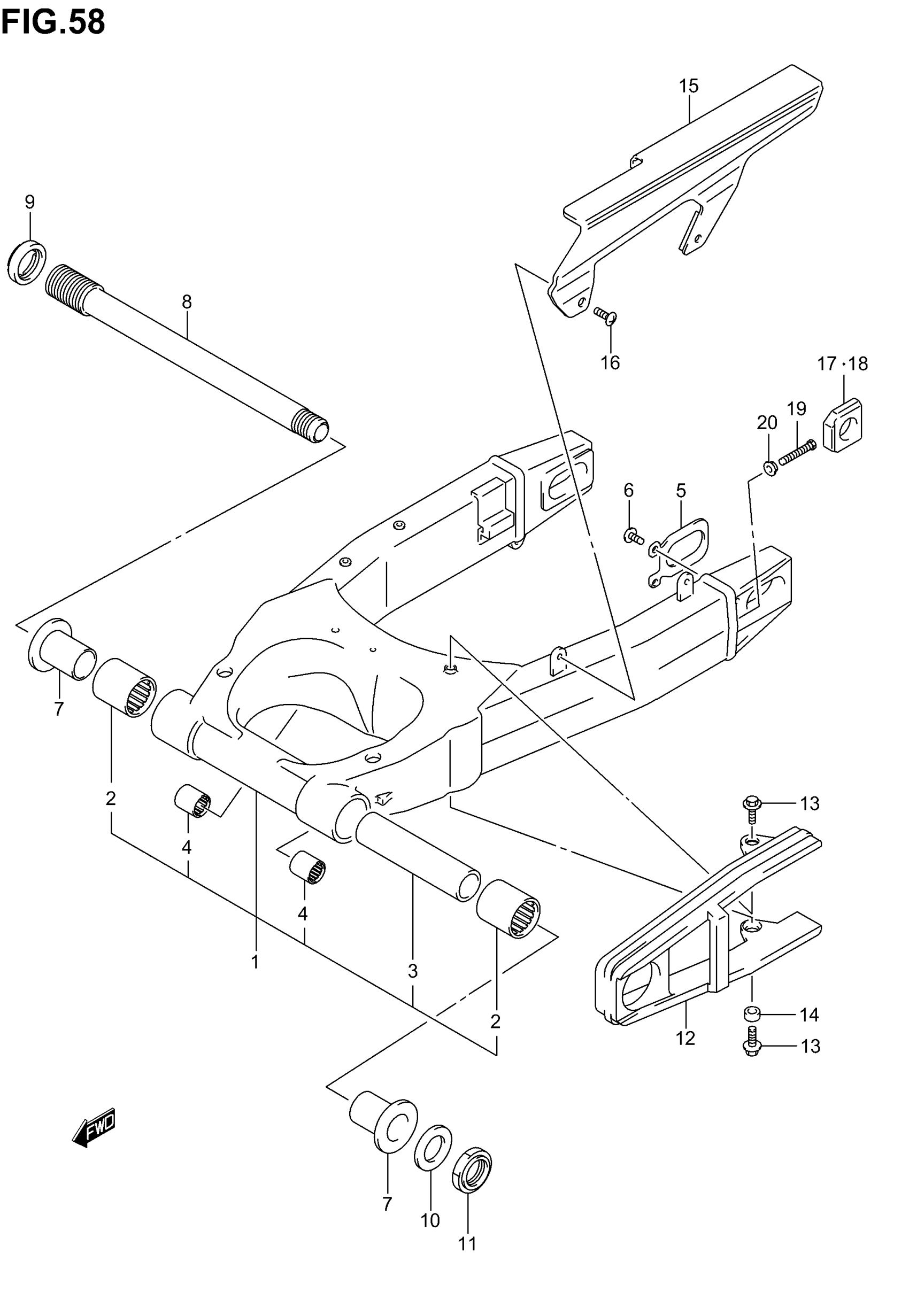

Suzuki SV1000 (2005) REAR SWINGING ARM (MODEL K3/K4) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | SV1000SK3

61000-16G11

Unavailable

1

SWINGING ARM ASSY, REAR | SV1000K3/K4

61000-16G00

Unavailable

1

SWINGING ARM ASSY, REAR | SV1000SK4; Includes Item(s) 2 - 4

61000-16G20

Unavailable

2

BEARING, PIVOT (30X40X33)

09263-30053

$36.15

3

SPACER, CENTER This part replaces 61281-33E10.

61281-33E20

$63.75

4

.BEARING This part replaces 09263-17039.

09263-17058

$14.85

5

PLATE, BRACKET

61124-33E00

$6.27

6

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

7

SPACER, BEARING

61251-16G00

$27.92

8

SHAFT,RR SWINGINGARM PIVOT

61211-16G00

$204.23

9

NUT, PIVOT BOLT

61214-40C31

$64.22

10

WASHER

09160-25070

$4.30

11

NUT This part replaces 09159-25001.

09159-25003

$28.75

12

BUFFER,CHAIN TO This part replaces 61273-16G00.

61273-16G01

$48.17

13

BOLT (6X20)

09116-06192

$2.44

14

SPACER

09180-06299

Unavailable

15

CASE, CHAIN | SV1000SK3

61310-34E00

$106.90

15

CASE,CHAIN | SV1000K3/SK4

61310-16G00

$111.05

16

SCREW

09113-06001

$2.75

17

ADJUSTER, CHAIN, R

61445-40F00

$43.20

18

ADJUSTER, CHAIN, L

61446-40F00

$43.20

19

BOLT (8X50)

09100-08287

$2.80

20

NUT This part replaces 08316-10083.

08316-1008B

$2.65
