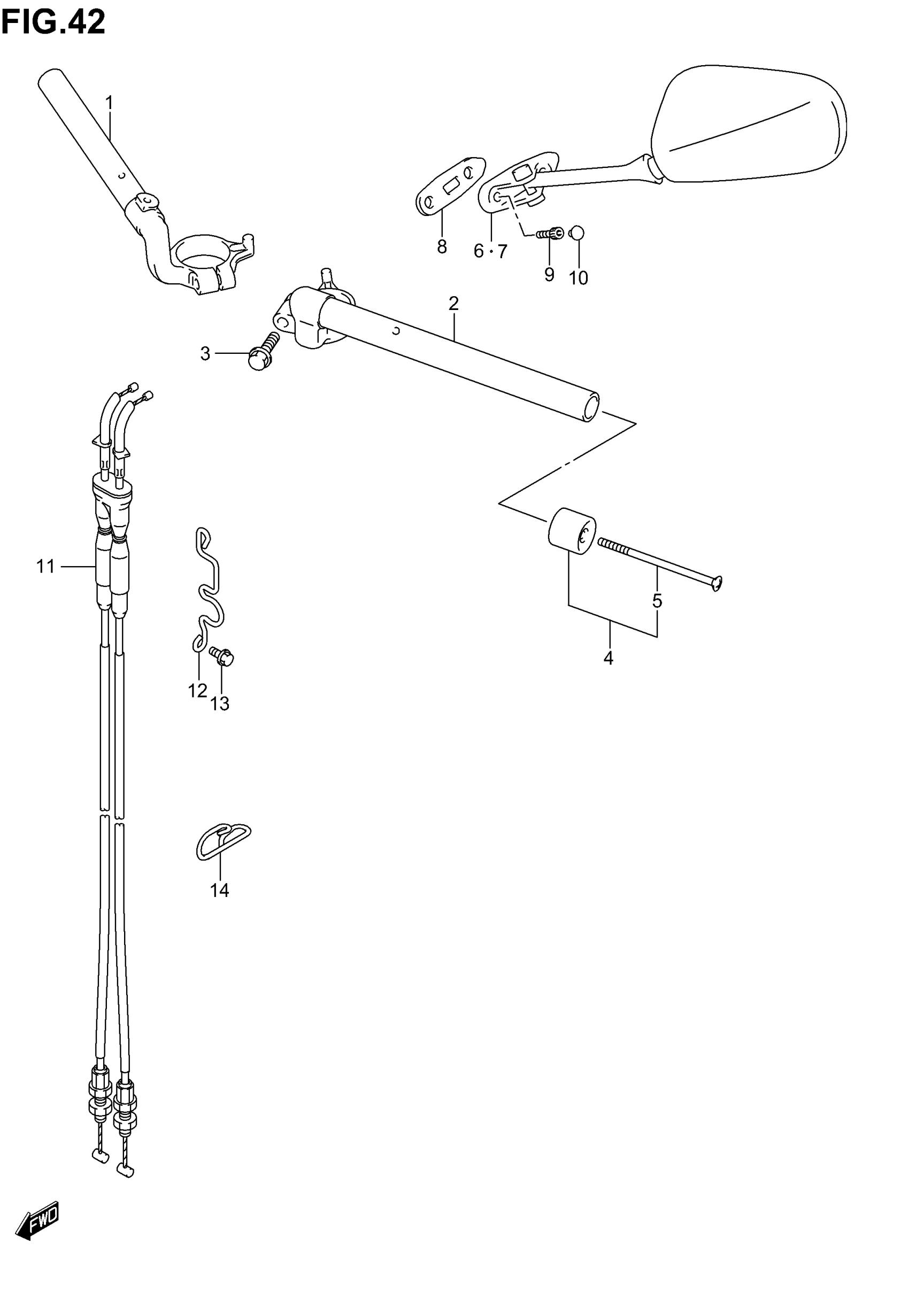

Suzuki SV1000 (2005) HANDLEBAR (SV1000SK3/SK4/SK5) Diagram

#

Description

Price

1

HANDLEBAR RH

56111-16G00

Unavailable

2

HANDLEBAR LH

56151-16G00

Unavailable

3

BOLT

56123-35F00

$6.95

4

BALANCER SET, HANDLEBAR | Includes Item(s) 5

56200-04821

$51.82

5

SCREW This part replaces 02122-06603.

02122-0660B

$2.80

6

MIRROR ASSY, REAR VIEW RH

56500-16G10

$213.06

7

MIRROR ASSY, REAR VIEW LH

56600-16G10

$131.45

8

CUSHION

94576-24F00

$6.14

9

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

10

CAP

09250-05009

$2.10

11

CABLE ASSY,THRO This part replaces 58300-16G10.

58300-16G11

$50.15

12

GUIDE, CABLE NO.1

58621-16GA0

Unavailable

13

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

14

GUIDE, THROTTLE CABLE

58621-16GB0

Unavailable
