2004 Kawasaki Super Sherpa (Canada Only) Swingarm Diagram

← All diagrams

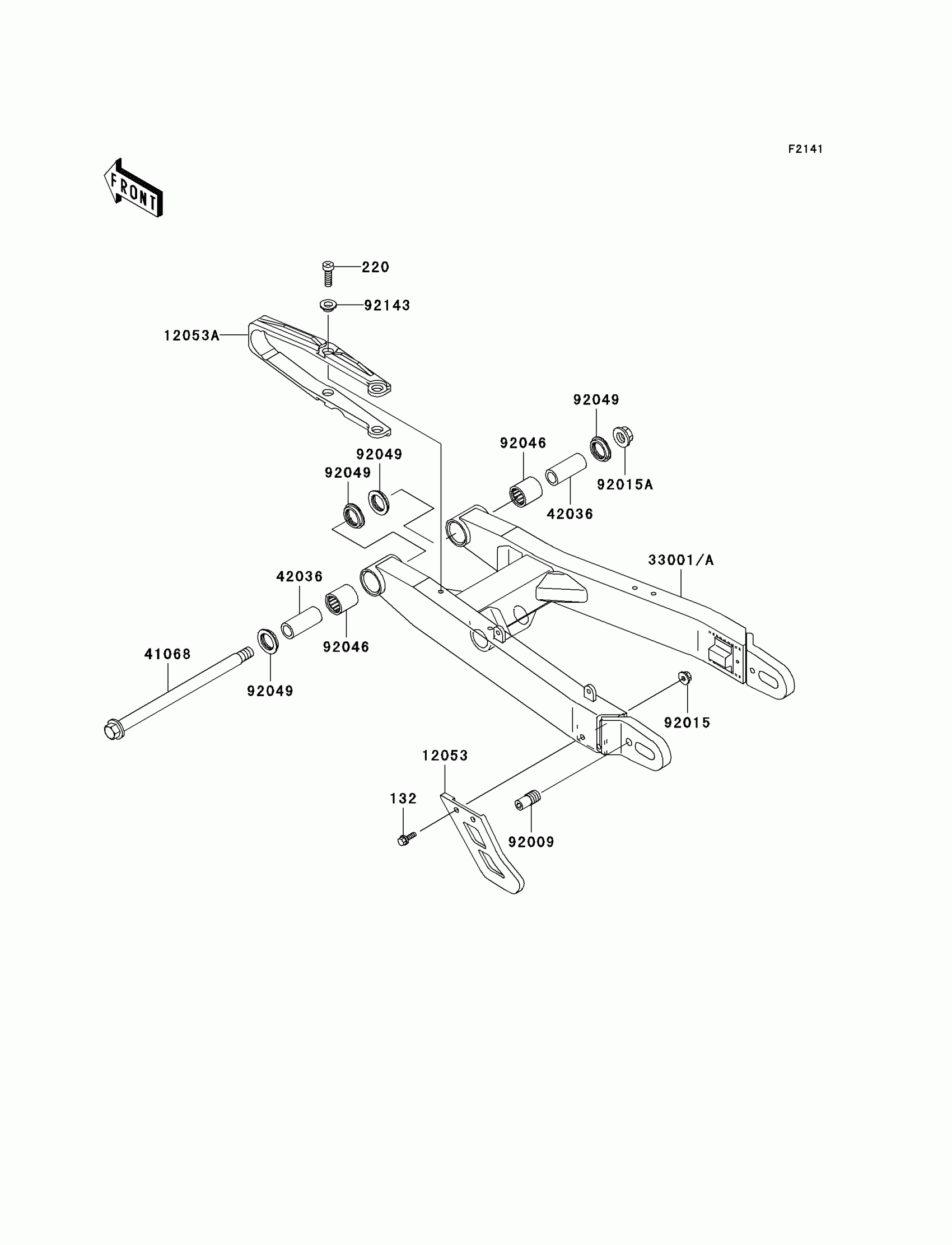

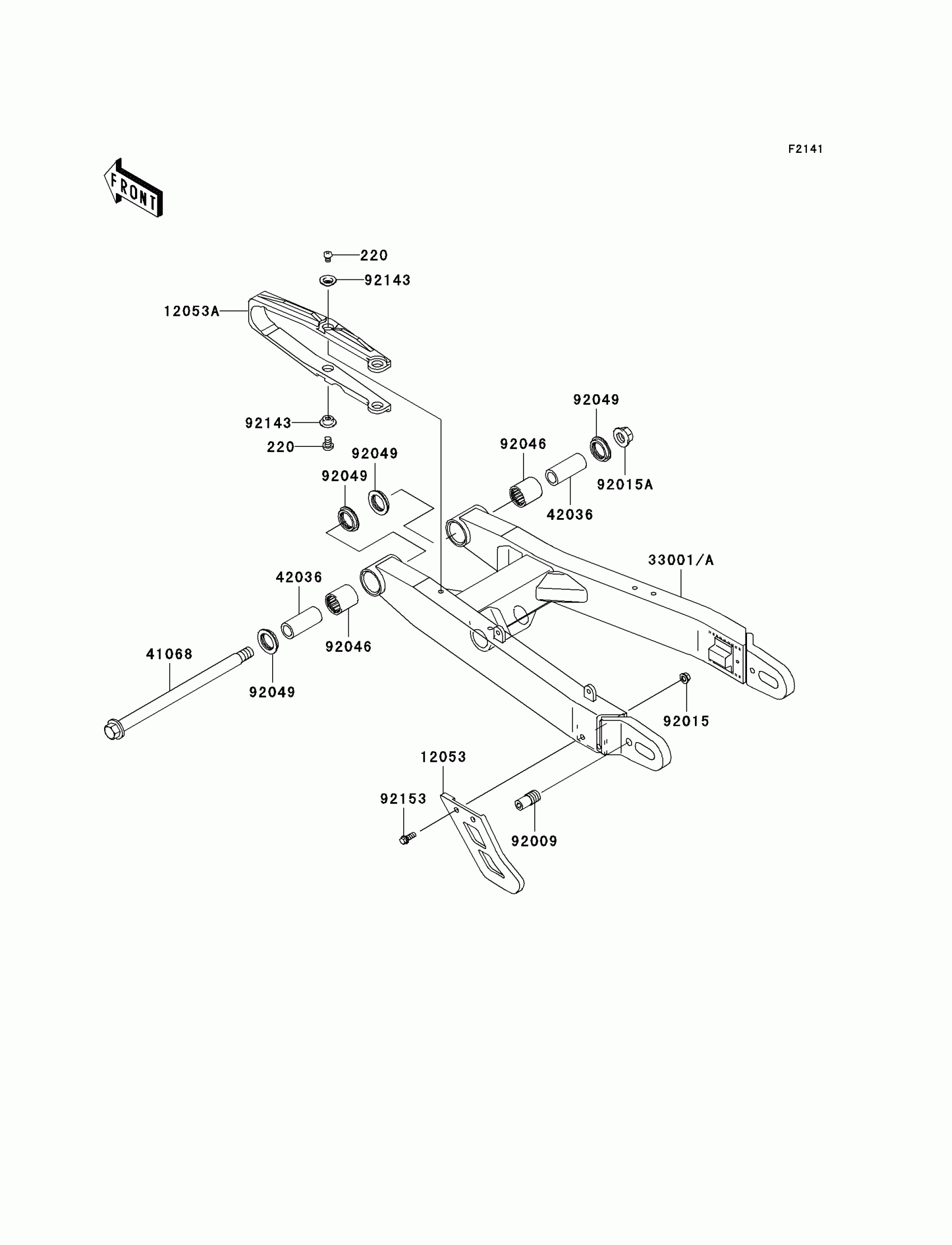

Find the part on the Swingarm diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Super Sherpa (Canada Only) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132V0616

1
Out of stock

220

1

$0.63

In stock

12053

GUIDE-CHAIN,RR

12053-1389

1

$62.64

In stock

12053A

GUIDE-CHAIN,FR

12053-1392

1

$35.70

In stock

33001A

ARM-COMP-SWING,SILVER

33001-1526-TX

1

$931.95

In stock

41068

AXLE,FR,15X242

41068-1078

1

$36.09

In stock

42036

SLEEVE,15.1X22X52

42036-1335

1

$24.85

In stock

92009

SCREW,SET,SOCKET,10X21

92009-1789

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,14MM

92015-1407

1

$7.86

In stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

1
Out of stock

92143

COLLAR

92143-1156

1

$4.93

In stock
