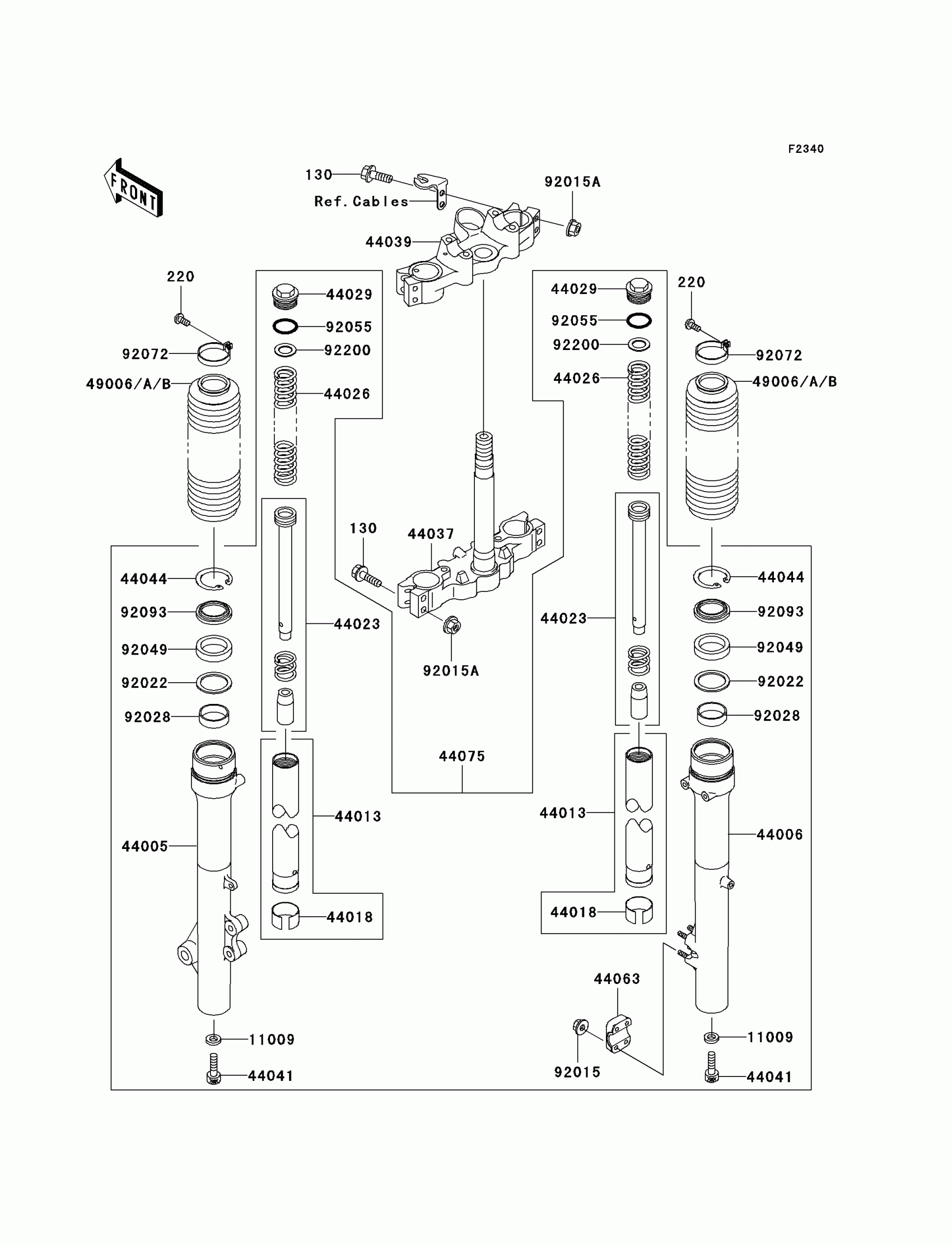

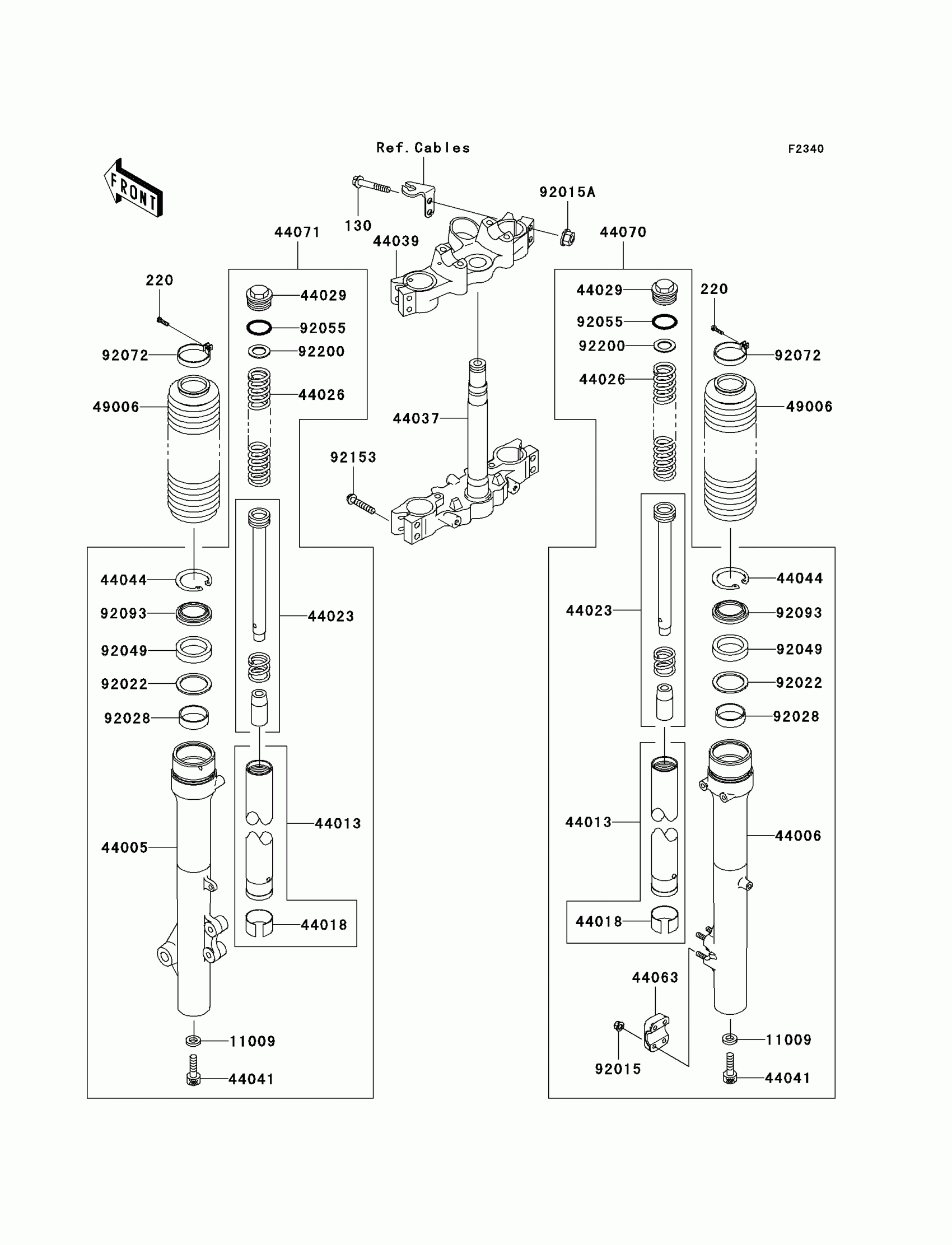

Kawasaki Super Sherpa (Canada Only) Front Fork Diagram

Description

Price

130

BOLT-FLANGED,8X50

130G0850

Unavailable

220

SCREW PAN HEAD 4X16

220B0416

Unavailable

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

44005

PIPE-LEFT FORK OUTER

44005-1403

$475.10

44006

PIPE-RIGHT FORK OUTER

44006-1401

$475.11

44013

PIPE-FORK INNER

44013-1468

$362.51

44018

PISTON-FORK

44018-1058

$20.03

44023

CYLINDER-SET-FORK

44023-1141

$200.85

44026

SPRING-FRONT FORK

44026-1699

$110.73

44029

SEAT-FORK SPRING

44029-1160

$47.96

44037

HOLDER-FORK UNDER

44037-1357

$389.11

44039

HOLDER-FORK UPPER

44039-1272

$252.14

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

44044

RING-SNAP

44044-015

$11.66

44063

HOLDER-FRONT AXLE

44063-1056

$57.93

44075

DAMPER-SET-FORK

44075-1102

$966.58

49006A

BOOT,FORK,S.GRAY

49006-1312-SR

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,FLANGED,8MM

92015-1485

$4.26

92022

WASHER,FRONT FORK

92022-1275

$7.25

92028

BUSHING

92028-1656

$15.29

92049

SEAL-OIL,FORK OUTER TUBE

92049-1470

$16.17

92055

RING-O,FORK TOP CAP

92055-1051

$4.85

92072

BAND,BOOT

92072-1347

$10.15

92093

SEAL,FORK OUTER TUBE

92093-1439

$12.68

92200

WASHER

92200-1259

$5.86
