2004 Kawasaki Super Sherpa (Canada Only) Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

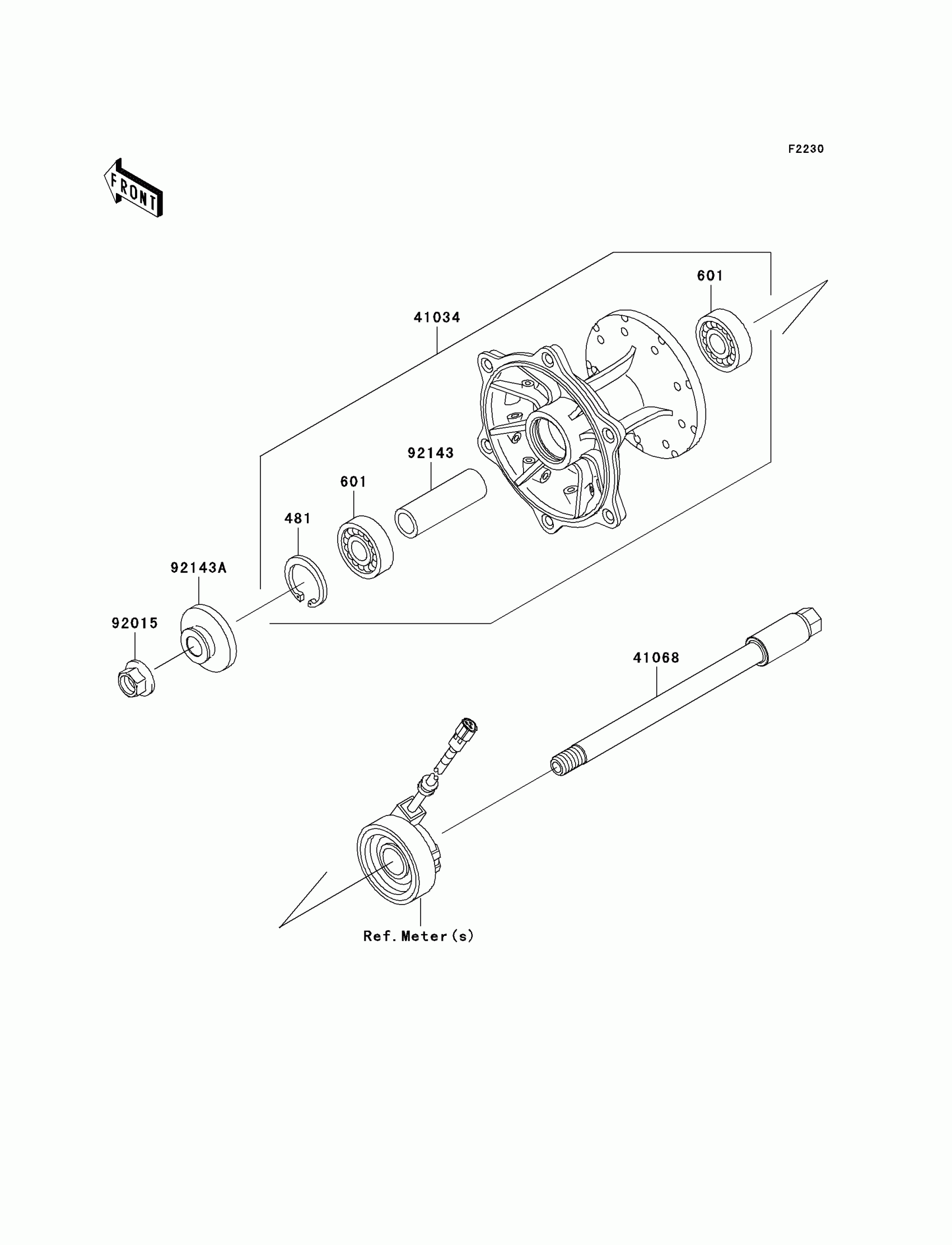

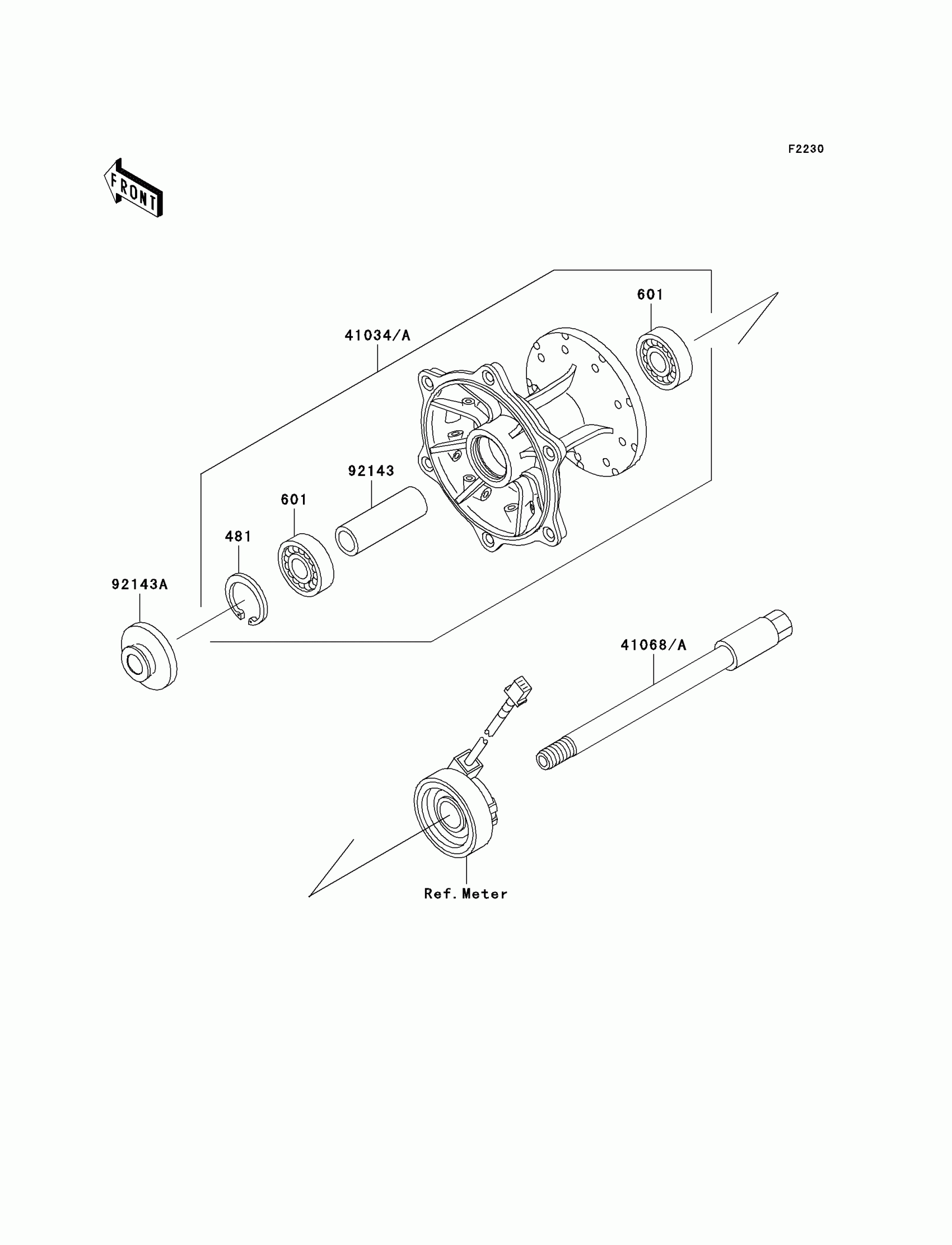

2004 Kawasaki Super Sherpa (Canada Only) Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

CIRCLIP-TYPE-C,35MM

481J3500

1
Out of stock

601

BEARING-BALL,#6202UG

601B6202UG

1
Out of stock

41034

DRUM-ASSY,FRONT BRAKE

41034-0007

1
Out of stock

41068

AXLE,FR

41068-0013

1
Out of stock

92143

COLLAR,15.2X22X67

92143-1033

1
Out of stock

92143A

COLLAR,FR AXLE,L=19.5

92143-1918

1
Out of stock
