2004 Kawasaki Super Sherpa (Canada Only) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

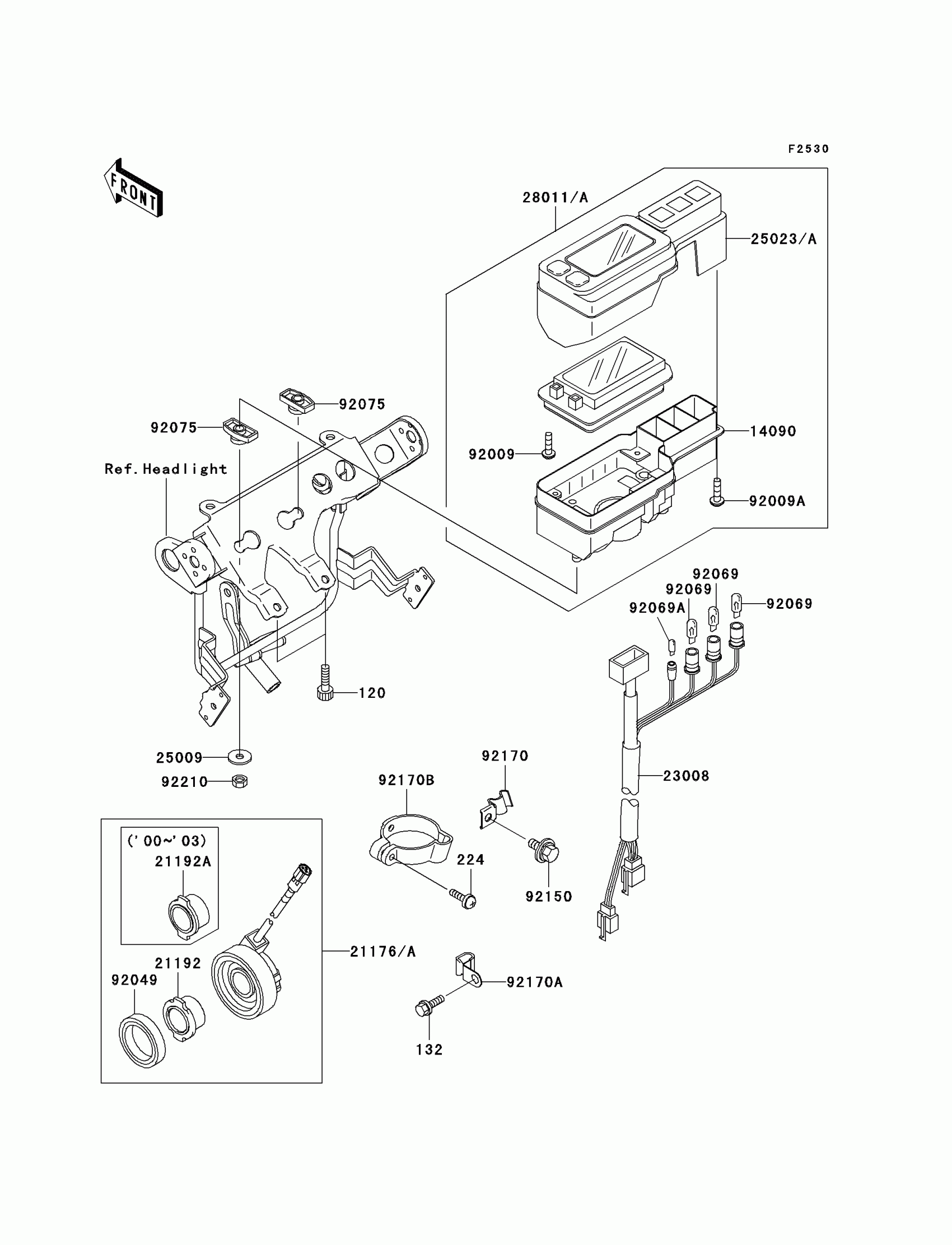

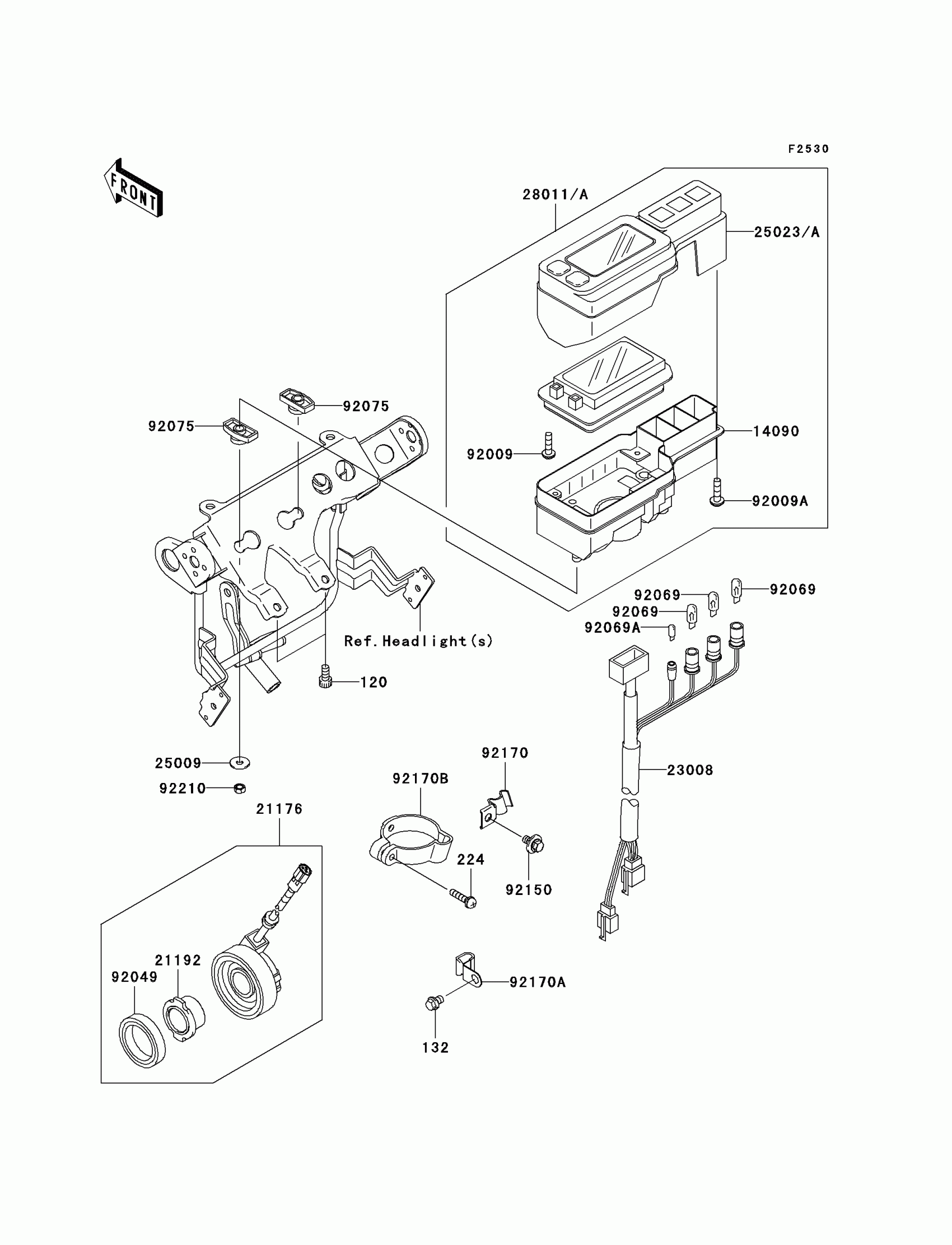

2004 Kawasaki Super Sherpa (Canada Only) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120P0612

1
Out of stock

132

BOLT-FLANGED-SMALL,6X8

132G0608

1
Out of stock

224

SCREW-PAN-WP-CROS,5X20

224B0520

1
Out of stock

14090

COVER,METER CASE,LWR

14090-1903

1
Out of stock

21176

SENSOR,SPEED

21176-0012

1
Out of stock

21192

MAGNET,SPEED SENSOR

21192-0001

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1579

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1245

1
Out of stock

28011

METER,DIGITAL

28011-1190

1
Out of stock

92009

SCREW,TAPPING,3X12

92009-1028

1
Out of stock

92009A

SCREW,TAPPING,3X14

92009-1592

1
Out of stock

92049

SEAL-OIL,METER GEAR CASE

92049-1172

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,14V 3W,T6.5

92069-1068

1
Out of stock

92075

DAMPER,METER BRACKET

92075-1581

1
Out of stock

92150

BOLT,6X12

92150-1435

1
Out of stock

92170

CLAMP,METER HARNESS

92170-1782

1

$4.49

In stock

92170A

CLAMP

92170-1804

1

$4.20

In stock

92170B

CLAMP,METER HARNESS

92170-1852

1

$13.90

In stock

92210

NUT,5MM

92210-1124

1
Out of stock
