2004 Kawasaki Super Sherpa (Canada Only) Generator Diagram

← All diagrams

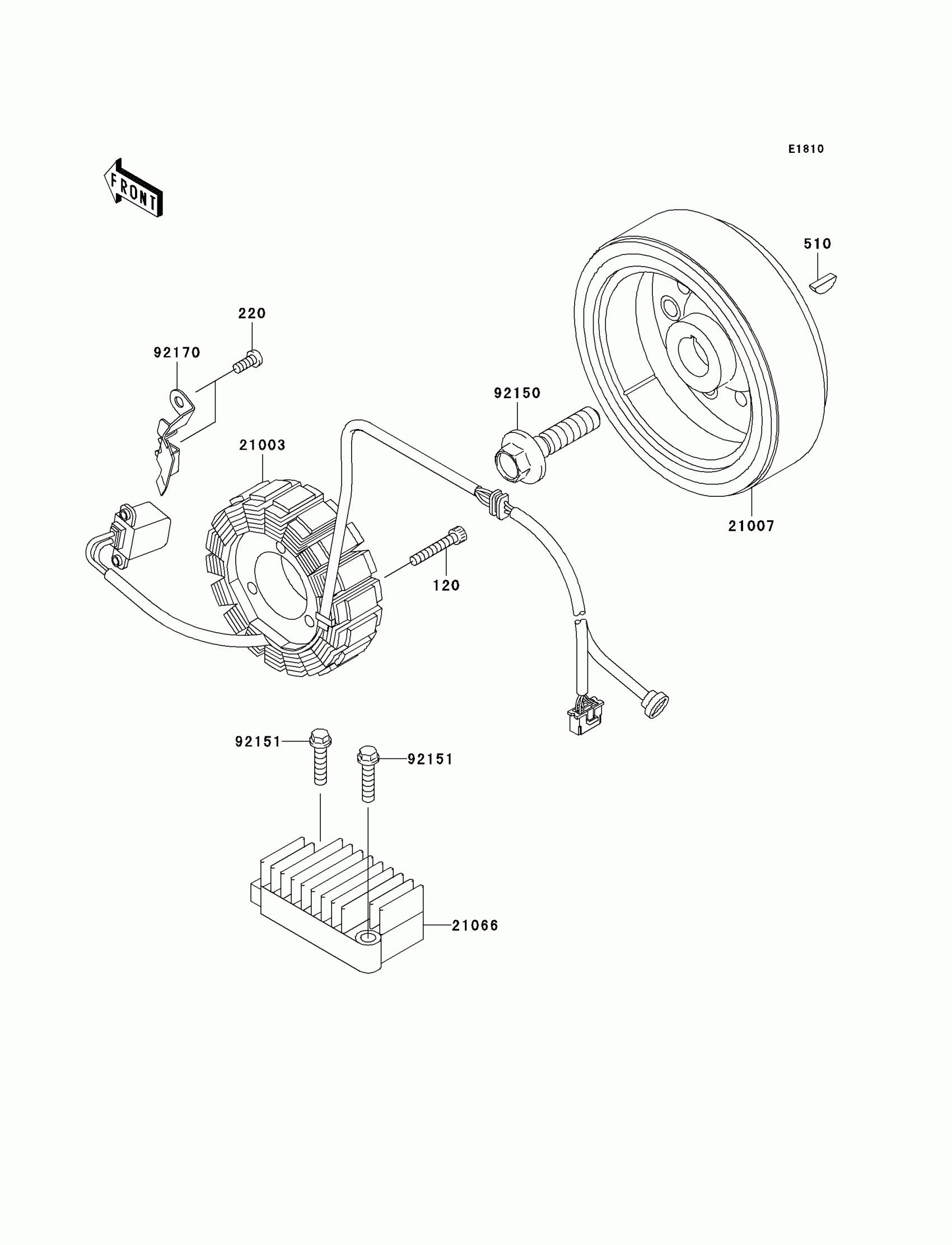

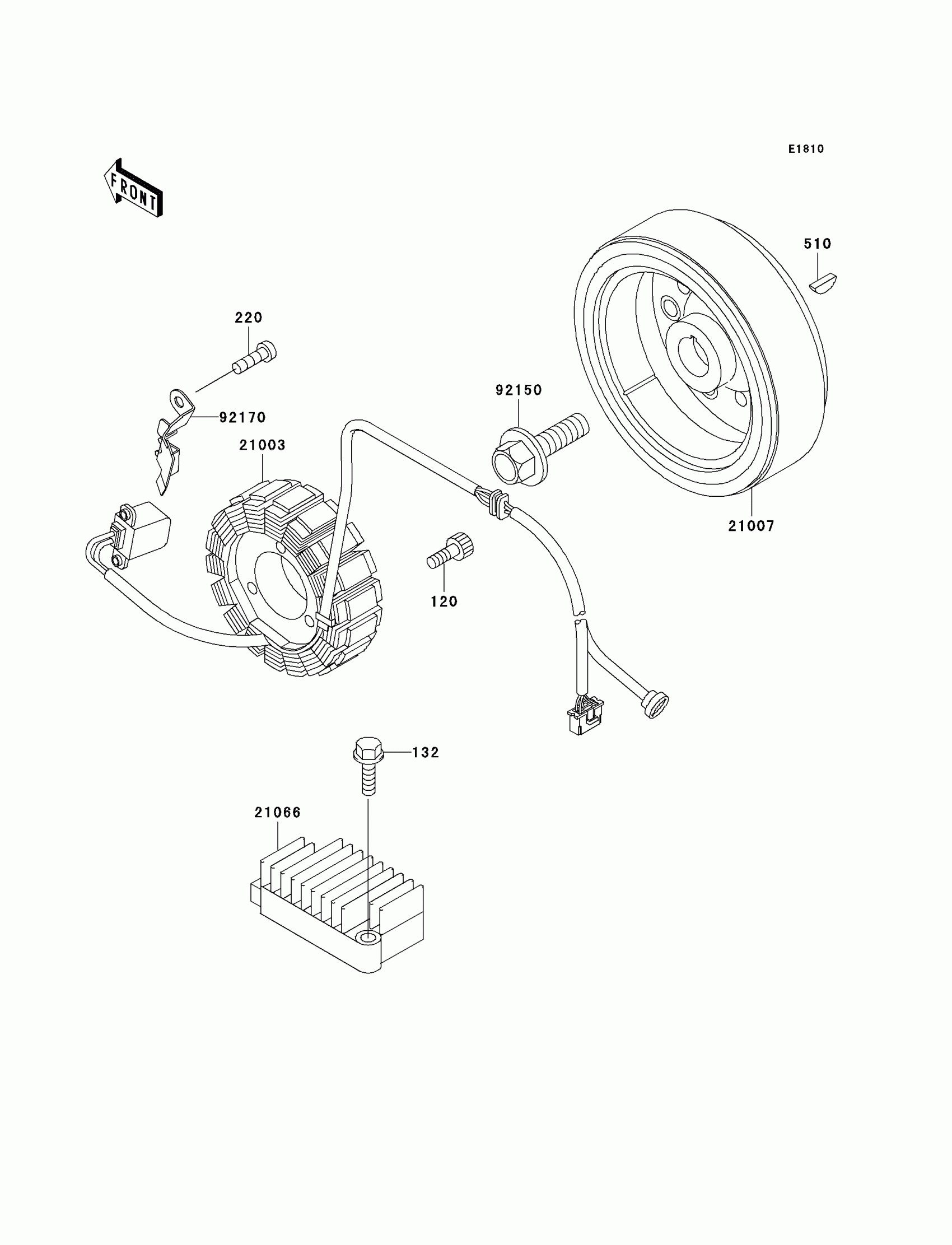

Find the part on the Generator diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Super Sherpa (Canada Only) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X30

120P0530

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1

$0.51

In stock

510

KEY-WOODRUFF

510A3100

1

$2.17

In stock

21003

STATOR

21003-1312

1

$556.02

In stock

21007

ROTOR,MAGNETO

21007-1273

1

$589.99

In stock

21066

REGULATOR-VOLTAGE

21066-1108

1

$189.05

In stock

92150

BOLT,12X50

92150-1708

1

$7.25

In stock

92170

CLAMP

92170-1346

1

$4.66

In stock
