2004 Kawasaki Super Sherpa (Canada Only) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

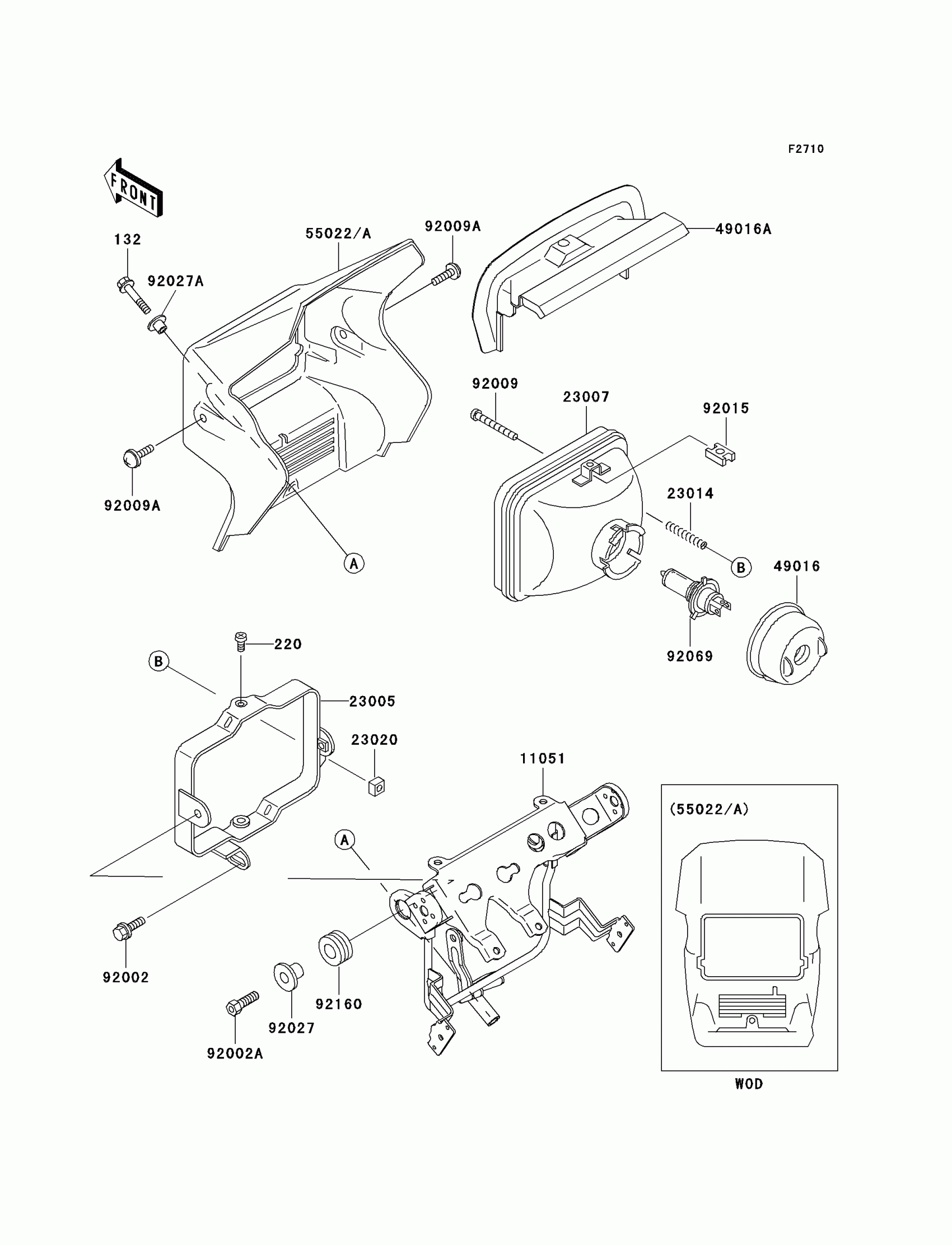

2004 Kawasaki Super Sherpa (Canada Only) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X45

132E0645

1
Out of stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

11051

BRACKET,HEAD LAMP

11051-1320

1
Out of stock

23005

BODY-COMP-HEAD LAMP

23005-1052

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1364

1
Out of stock

23014

SPRING,FOCUS ADJUSTING

23014-005

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

49016

COVER-SEAL,SOCKET

49016-1037

1
Out of stock

49016A

COVER-SEAL,HEAD LAMP

49016-1204

1
Out of stock

55022

COVER-HEAD LAMP,P.WHITE

55022-1085-6F

1
Out of stock

92002

BOLT,6X16

92002-1124

1
Out of stock

92002A

BOLT

92002-1319

1
Out of stock

92009

SCREW,4X48

92009-1065

1
Out of stock

92009A

SCREW,6X8

92009-1294

1
Out of stock

92015

NUT,5MM

92015-1354

1
Out of stock

92027

COLLAR,FUEL TANK FITT

92027-1134

1
Out of stock

92027A

COLLAR,L=4.6

92027-1168

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92160

DAMPER

92160-1007

1
Out of stock
