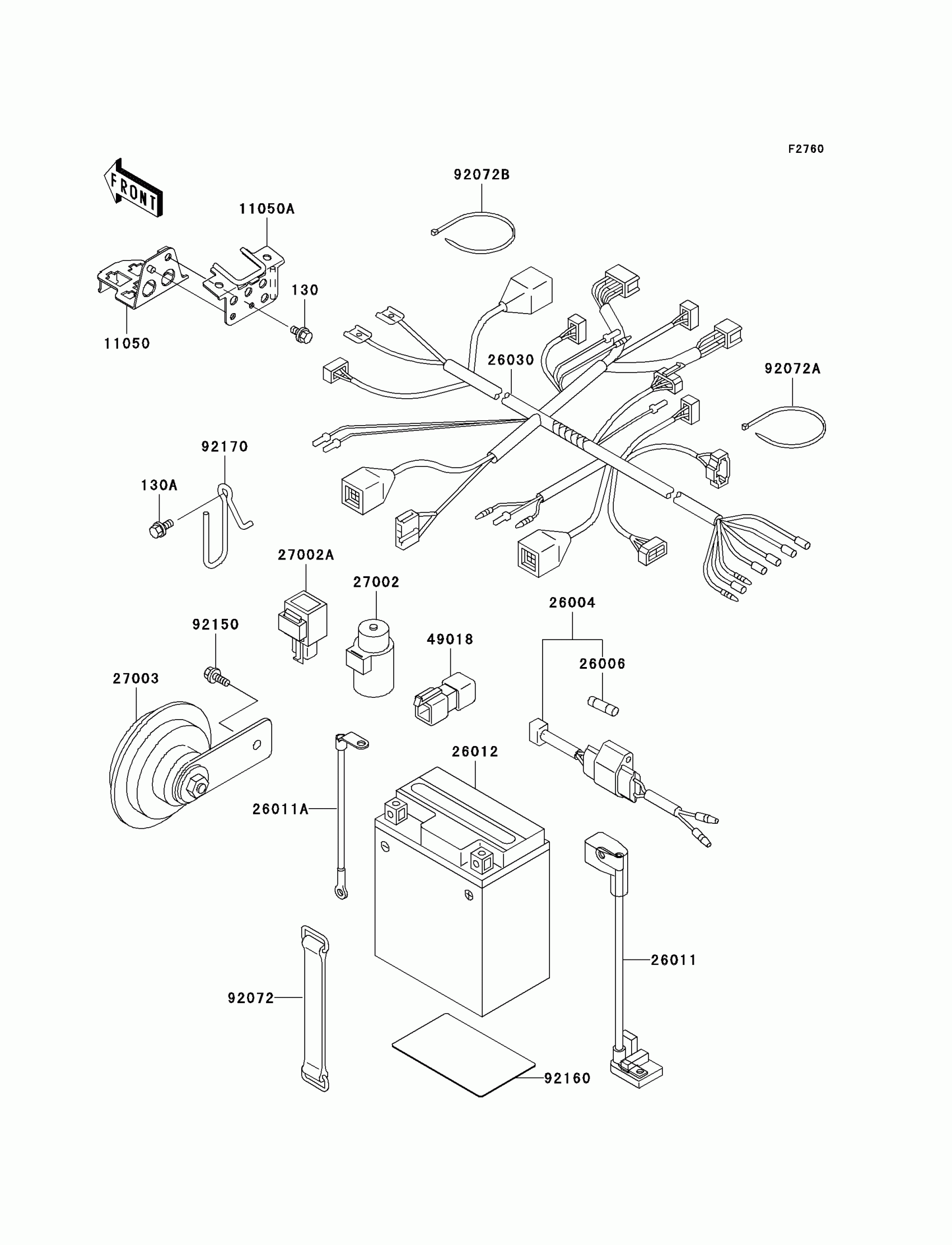

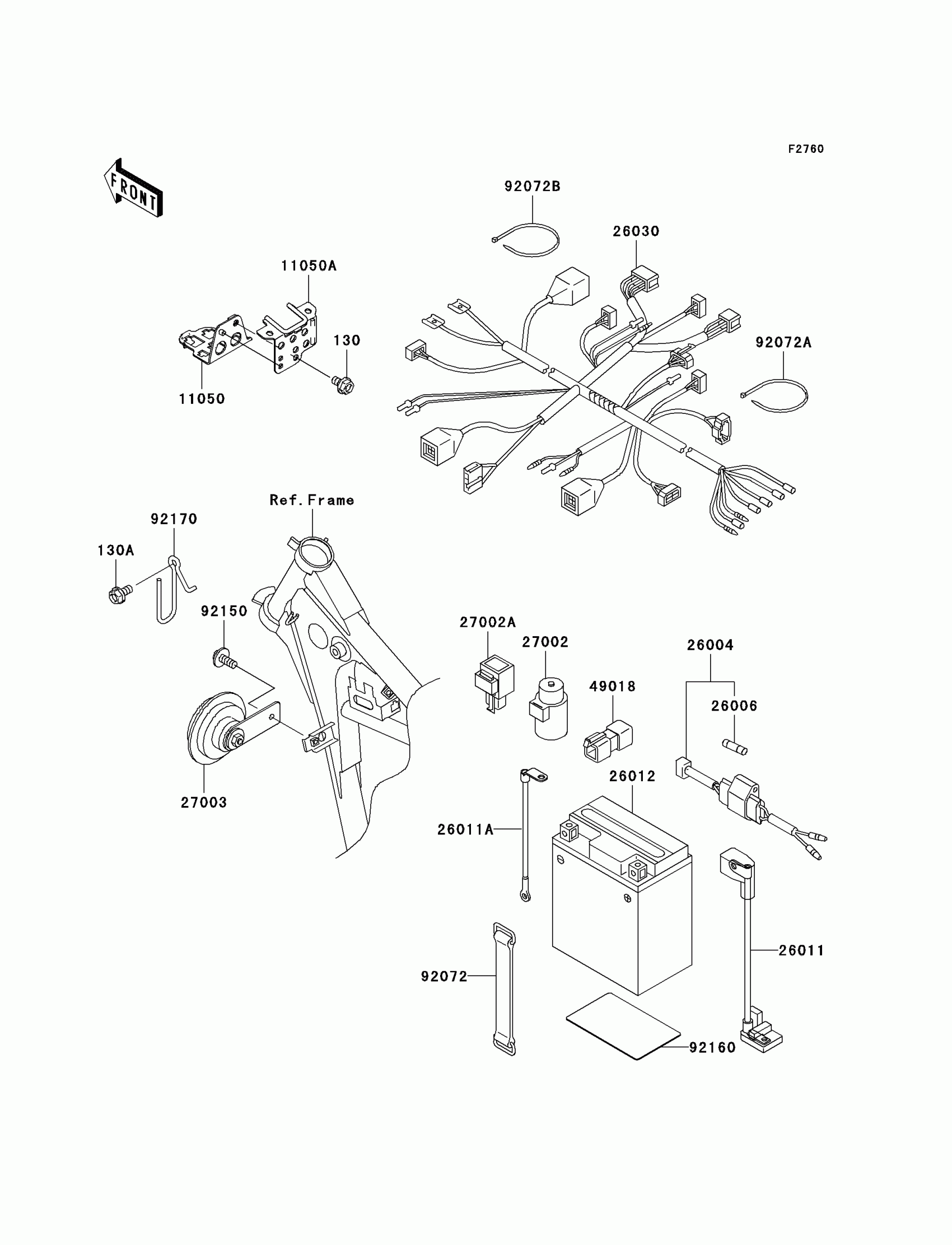

Kawasaki Super Sherpa (Canada Only) Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

11050

BRACKET,HARNESS COUPLER

11050-1443

$16.54

11050A

BRACKET,HARNESS COUPLER

11050-1444

$18.86

26004

FUSE-ASSY

26004-1108

$43.62

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26011

WIRE-LEAD,BATTERY(+)

26011-1659

$43.63

26011A

WIRE-LEAD,BATTERY(-)

26011-1660

$24.25

26012

BATTERY,YTX7L-BS,12V 6AH

26012-1321

$133.49

26030

HARNESS,MAIN

26030-1661

$413.45

27002

RELAY-ASSY

27002-1051

$48.39

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN

27003-1366

$80.98

49018

DIODE

49018-1052

Unavailable

92072

BAND,L=150

92072-1188

$10.92

92072A

BAND,L=202

92072-1195

$1.16

92072B

BAND,L=140

92072-1293

$5.26

92150

BOLT,6X14

92150-1340

$3.86

92160

DAMPER,BATTERY

92160-1880

$8.85

92170

CLAMP,HARNESS

92170-1787

$12.25
