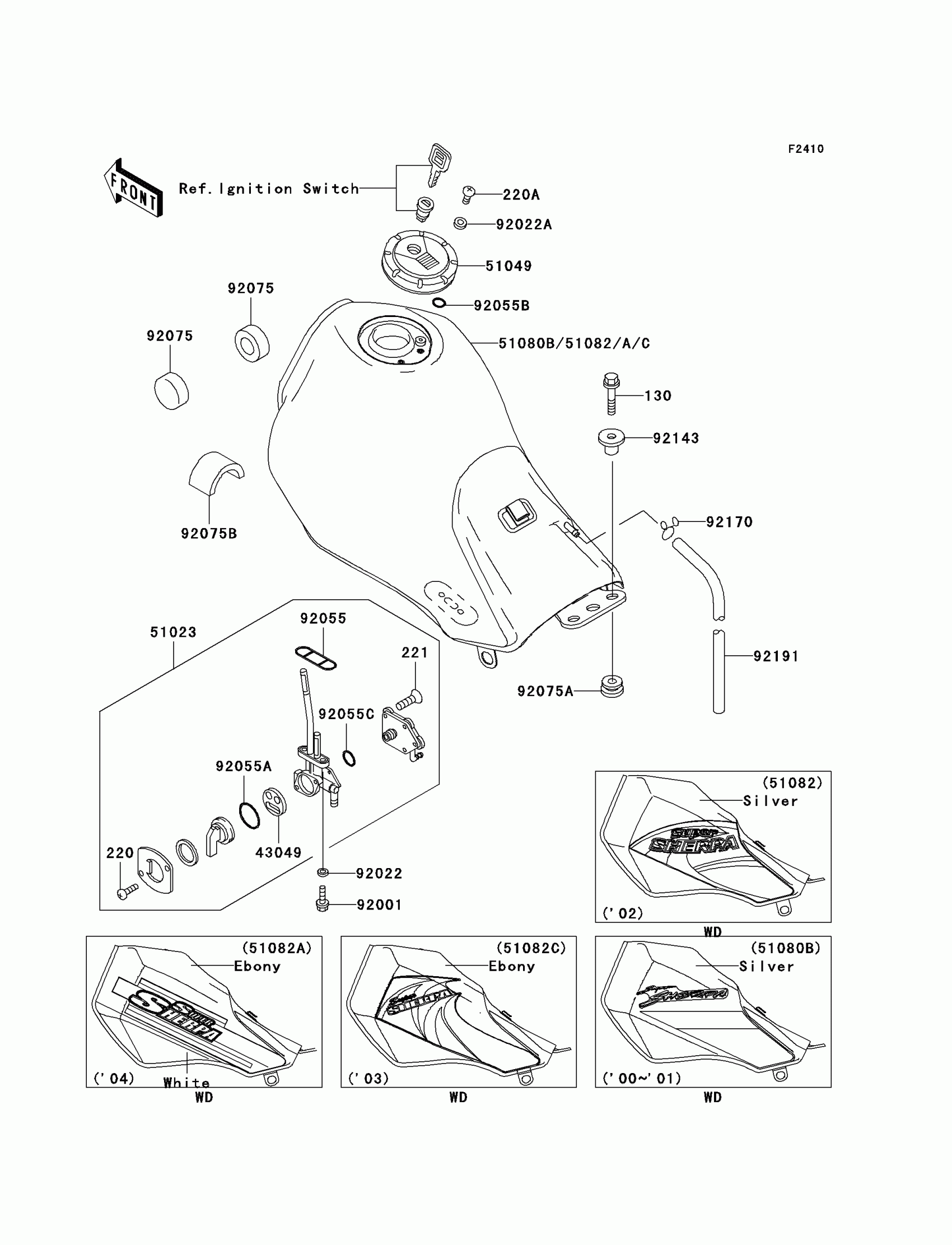

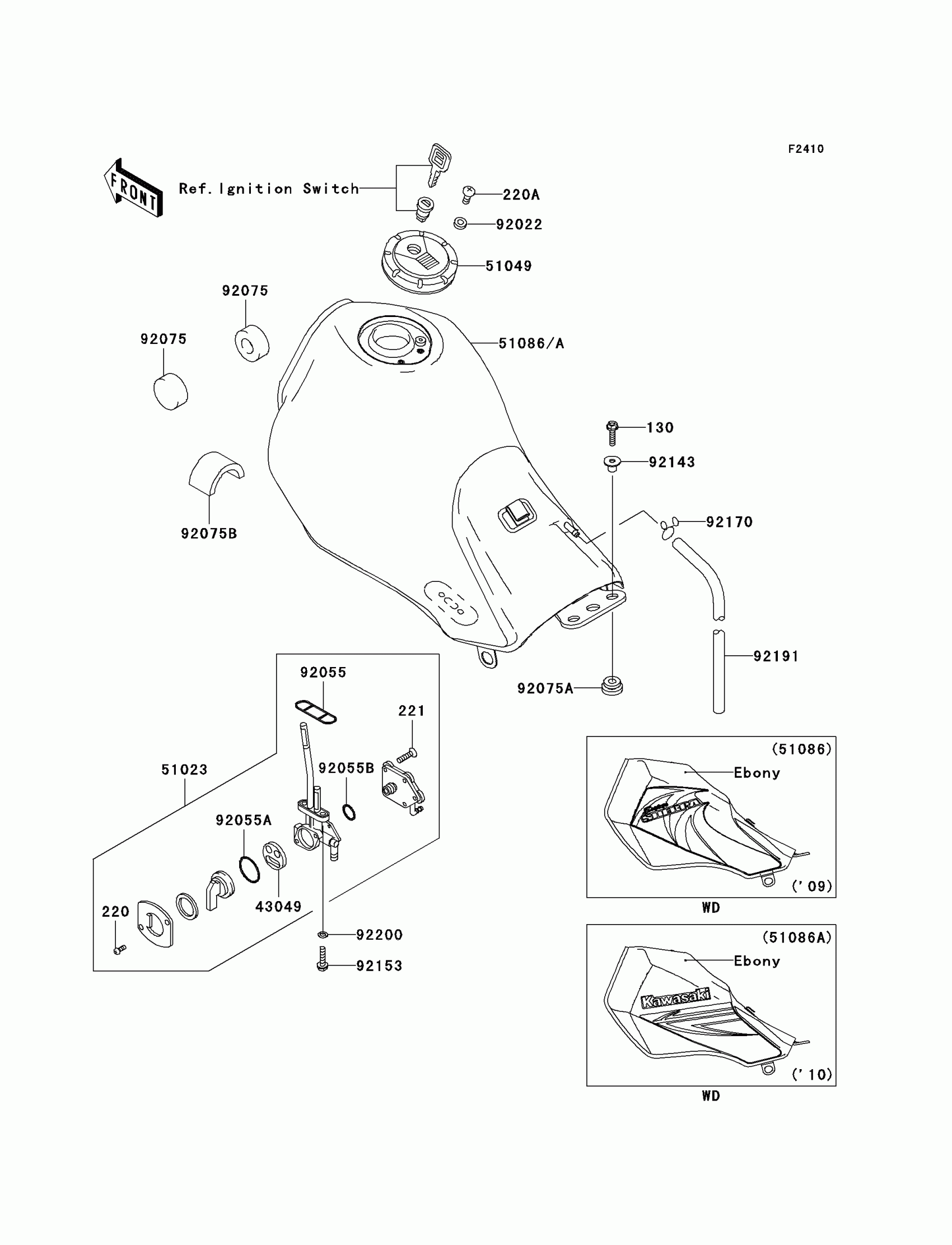

Kawasaki Super Sherpa (Canada Only) Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X25

130H0625

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

43049

PACKING,TAP VALVE

43049-1091

$5.54

51023

TAP-ASSY,FUEL

51023-1278

$126.15

51049

CAP-TANK,FUEL

51049-1134

Unavailable

51082A

TANK-COMP-FUEL,EBONY/WHITE

51082-5238-UU

Unavailable

92001

BOLT,6X25

92001-1524

$1.54

92022

WASHER-PLAIN

92022-183

$2.99

92022A

WASHER,5.1X10X1.0

92022-1977

$2.76

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92055B

RING-O,ID=9

92055-1552

$2.41

92055C

RING-O

92055-1664

$3.96

92075

DAMPER,FUEL TANK

92075-101

$4.67

92075A

DAMPER RUBBER

92075-112

$3.43

92075B

DAMPER

92075-1507

$10.32

92143

COLLAR

92143-1353

$6.54

92170

CLAMP,TUBE

92170-1834

$3.55

92191

TUBE,7X12X600

92191-1138

$16.61
