2004 Kawasaki Super Sherpa (Canada Only) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

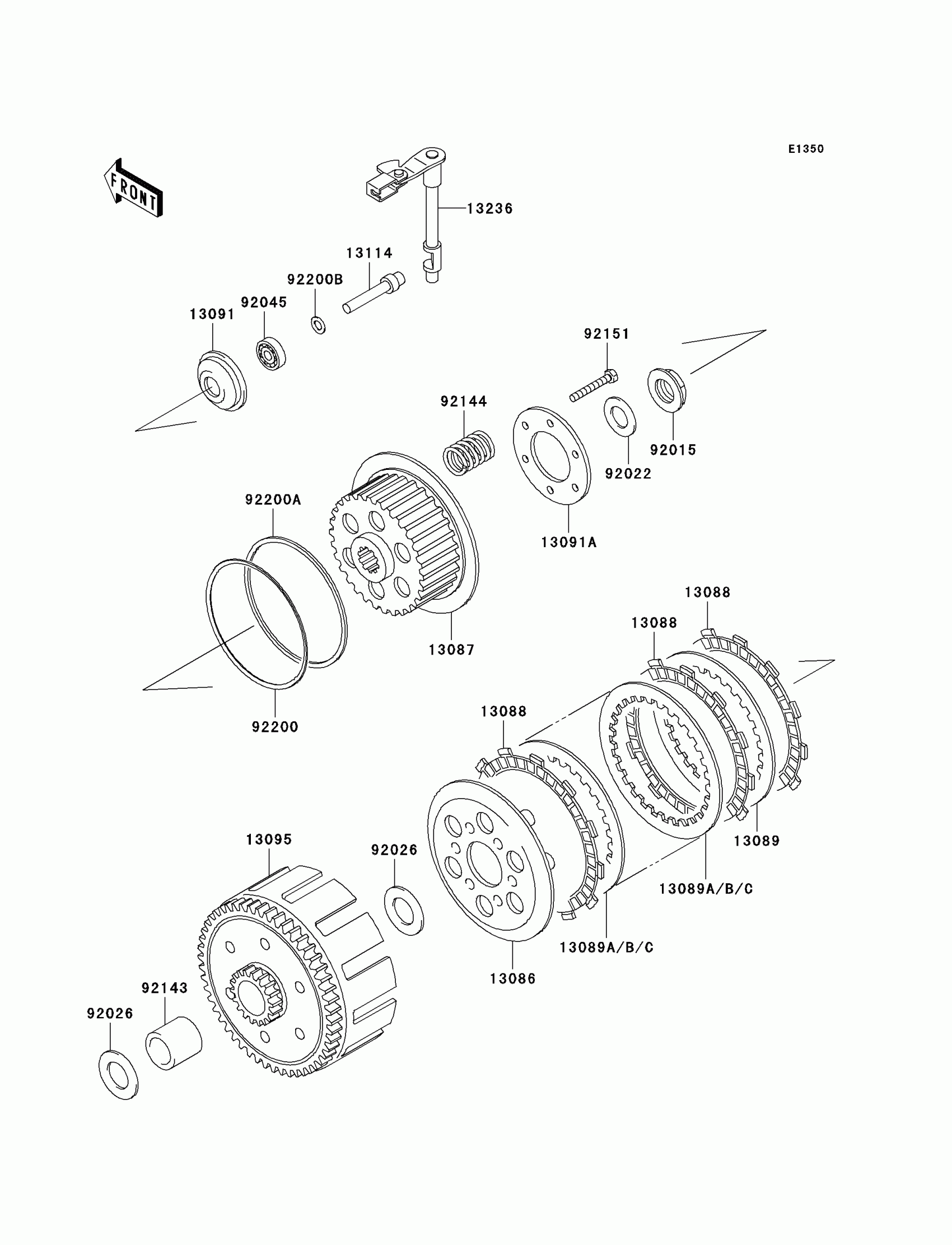

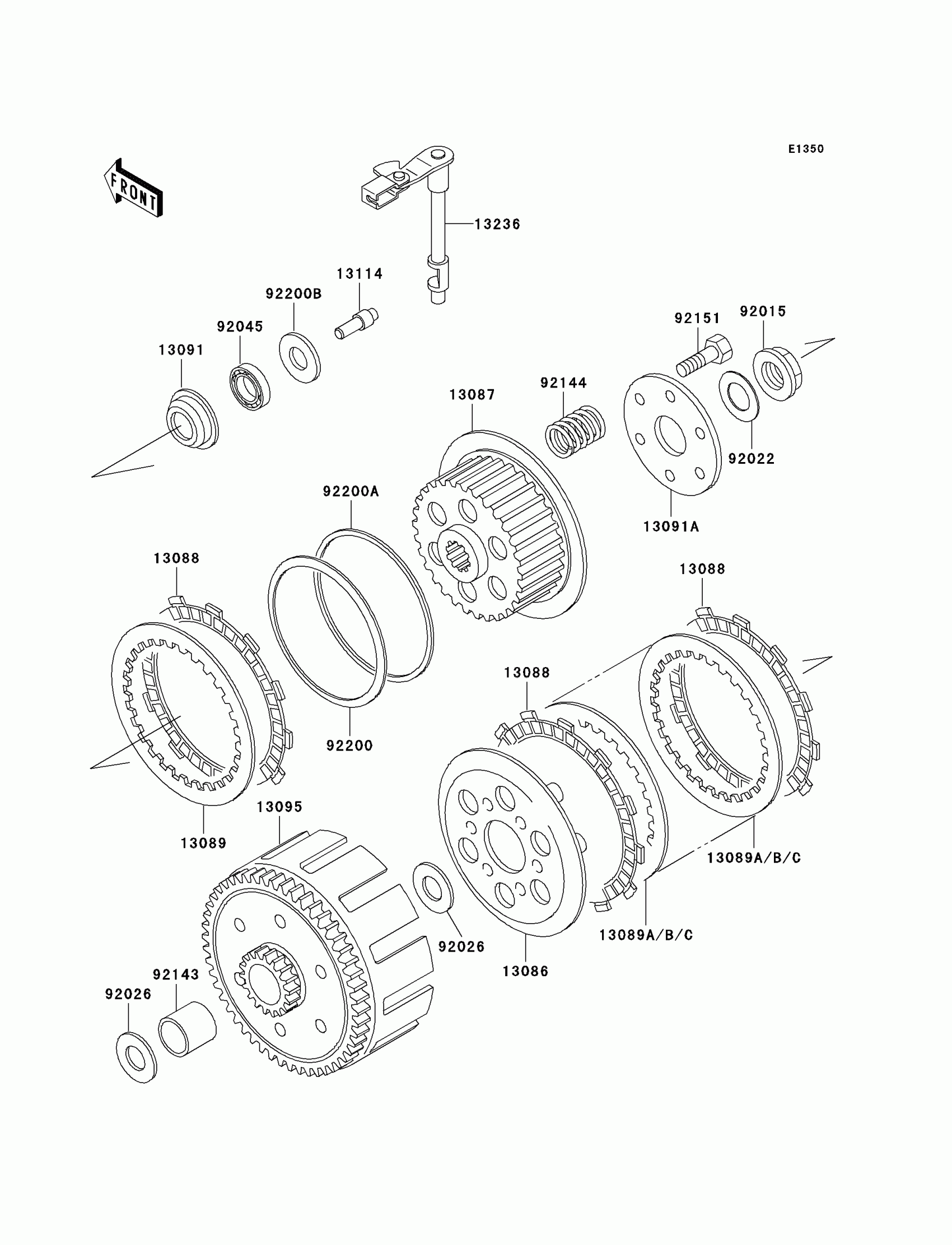

2004 Kawasaki Super Sherpa (Canada Only) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13086

WHEEL-CLUTCH

13086-1072

1
Out of stock

13087

HUB-CLUTCH

13087-1150

1
Out of stock

13088

PLATE-FRICTION

13088-1125

1
Out of stock

13089

PLATE-CLUTCH

13089-1085

1
Out of stock

13089A

PLATE-CLUTCH,T=1.6

13089-1094

1
Out of stock

13089B

PLATE-CLUTCH,T=2.0

13089-1116

—
Out of stock

13089C

PLATE-CLUTCH,T=1.2

13089-1117

—
Out of stock

13091

HOLDER,CLUTCH PUSHER

13091-1134

1
Out of stock

13091A

HOLDER,CLUTCH SPRING

13091-1683

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1352

1
Out of stock

13114

PUSHER-CLUTCH

13114-1068

1
Out of stock

13236

LEVER-COMP

13236-1295

1
Out of stock

92015

NUT,16MM

92015-1581

1
Out of stock

92022

WASHER,16.3X29X1.75

92022-1356

1
Out of stock

92026

SPACER,20.3X36X2.0

92026-1496

1
Out of stock

92045

BEARING-BALL,627

92045-1236

1
Out of stock

92143

COLLAR

92143-1959

1
Out of stock

92144

SPRING,CLUTCH

92144-1996

1
Out of stock

92151

BOLT,5X35

92151-1218

1
Out of stock

92200

WASHER,JUDDER SPRING

92200-1079

1
Out of stock

92200A

WASHER,JUDDER PLATE

92200-1080

1
Out of stock

92200B

WASHER,7X12.5X0.8

92200-1197

1
Out of stock
