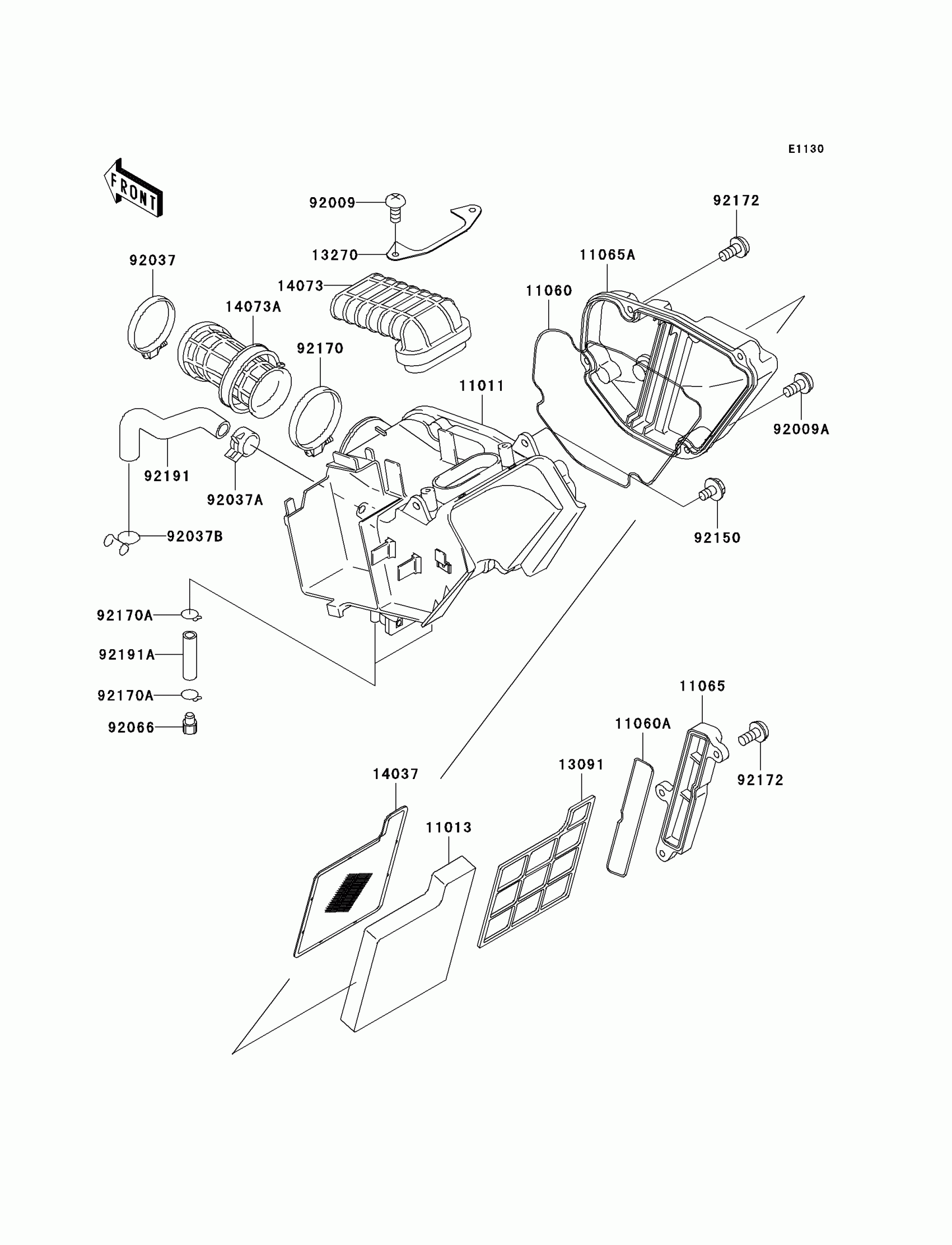

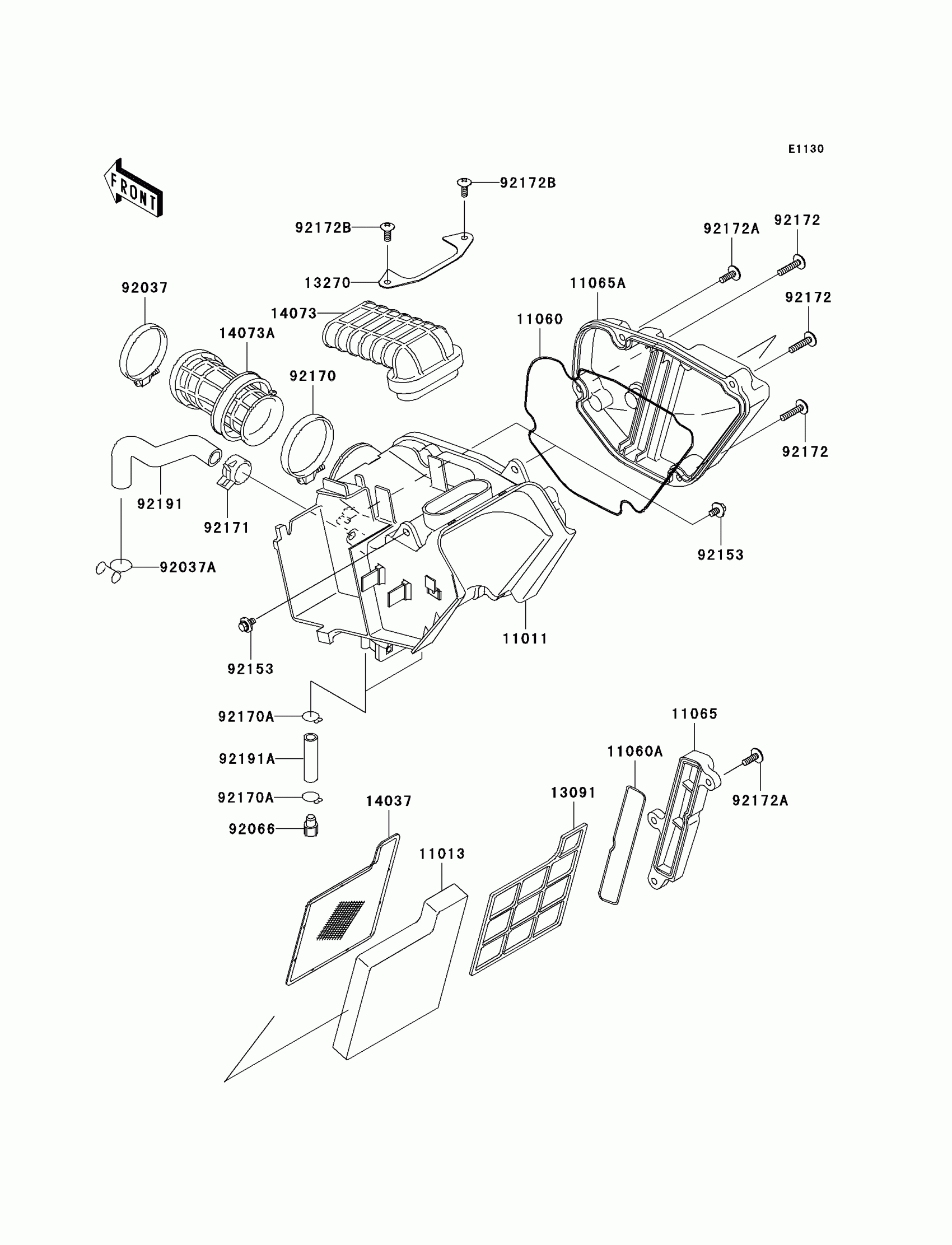

Kawasaki Super Sherpa (Canada Only) Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1625

$190.77

11013

ELEMENT-AIR FILTER

11013-1265

$12.93

11060

GASKET,AIR FILTER

11060-1773

$8.49

11060A

GASKET,AIR FILTER CAP

11060-1799

$7.61

11065

CAP,AIR FILTER

11065-1066

$15.41

11065A

CAP,AIR FILTER

11065-1191

$23.31

13091

HOLDER

13091-1989

$27.54

13270

PLATE

13270-1880

$5.78

14037

SCREEN

14037-1236

$18.75

14073

DUCT,AIR INTAKE

14073-1689

$31.85

14073A

DUCT,AIR OUTLET

14073-1709

Unavailable

92009

SCREW,TAPPING

92009-1113

$2.99

92009A

SCREW,6X28,BLACK

92009-1400

$4.18

92037

CLAMP

92037-1554

$10.32

92037A

CLAMP

92037-1860

Unavailable

92037B

CLAMP,TUBE

92037-213

$3.29

92066

PLUG,DRAIN

92066-1475

$6.89

92150

BOLT,6X12

92150-1435

$3.29

92170

CLAMP

92170-1760

$8.85

92170A

CLAMP,11.6MM

92170-1796

$7.53

92172

SCREW,6X18

92172-0002

$1.98

92191

TUBE,BREATHER

92191-1128

$17.71

92191A

TUBE,8X12X50

92191-1172

$3.27
