2004 Kawasaki Super Sherpa (Canada Only) Carburetor Diagram

← All diagrams

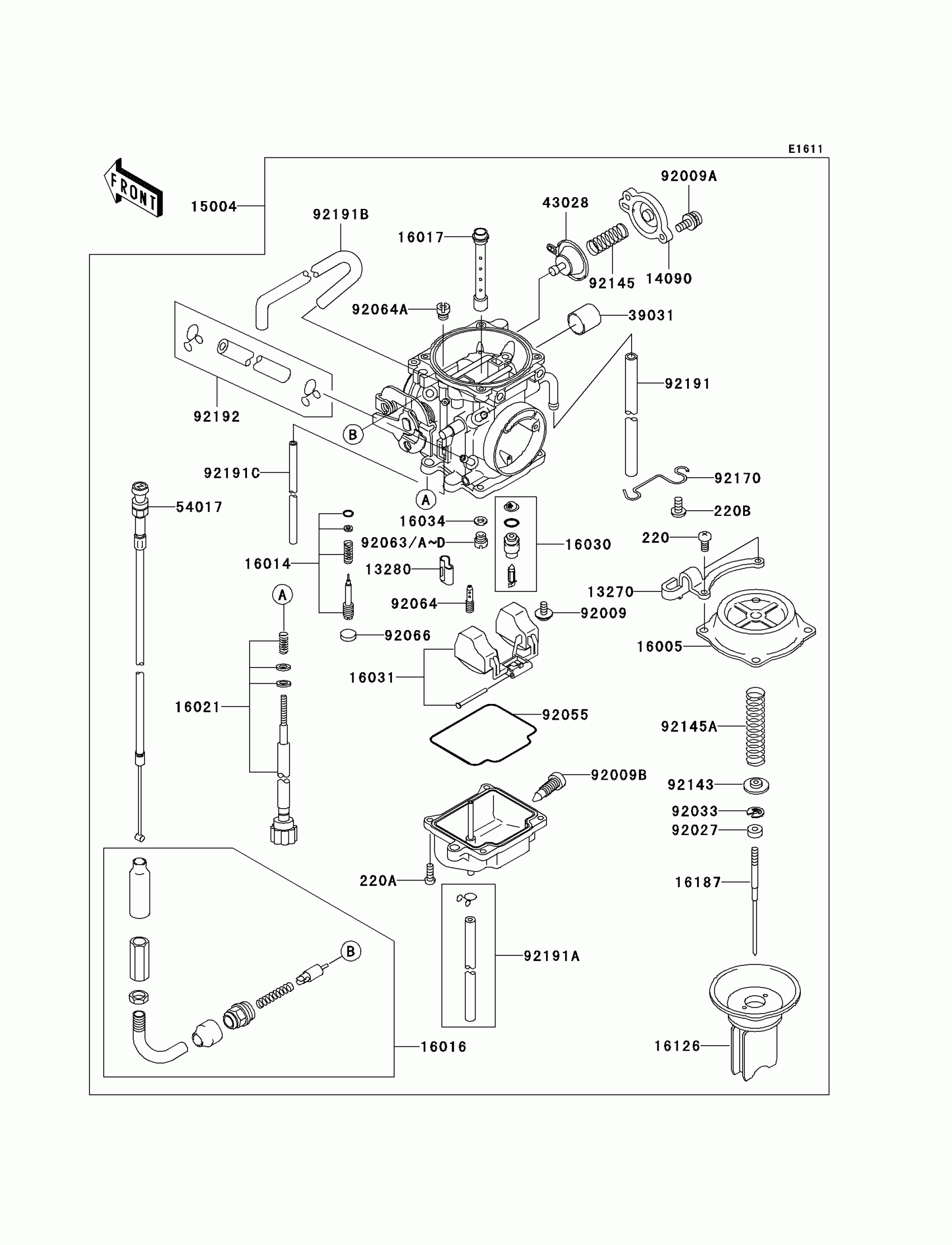

Find the part on the Carburetor diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Super Sherpa (Canada Only) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13270

PLATE,CHAMBER TOP

13270-1907

1
Out of stock

13280

HOLDER

13280-1077

1
Out of stock

14090

COVER,AIR CUT VALVE

14090-1873

1
Out of stock

15003

CARBURETOR-ASSY

15003-1641

1
Out of stock

16005

TOP-CHAMBER,MIXING

16005-1080

1
Out of stock

16016

PLUNGER,STARTER

16016-1111

1
Out of stock

16017

JET-NEEDLE,P-3M

16017-1410

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1215

1
Out of stock

16030

VALVE-FLOAT

16030-1085

1
Out of stock

16031

FLOAT

16031-1091

1
Out of stock

16034

WASHER,MAIN JET

16034-001

1
Out of stock

16126

VALVE,VACUUM

16126-1347

1
Out of stock

16187

NEEDLE-JET,4C16

16187-1124

1
Out of stock

39031

CAP-END,CARBURETOR

39031-1007

1
Out of stock

43028

DIAPHRAGM,COASTING RICHER

43028-1026

1
Out of stock

54017

CABLE-STARTER

54017-1196

1
Out of stock

92009

SCREW

92009-1810

1
Out of stock

92009A

SCREW

92009-1811

1
Out of stock

92009B

SCREW,DRAIN

92009-1812

1
Out of stock

92027

COLLAR,THROTTLE VALVE

92027-1103

1
Out of stock

92033

RING-SNAP

92033-1290

1
Out of stock

92055

RING-O,FLOAT CHAMBER

92055-1575

1
Out of stock

92063

JET-MAIN,#A127.5

92063-1100

1
Out of stock

92063A

JET-MAIN,#A122.5

92063-1101

1
Out of stock

92063B

JET-MAIN,#A125

92063-1102

1
Out of stock

92063C

JET-MAIN,#A130

92063-1103

1
Out of stock

92063D

JET-MAIN,#A132.5

92063-1104

1
Out of stock

92064

JET-PILOT,#A17.5

92064-1183

1
Out of stock

92064A

JET-PILOT,#90

92064-1205

1
Out of stock

92066

PLUG,PILOT AIR SCREW

92066-1501

1
Out of stock

92143

COLLAR

92143-1986

1
Out of stock

92145

SPRING,AIR CUT VALVE

92145-1103

1
Out of stock

92145A

SPRING,VACUUM VALVE

92145-1104

1
Out of stock

92170

CLAMP

92170-1816

1
Out of stock

92191

TUBE,5X8X400

92191-1199

1
Out of stock

92191A

TUBE,3X7X350

92191-1200

1
Out of stock

220

SCREW-PAN-CROS

220D0410

1
Out of stock

220A

SCREW-PAN-CROSS

220D0412

1
Out of stock

220B

SCREW-PAN-CROS,5X10

220D0510

1
Out of stock

92191B

TUBE,5.3X10.5X175

92191-1201

1
Out of stock

92191C

TUBE,L=290

92191-1202

1
Out of stock

92191D

TUBE,3X5X350

92191-1203

1
Out of stock
