2002 Ski-Doo Summit 600/700/800 Bottom PAN Diagram

← All diagrams

Find the part on the Bottom PAN diagram for your 2002 Ski-Doo Summit 600/700/800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

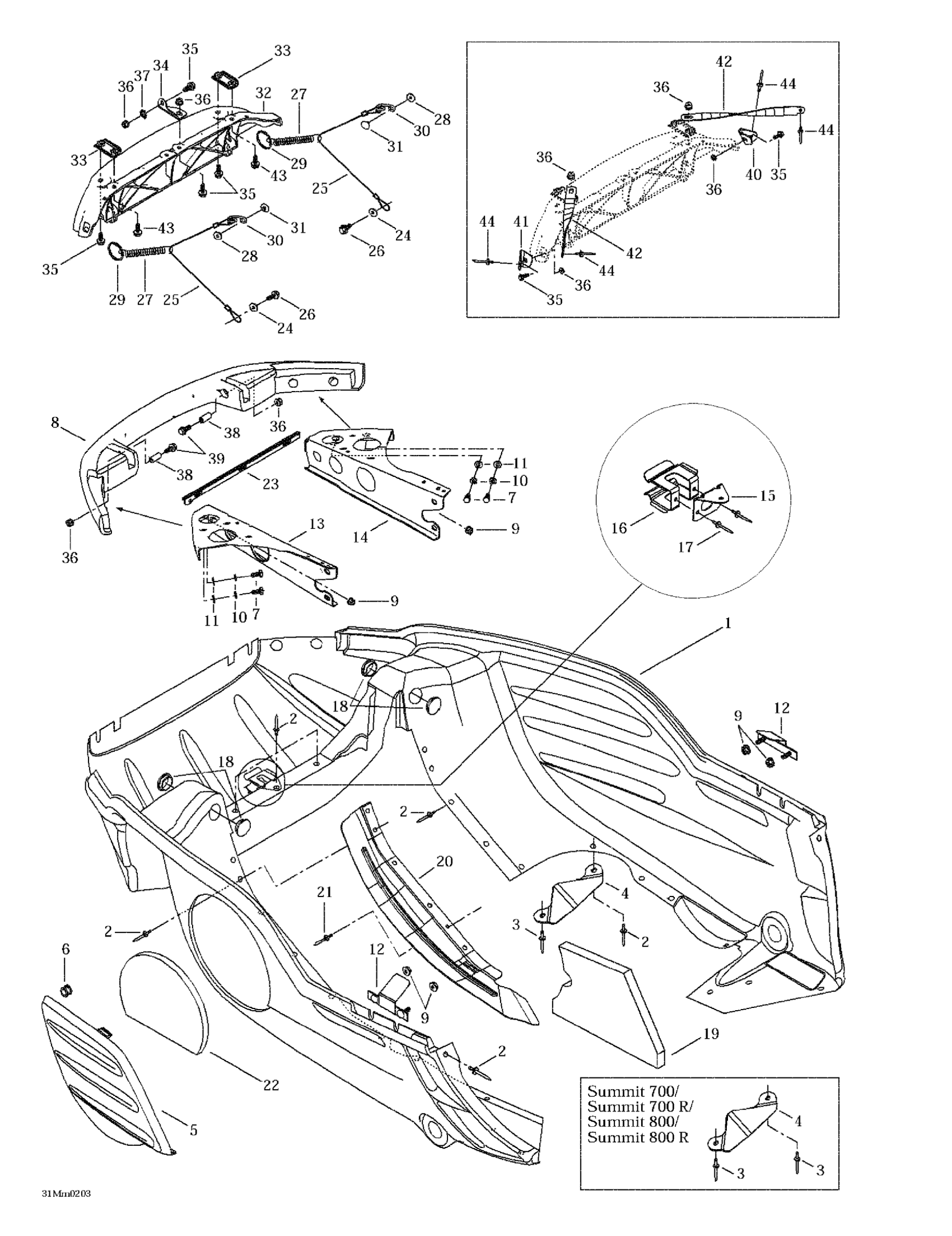

2002 Ski-Doo Summit 600/700/800 Bottom PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Deep Black, Bottom Pan

502006633

—
Out of stock

Bottom Pan | B-190 YELLOW

502006632

—
Out of stock

Labrador Blue, Bottom Pan

502006635

—
Out of stock

2

Pop Rivet 3/16" | DS 650 X

293150104

27
Out of stock

Pop Rivet 3/16"

390906800

27
Out of stock

Pop Rivet 3/16"

390906800

27
Out of stock

3

Pop Rivet 3/16" | DS 650 X

293150104

2
Out of stock

4

Snow Deflector | RENEGADE MX Z 600. MX Z 800.

502006637

—
Out of stock

5

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

—
Out of stock

Bottom Pan Door | B-190 YELLOW

502006511

—
Out of stock

Labrador Blue, Bottom Pan Door

502006641

—
Out of stock

6

Grommet

414036300

2
Out of stock

7

Hex. Screw M6 X 14

207161444

4
Out of stock

8

Bumper, Black

502006719

1
Out of stock

Bumper

502006535

—
Out of stock

Labrador Blue, Bumper

502006642

—
Out of stock

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

6
Out of stock

10

4

$0.52

In stock

11

Flat Washer

224061121

4
Out of stock

12

LH Bracket

502006645

—
Out of stock

13

LH SUPPORT - Call your local BRP dealership

502006597

—
Out of stock

14

RH Support

502006596

—
Out of stock

15

Belt Support

502006599

—
Out of stock

16

Bracket

517281905

1
Out of stock

17

Pop Rivet 3/16"

390402400

2
Out of stock

18

Black, Nylon Cap

414916600

4
Out of stock

19

Bottom Foam

502006558

—
Out of stock

20

Bottom Pan Protector | 700 / WITH GRILL

502006593

—
Out of stock

21

Pop Rivet 3/16"

390402200

1
Out of stock

22

Bottom Pan Door Foam

502006559

—
Out of stock

23

Bottom Pan Reinforcement

502006647

—
Out of stock

24

Washer | DS 650 X

391301600

2
Out of stock

25

RETAINER CABLE - Call your local BRP dealership

415093900

—
Out of stock

26

Not Available As Spare Part - Friction Washer

—
Out of stock

27

Spring

415043300

—
Out of stock

28

Washer

517124300

2
Out of stock

29

RING - Call your local BRP dealership

415058300

—
Out of stock

30

Bracket

517262800

—
Out of stock

31

Pop Rivet 3/16" | DS 650 X

293150104

2
Out of stock

32

Hinge

517302631

1
Out of stock

33

HINGE SIDE PLATE - Call your local BRP dealership

517302176

—
Out of stock

34

Hinge Center Plate

517302045

—
Out of stock

35

Hex. Flange Screw M6 X 16

207661654

6
Out of stock

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

8
Out of stock

37

Lock Washer Serrated M6

250200041

1
Out of stock

38

BUSHING - Call your local BRP dealership

517302179

—
Out of stock

39

Hex. Flange Screw M6 X 35

207663544

2
Out of stock

40

RH Corner Support

517302254

—
Out of stock

41

LH Corner Support

517302255

—
Out of stock

42

Hood Clamp

517302256

—
Out of stock

43

Hex. Flange Screw M6 X 25

207662544

2
Out of stock

44

Pop Rivet 3/16"

390406500

4
Out of stock
