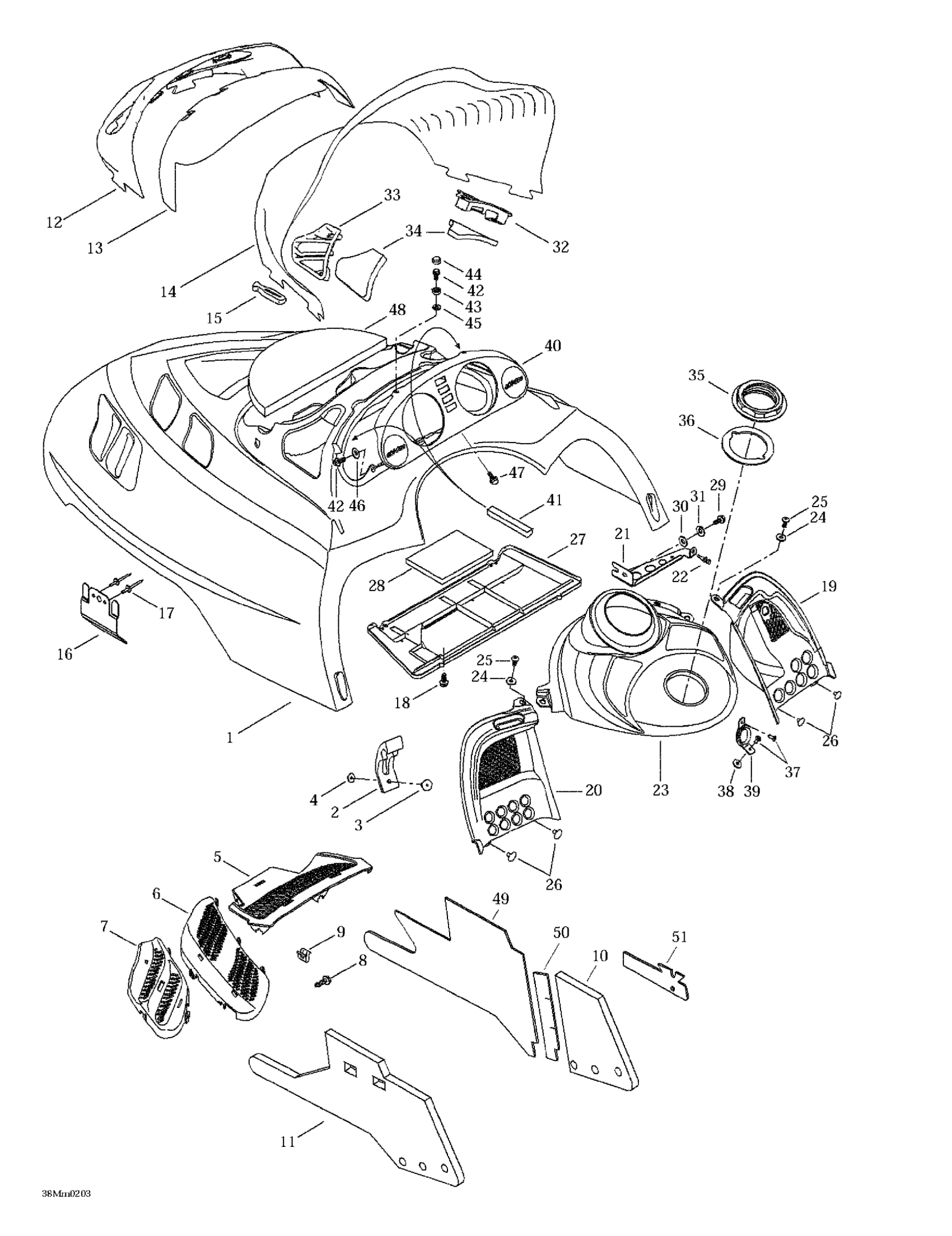

Find the part on the CAB, Console diagram for your 2002 Ski-Doo Summit 600/700/800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Ski-Doo Summit 600/700/800 CAB, Console Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Deep Black, Hood

517302527

—
Out of stock

Hood (Red) B-215

517302531

—
Out of stock

Hood (Blue (B-225))

517302532

—
Out of stock

Hood (Black/Yellow) B-160/B-190

517302612

—
Out of stock

Hood (Olympic) B-190/ B-228 | (Yellow - Orange) Grand Touring 700.

517302683

—
Out of stock

2

Hood Latch

570027100

2
Out of stock

3

Pop Rivet 3/16" | DS 650 X

293150104

2
Out of stock

4

Washer

517124300

2
Out of stock

5

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

—
Out of stock

6

RH Intermediate Grill, Black

517302671

—
Out of stock

LH Intermediate Grill, Black

517302672

—
Out of stock

7

RH Side Grille

517302034

—
Out of stock

LH Side Grille

517302036

—
Out of stock

8

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

—
Out of stock

9

Edge Clip

517302785

5
Out of stock

10

RH Side Foam

517302675

—
Out of stock

11

LH Side Foam

517302630

—
Out of stock

12

Headlamp Moulding

517302582

—
Out of stock

Headlamp Moulding

517302648

—
Out of stock

Headlight moulding Red ( B-212 )

517302649

—
Out of stock

13

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

—
Out of stock

14

Medium Windshield | OPT on LEG 550F, GT 550F, 380F, GT 380F

517302022

1
Out of stock

15

Windshield Latch

570023800

8
Out of stock

16

Hood Guide

517302615

—
Out of stock

17

Pop Rivet 3/16”

390910000

4
Out of stock

18

Hex. Plastic Screw M4.8 X 16

243141630

4
Out of stock

19

RH CONSOLE - Call your local BRP dealership

517302005

—
Out of stock

RH Console

517302561

—
Out of stock

20

LH CONSOLE - Call your local BRP dealership

517302006

—
Out of stock

21

RH Console Support

517302621

—
Out of stock

22

Rubber Stopper

517302624

—
Out of stock

23

Deep Black, Center Console | (Renegade) MX Z 600. MX Z 700. MX Z 800.

517302635

—
Out of stock

2000 Yellow, Center Console | (Renegade Olympic) MX Z 700.

517302684

—
Out of stock

24

Washer | DS 650 X

391301600

2
Out of stock

25

2

$0.83

In stock

26

Pop Rivet 3/16"

390406500

4
Out of stock

27

Air Intake Plate

517302578

—
Out of stock

28

Secondary Foam

517302425

—
Out of stock

29

Hex. Flange Screw M6 X 12

210261250

1
Out of stock

30

Flat Washer 6 mm

234061410

1
Out of stock

31

1

$0.52

In stock

32

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

—
Out of stock

33

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

—
Out of stock

34

Air Intake Foam

517302151

—
Out of stock

35

CONSOLE NUT - Call your local BRP dealership

517302043

—
Out of stock

36

Gasket

293250029

1
Out of stock

37

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

—
Out of stock

38

Rubber Stopper

517302286

—
Out of stock

39

Rope Guide

517302129

—
Out of stock

40

Indicator Support (STD) | Grand Touring 500. Grand Touring 600. Grand Touring 700.

572098604

—
Out of stock

41

Foam

517302420

—
Out of stock

42

Screw K40 X 10

241140060

4
Out of stock

43

RETAINER CAP - Call your local BRP dealership

414436800

—
Out of stock

44

BLACK SNAP CAP - Call your local BRP dealership

414436900

—
Out of stock

45

Flat Washer 4 mm, Stainless

234042600

2
Out of stock

46

Washer

517124300

2
Out of stock

47

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

—
Out of stock

48

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

—
Out of stock

49

Reflective Sheet

514053428

—
Out of stock

50

Not Available As Spare Part - Friction Washer

—
Out of stock

51

Reflective Sheet | FOR RIM CAB ONLY

514053391

—
Out of stock
