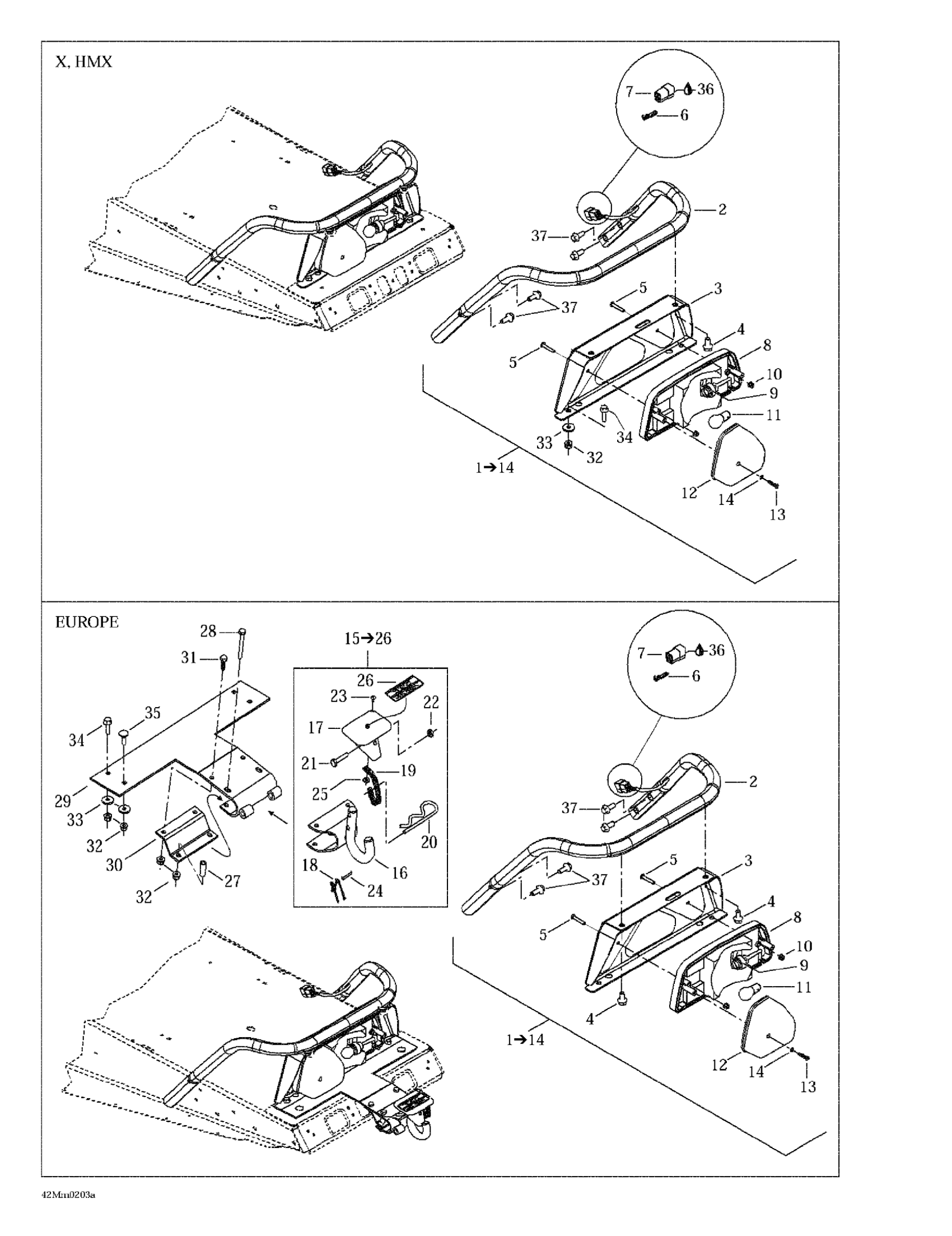

Ski-Doo Summit 600/700/800, 2002 Luggage Rack (X, Hmx, Europe) Diagram

#

Description
Price

1

Luggage Rack Kit | Includes 1 - 14. Summit 600. Summit 800.

861779000

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

REAR LIGHT SUPPORT - Call your local BRP dealership

511000187

Unavailable

4

Hex. Flange Screw M8 X 16

207681644

Unavailable

5

SCREW M5 X 30 - Call your local BRP dealership

205453046

Unavailable

6

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

7

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

8

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

9

Socket

511000198

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

Unavailable

11

Bulb

520000758

$7.49

12

Lens

414513700

Unavailable

13

Phillips Tapping Screw M3.9 X 25

209632540

Unavailable

14

Washer - Call your local BRP dealership

414516400

Unavailable

15

HITCH ASS?Y KIT - Call your local BRP dealership | Includes 49 to 60 / Europe

861778700

Unavailable

16

Hitch | Europe

517199300

Unavailable

17

Hitch Protector | Europe

517152700

Unavailable

18

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Hair Pin

114045200

Unavailable

21

Hex. Screw M6 X 30

207063044

Unavailable

22

Elastic Stop Nut M6

232561414

Unavailable

23

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

24

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Security Label, Hitch

516001243

Unavailable

27

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

28

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

29

Fixation (Europe) | Summit 600. Summit 800.

511000192

Unavailable

30

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

31

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Flat Washer

224061201

Unavailable

Flat Washer

224061201

Unavailable

34

Hex. Flange Screw M6 X 20

207662044

Unavailable

35

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

36

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

37

Hex. Flange Screw M8 X 20

207682044

Unavailable
