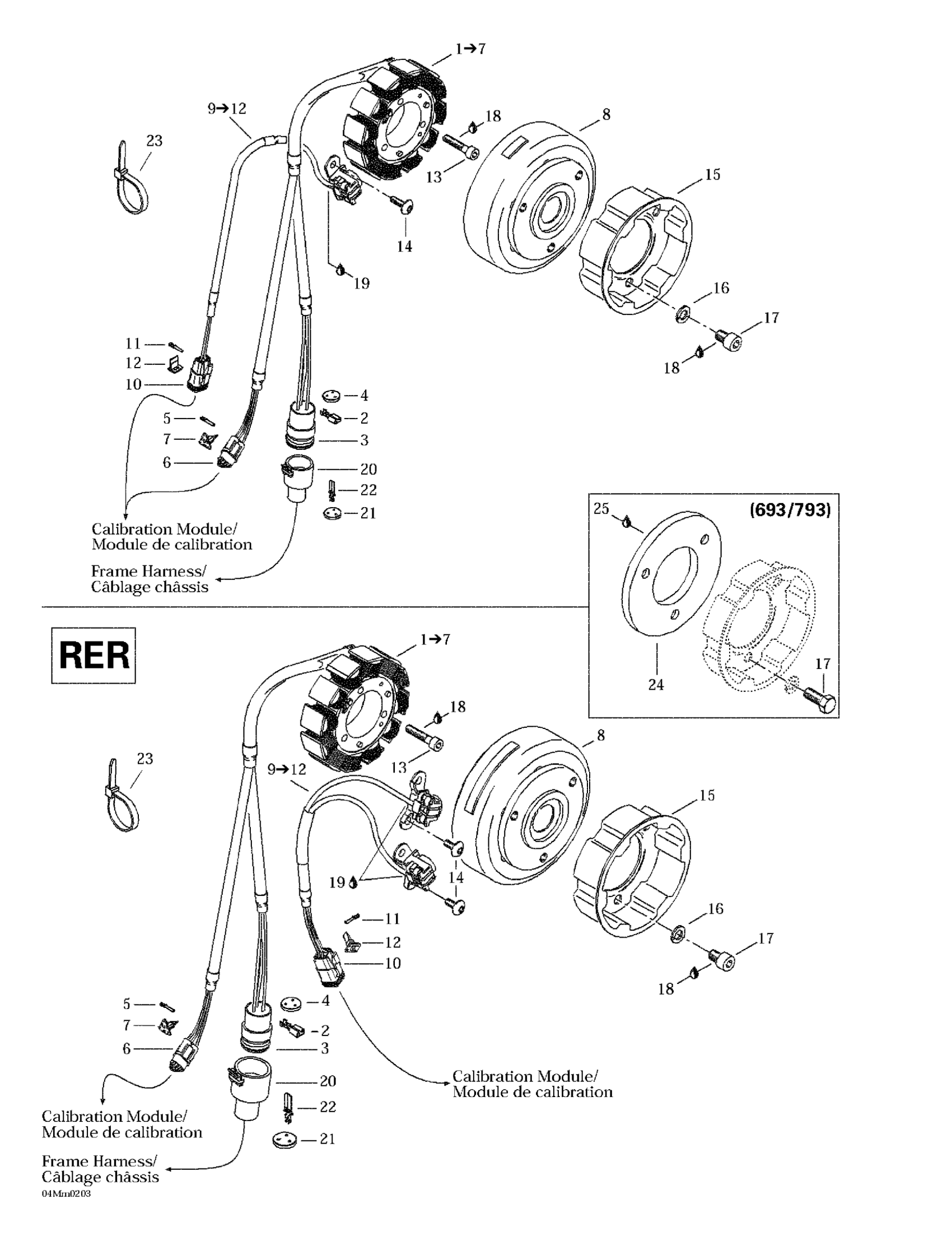

Ski-Doo Summit 600/700/800, 2002 Magneto (12V, 290W) Diagram

#

Description
Price

1

STATOR PLATE - Call your local BRP dealership | Includes 1 - 7.

410922936

Unavailable

2

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

3

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

4

SEAL - Call your local BRP dealership

409208500

Unavailable

5

Female Terminal

278000632

Unavailable

6

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

7

Female Lock

409207200

$3.48

8

Flywheel

410922937

Unavailable

Flywheel (RER)

410922939

Unavailable

9

Pick-up Ass'y | Includes 9 - 12.

410922938

Unavailable

PICK-UP ASS'Y - Call your local BRP dealership | Includes 10 - 13.

410922940

Unavailable

10

Female Connector, 2 Circuits

409207300

$9.60

Male Connector, 4 Circuits | CE

278000739

$14.92

11

Female Terminal

278000632

Unavailable

Female Terminal

278000632

Unavailable

12

Female Lock (2 circuits)

515175708

Unavailable

Male Lock, 4 Circuits | CE

278000738

$2.91

13

Socket Head Screw M6 X 30

205063044

Unavailable

14

Torx Screw M6 X 16

420640324

$2.06

Torx Screw M6 X 16

420640324

$2.06

15

Starting Pulley

420852590

$28.43

Starting Pulley | Manual Start This part replaces 420852532.

420852533

Unavailable

16

Washer-Lock Din.128

420945832

Unavailable

17

Socket Head Screw M8 X 12

420841520

$1.68

Hex. Screw M8 X 20

207182044

$0.61

18

Loctite 243, 10 ml

293800060

$20.77

19

Not Available As Spare Part - Friction Washer

Unavailable

20

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

21

SEAL - Call your local BRP dealership

409208500

Unavailable

22

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

24

Flywheel

420866756

Unavailable

25

Sealant Loctite 648

219703000

Unavailable
