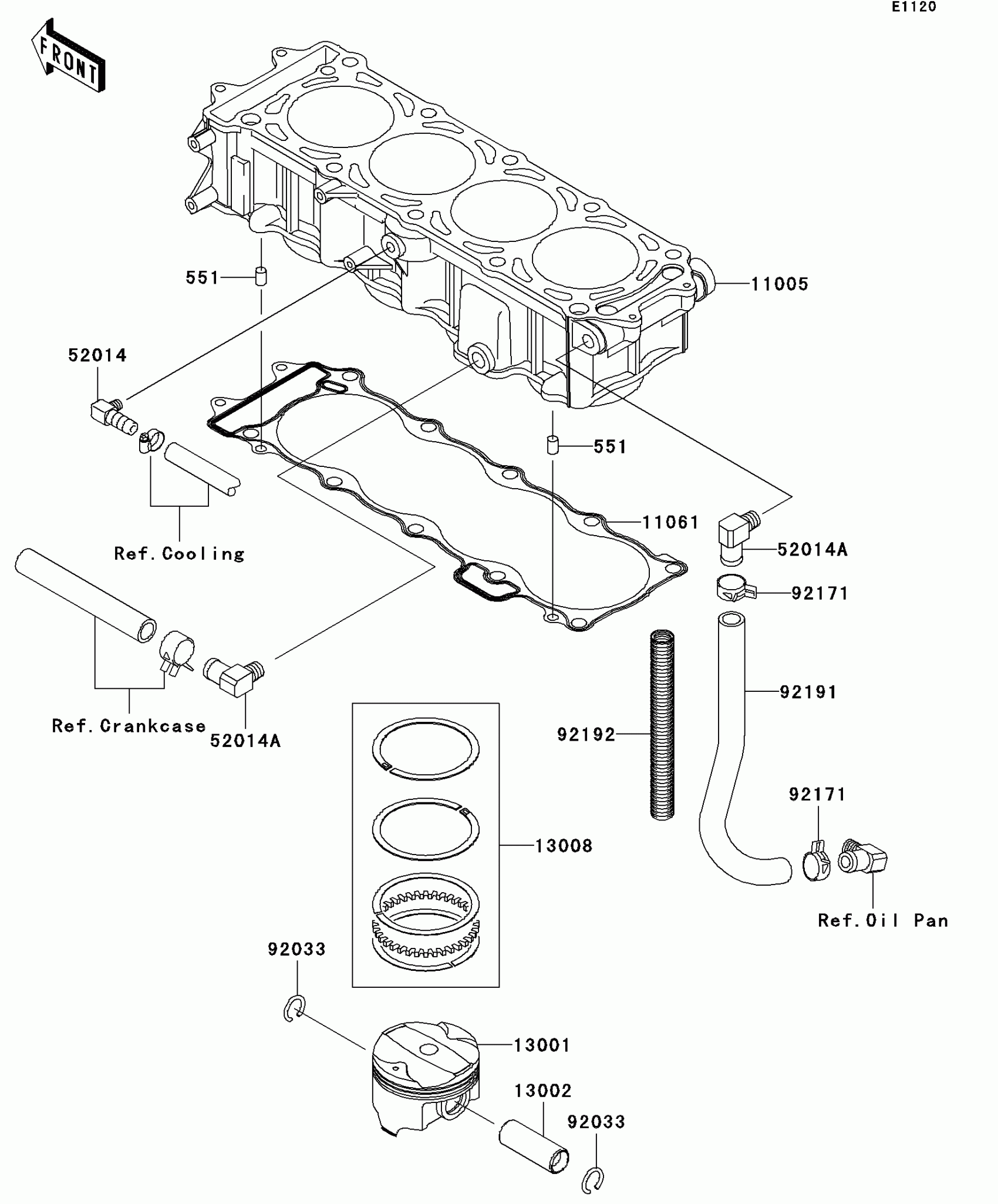

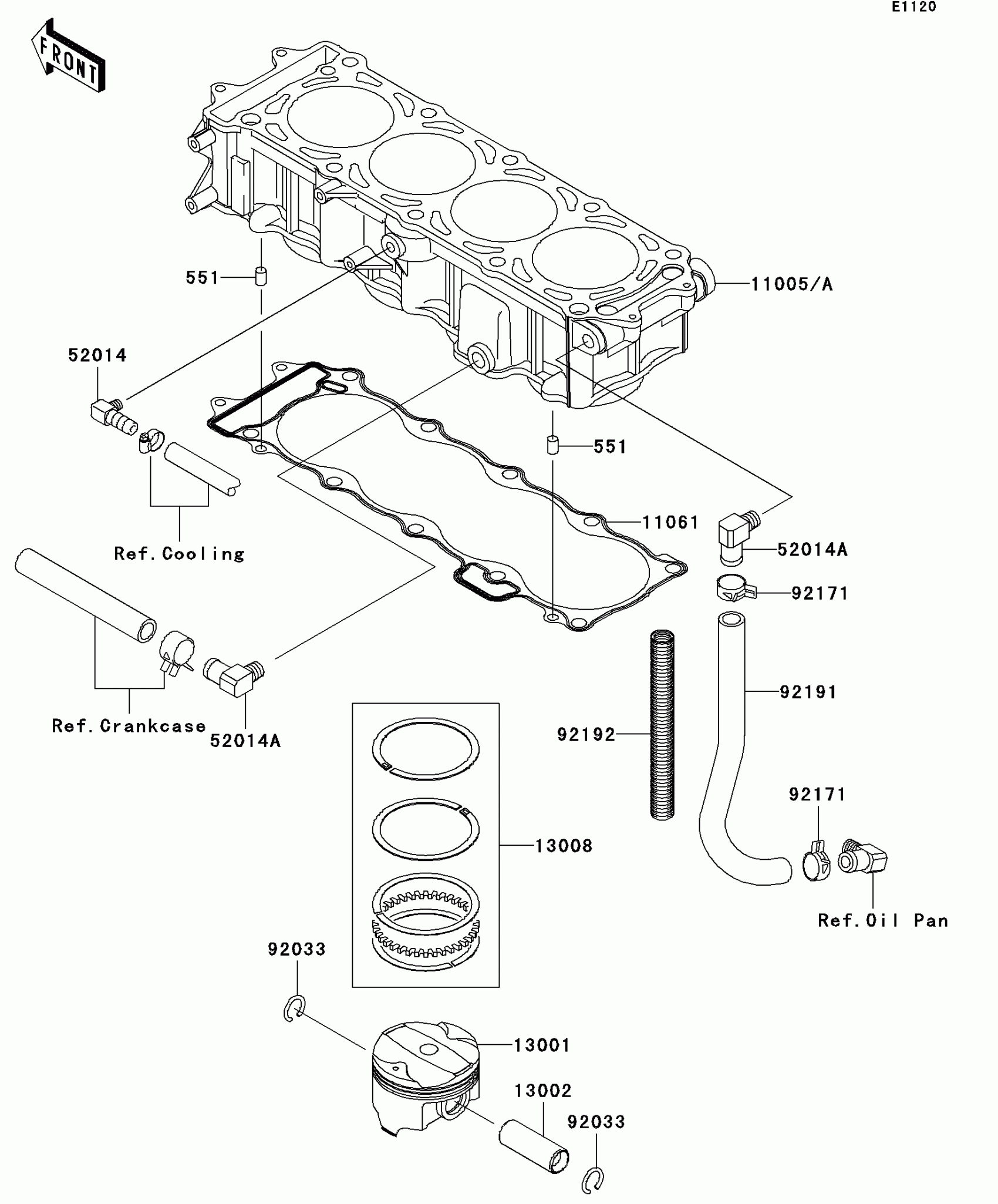

Find the part on the Cylinder/piston diagram for your 2004 Kawasaki STX-12F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki STX-12F Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-3756

1
Out of stock

11005A

CYLINDER-ENGINE

11005-3758

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-3708

1
Out of stock

13001

PISTON-ENGINE

13001-3736

1
Out of stock

13002

PIN-PISTON

13002-3709

1
Out of stock

13008

RING-SET-PISTON

13008-1196

1
Out of stock

52014

ELBOW

52014-3708

1
Out of stock

52014A

ELBOW

52014-3717

1
Out of stock

92033

RING-SNAP

92033-1188

1
Out of stock

92171

CLAMP,TUBE

92171-3710

1
Out of stock

92191

TUBE,BREATHER

92191-3983

1
Out of stock

92192

TUBE,19.5X23.8X170

92192-3702

1
Out of stock

551

PIN-DOWEL

551R0812

1
Out of stock
