2004 Kawasaki STX-12F Cooling Diagram

← All diagrams

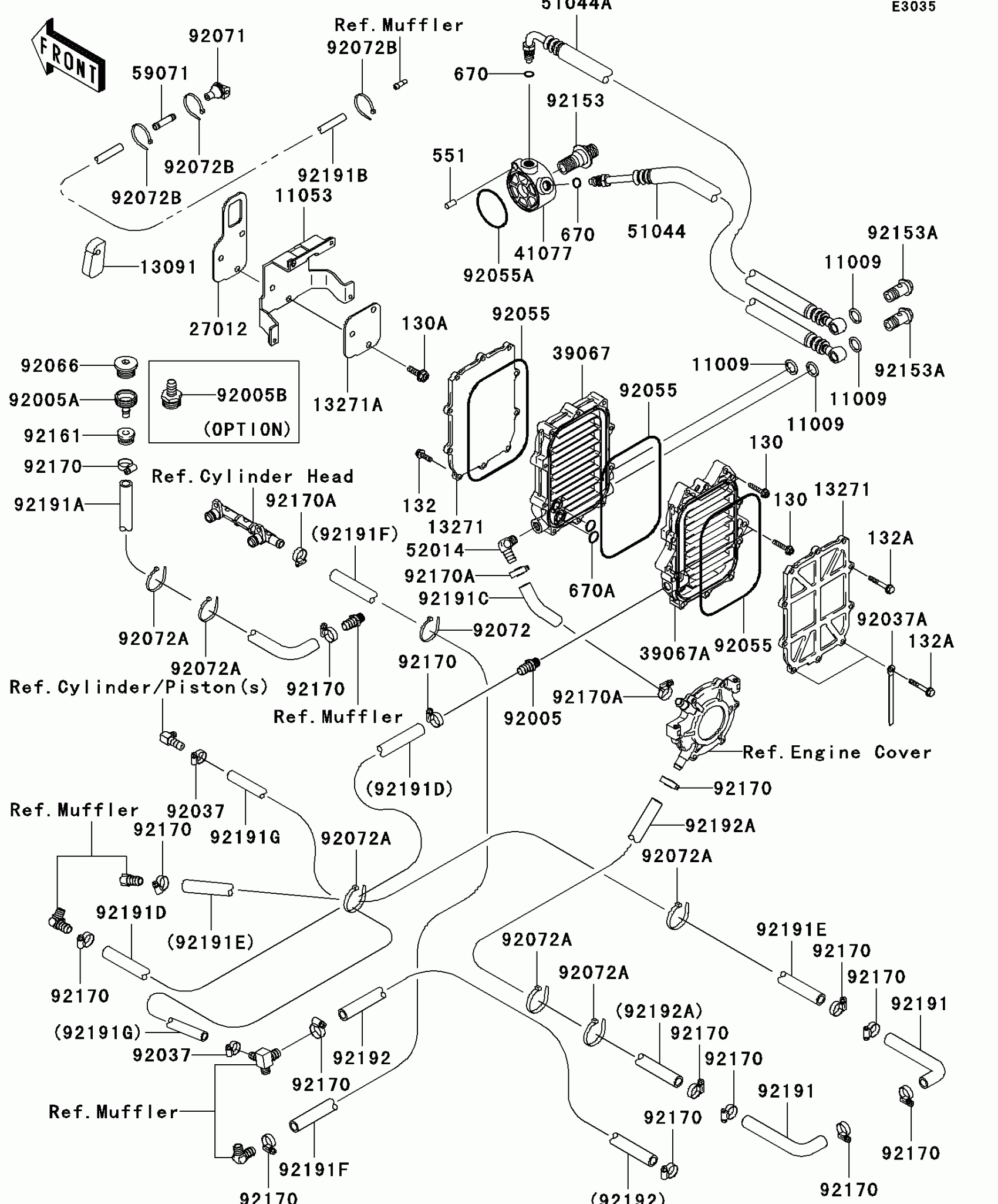

Find the part on the Cooling diagram for your 2004 Kawasaki STX-12F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki STX-12F Cooling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,14X19.5X1.4

11009-1461

1
Out of stock

11053

BRACKET,OIL COOLER

11053-3758

1

$95.89

In stock

13091

HOLDER

13091-3712

1

$4.14

In stock

13271

PLATE,OIL COOLER

13271-3866

1

$95.89

In stock

13271A

PLATE

13271-3896

1

$14.36

In stock

27012

HOOK

27012-3853

1
Out of stock

39067

COOLER-OIL,FR

39067-3702

1

$327.10

In stock

39067A

COOLER-OIL,RR

39067-3703

1

$327.10

In stock

41077

ADAPTER

41077-3702

1
Out of stock

51044

TUBE-ASSY,RETURN

51044-3703

1
Out of stock

51044A

TUBE-ASSY,FEED

51044-3704

1
Out of stock

52014

ELBOW

52014-3711

1
Out of stock

59071

JOINT

59071-3764

1
Out of stock

92005

FITTING

92005-3714

1
Out of stock

92005A

FITTING,FLUSH

92005-3744

1
Out of stock

92005B

FITTING,FLUSH

92005-3746

1
Out of stock

92037

CLAMP

92037-3726

1
Out of stock

92037A

CLAMP,L=100

92037-3736

1
Out of stock

92055

RING-O

92055-3766

1
Out of stock

92055A

RING-O,58X3

92055-3767

1
Out of stock

92066

PLUG,FLUSH

92066-3784

1
Out of stock

92071

GROMMET

92071-3815

1
Out of stock

92072

BAND,L=148

92072-3768

1
Out of stock

92072A

BAND,L=203.2

92072-3867

1
Out of stock

92072B

BAND,L=99

92072-3871

1
Out of stock

92153

BOLT

92153-3708

1
Out of stock

92153A

BOLT,14X28.5

92153-3709

1
Out of stock

92161

DAMPER

92161-1331

1
Out of stock

92170

CLAMP

92170-3718

1

$10.76

In stock

92170A

CLAMP

92170-3747

1

$10.76

In stock

92191

TUBE,PUMP-HULL

92191-3785

1
Out of stock

92191A

TUBE,CHAMBER-TAIL PIPE

92191-3850

1
Out of stock

92191B

TUBE,7X12X1590

92191-3874

1
Out of stock

92191C

TUBE,12X18X130

92191-3981

1
Out of stock

92191D

TUBE,12X18X380

92191-3991

1
Out of stock

92191E

TUBE,12X18X1070

92191-3992

1
Out of stock

92191F

TUBE,12X18X680

92191-3993

1
Out of stock

92191G

TUBE,12X18X680

92191-3994

1
Out of stock

92192

TUBE,12X18X720

92192-3703

1
Out of stock

92192A

TUBE,GENERATOR-HULL

92192-3707

1
Out of stock

130

BOLT-FLANGED

130Y0630

1
Out of stock

130A

BOLT-FLANGED,8X25

130Y0825

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

551

PIN-DOWEL

551R0816

1
Out of stock

670

O RING,8MM

670D1508

1
Out of stock

670A

O RING,16MM

670D2016

1
Out of stock
