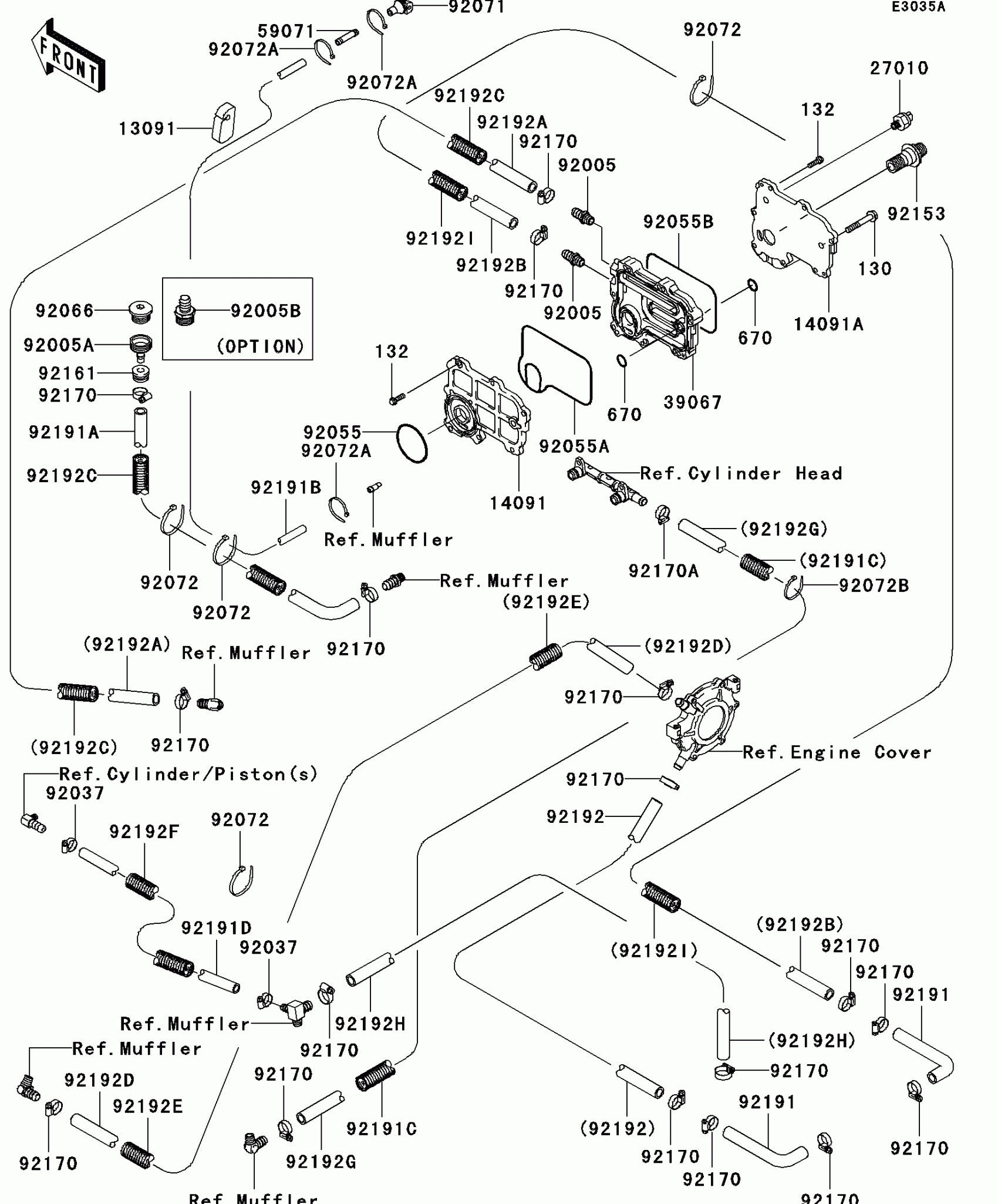

Kawasaki STX-12F Cooling(JTT20B-E002477-) Diagram

#

Description
Price

13091

HOLDER

13091-3712

$4.14

14091

COVER,INSIDE

14091-3755

$87.33

14091A

COVER,OUTSIDE

14091-3756

$87.33

27010

SWITCH,OIL PRESSURE

27010-3779

$60.66

39067

COOLER-OIL

39067-3704

$265.22

59071

JOINT

59071-3764

$7.51

92005

FITTING

92005-3714

$14.12

92005A

FITTING,FLUSH

92005-3744

$12.85

92005B

FITTING,FLUSH

92005-3748

$9.34

92037

CLAMP

92037-3726

$3.63

92055

RING-O,58X3

92055-3767

$4.65

92055A

RING-O

92055-3770

$17.77

92055B

RING-O

92055-3772

$9.92

92066

PLUG,FLUSH

92066-3784

Unavailable

92071

GROMMET

92071-3815

$4.14

92072

BAND,L=188

92072-1239

$1.30

92072A

BAND,L=99

92072-3871

$1.95

92072B

BAND,L=152

92072-3874

$3.75

92153

BOLT,OIL COOLER

92153-3713

$25.83

92161

DAMPER

92161-1331

$2.63

92170

CLAMP

92170-3718

$10.33

92170A

CLAMP

92170-3747

$10.33

92191

TUBE,PUMP-HULL

92191-3785

$24.29

92191A

TUBE,CHAMBER-TAIL PIPE

92191-3850

$78.22

92191B

TUBE,7X12X1590

92191-3874

Unavailable

92191C

TUBE,CORRUGATED,19.5X23.8X500

92191-3884

$3.51

92191D

TUBE,12X18X680

92191-3994

$49.86

92192

TUBE,GENERATOR-HULL

92192-3707

$55.68

92192A

TUBE, 12X18X1000

92192-3709

$24.75

92192B

TUBE, 12X18X1520

92192-3710

$35.92

92192C

TUBE,CORRUGATED,19.5X23.8X900

92192-3711

$4.75

92192D

TUBE,12X18X480

92192-3713

$12.61

92192E

TUBE,CORRUGATED,19.5X23.8X380

92192-3714

$2.19

92192F

TUBE,PROTECTOR,13.2X17.5X350

92192-3715

$2.22

92192G

TUBE,12X18X630

92192-3716

$56.99

92192H

TUBE,WATER MUFFLER-HULL

92192-3726

$56.31

92192I

TUBE,CORRUGATED,19.5X23.8X1400

92192-3732

$7.64

130

BOLT-FLANGED,8X50

130Y0850

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

670

O RING,14MM

670D2014

$4.18
