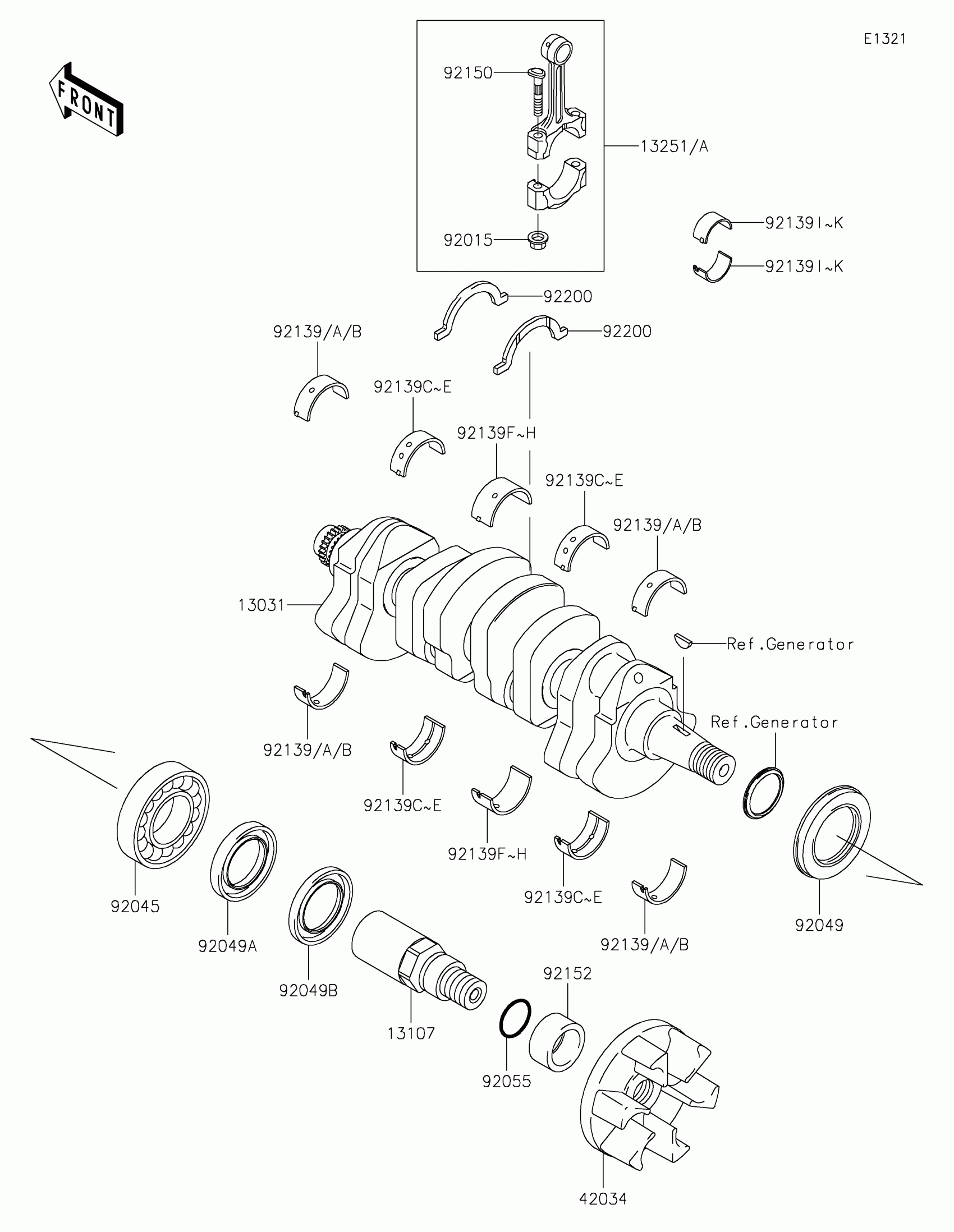

Kawasaki STX-12F Crankshaft Diagram

#

Description
Price

13031

CRANKSHAFT-COMP

13031-3740

$1,584.02

13107

SHAFT

13107-3785

$79.42

13251

ROD-ASSY-CONNECTING,K

13251-3701-KK

Unavailable

13251A

ROD-ASSY-CONNECTING,L

13251-3701-LL

$265.49

42034

COUPLING

42034-3711

$44.62

92015

NUT,CONNECTING ROD

92015-1559

$4.67

92045

BEARING-BALL,6208ZZ AS2S

92045-3739

$50.78

92049

SEAL-OIL,SD347626LHS

92049-3736

$19.48

92049A

SEAL-OIL,FPJ740628.5ZS

92049-3737

$20.86

92049B

SEAL-OIL,S40626NS

92049-3738

$11.17

92055

RING-O,27.7X2.4

92055-091

$4.67

92139

BUSHING,CONNECTING ROD,BLUE

92139-1091

$31.48

92139A

BUSHING,CONNECTING ROD,BLACK

92139-1092

Unavailable

92139B

BUSHING,CONNECTING ROD,BROWN

92139-1093

Unavailable

92139C

BUSHING,CRANKSHAFT,#1,BLUE

92139-3702

$30.05

92139D

BUSHING,CRANKSHAFT,#1,BLACK

92139-3703

Unavailable

92139E

BUSHING,CRANKSHAFT,#1,BROWN

92139-3704

Unavailable

92139F

BUSHING,CRANKSHAFT,#2,BLUE

92139-3705

$30.05

92139G

BUSHING,CRANKSHAFT,#2,BLACK

92139-3706

Unavailable

92139H

BUSHING,CRANKSHAFT,#2,BROWN

92139-3707

Unavailable

92139I

BUSHING,CRANKSHAFT,#3,BLUE

92139-3711

$30.05

92139J

BUSHING,CRANKSHAFT,#3,BLACK

92139-3712

Unavailable

92139K

BUSHING,CRANKSHAFT,#3,BROWN

92139-3713

Unavailable

92150

BOLT,CONNECTING ROD,9MM

92150-1362

$13.88

92152

COLLAR,OUTPUT RR,L=19.5

92152-3733

$37.36

92200

WASHER

92200-3789

$29.35
