1981 Yamaha SS440E Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

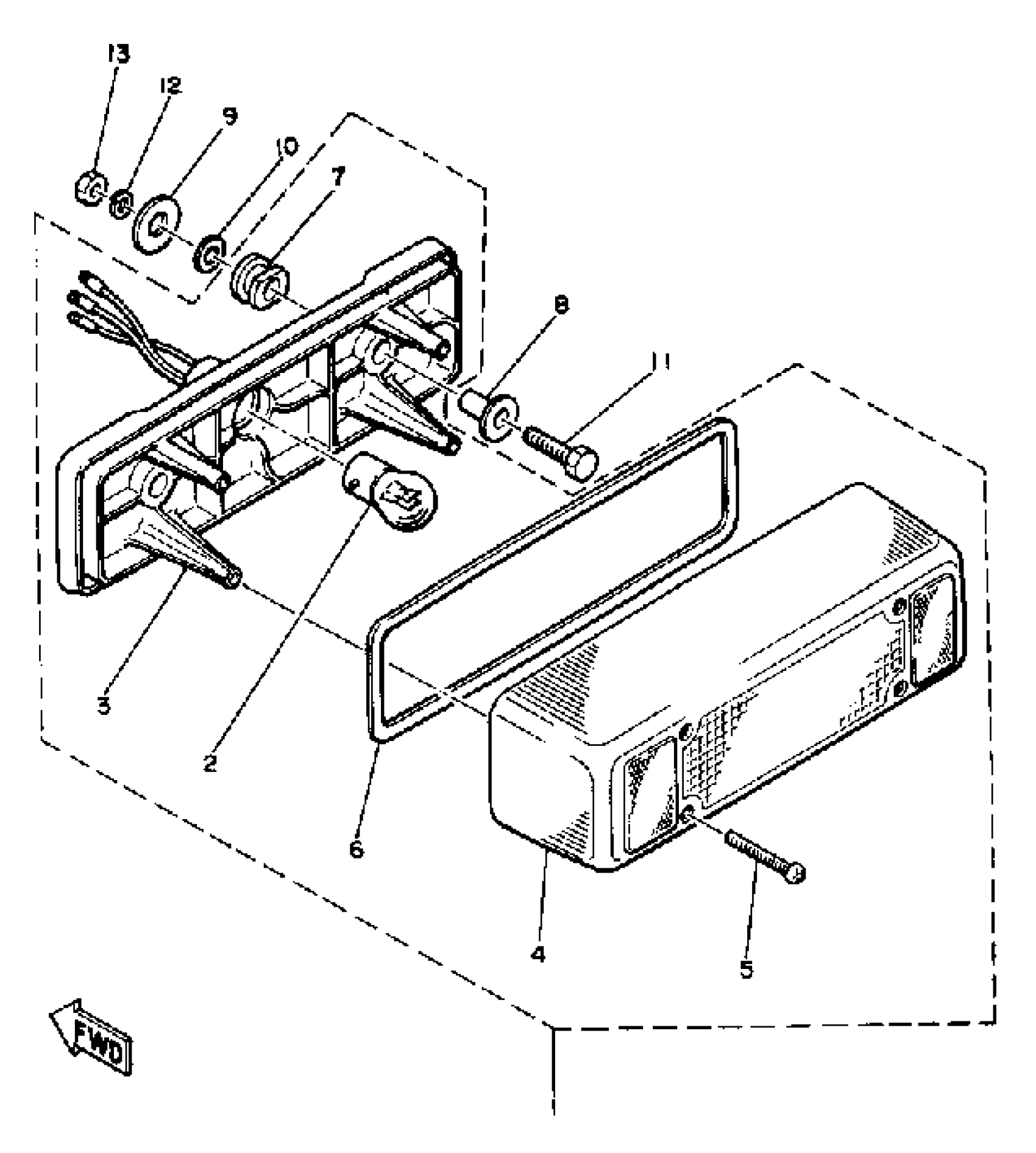

1981 Yamaha SS440E Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

8K4-84710-01-00

1

$71.98

In stock

2

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

3

BASE, TAILLIGHT

8K4-84711-01-00

1

$24.69

In stock

4

LENS, TAILLIGHT

8K4-84721-01-00

1

$37.66

In stock

5

1

$5.51

In stock

6

SEAL

3TJ-14457-00-00

—
Out of stock

7

GROMMET

8K4-84718-00-00

1
Out of stock

8

COLLAR

90387-06166-00

1
Out of stock

9

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

10

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

11

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
