1981 Yamaha SS440E Instrument Panel Diagram

← All diagrams

Find the part on the Instrument Panel diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

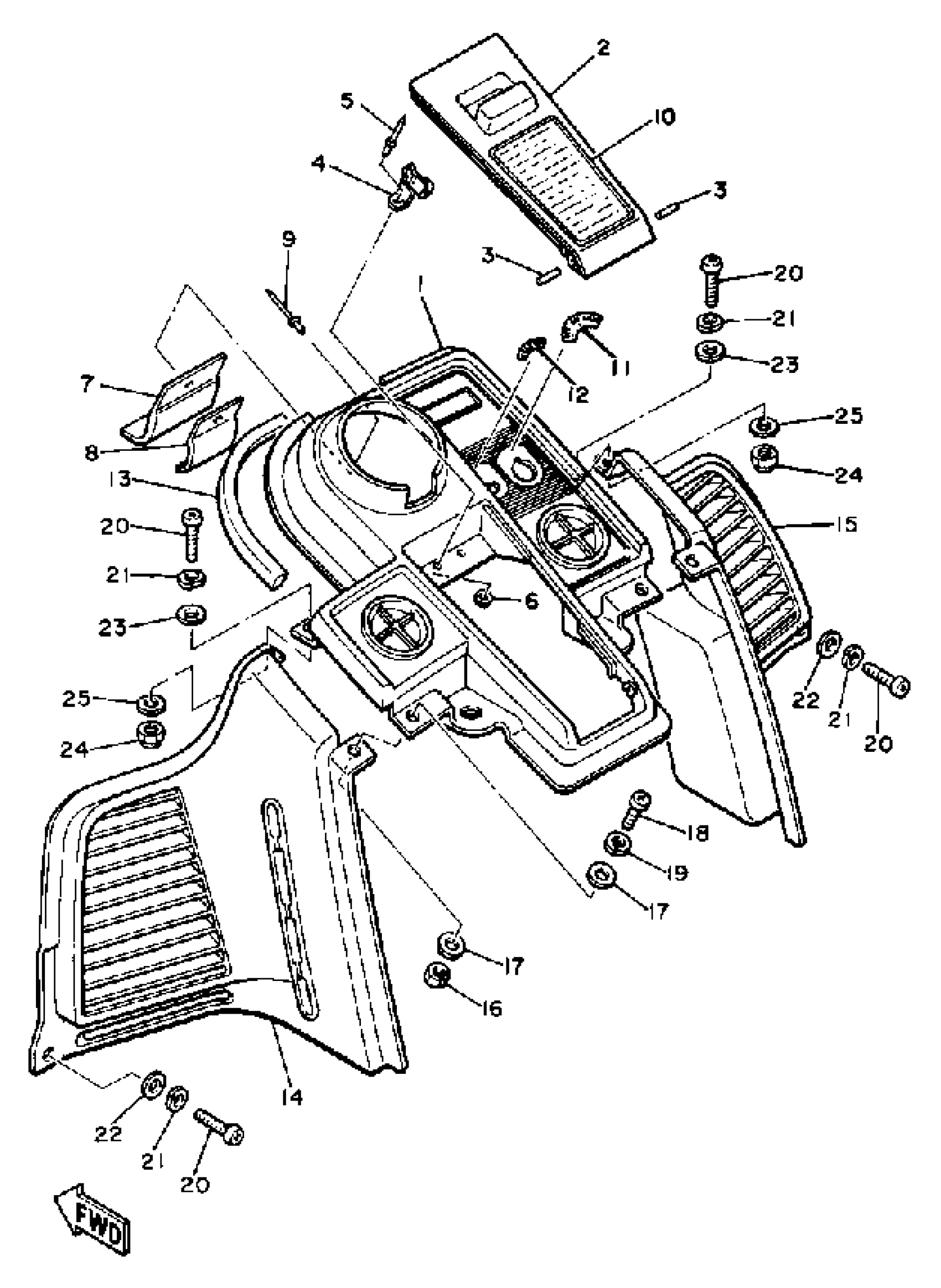

1981 Yamaha SS440E Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL,INSTRUMENT

8Y0-77711-00-00

1
Out of stock

2

PANEL, INSTRUMENT

8K4-77712-00-00

1
Out of stock

3

PIN, HINGE

8K4-77477-00-00

1
Out of stock

4

SPRING, SEAT BACK

821-24794-01-00

1
Out of stock

5

RIVET, BLIND (2YK)

90267-32146-00

1

$5.62

In stock

6

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

7

STRIP, WEATHER 1

8K4-77161-00-00

1
Out of stock

8

PLATE 1

8K4-77185-00-00

1
Out of stock

9

RIVET (856)

90267-48014-00

1
Out of stock

10

LABEL, WARNING 1

8K4-77761-00-00

1
Out of stock

11

INDICATOR 1

8K2-77741-01-00

1
Out of stock

12

INDICATOR 2

8K4-77742-00-00

1
Out of stock

13

STRIP, WEATHER 2

8K4-77162-00-00

1
Out of stock

14

LOUVER 1

8K4-77131-00-00

1
Out of stock

15

LOUVER 2

8K4-77132-00-00

1
Out of stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

18

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

19

WASHER, SPRING

92907-06100-00

—
Out of stock

20

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

21

WASHER, SPRING

92907-06100-00

—
Out of stock

22

WASHER, PLATE

90201-06086-00

—
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

25

WASHER, PLATE

90201-06045-00

—

$6.18

In stock
