1981 Yamaha SS440E Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

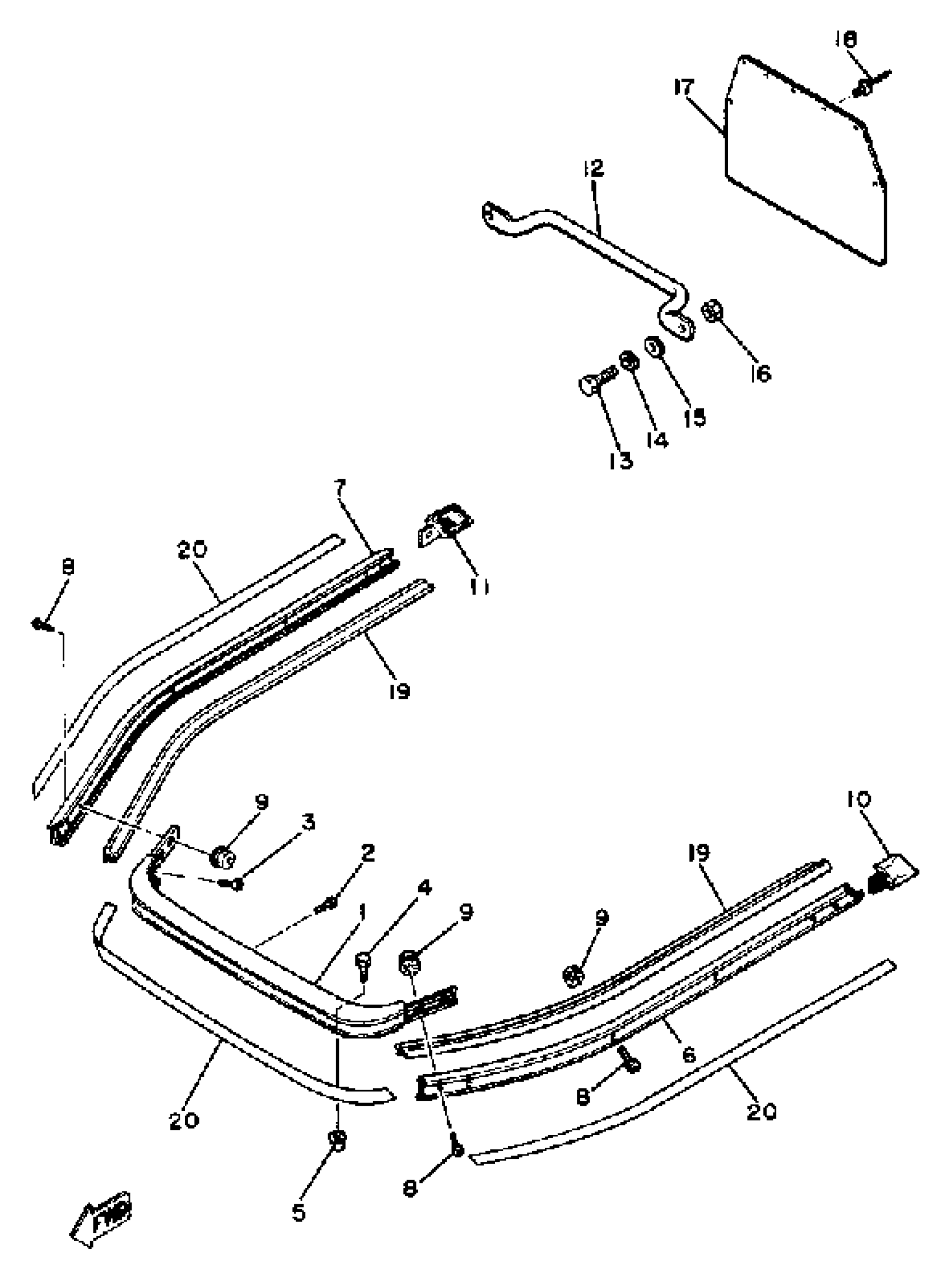

1981 Yamaha SS440E Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8L8-77511-00-00

1
Out of stock

2

SCREW, BIND (705)

98980-06016-00

1
Out of stock

3

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

4

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

BUMPER, FRONT 2

(8L8-77512-00-00)

1
Out of stock

7

BUMPER, FRONT 3

8L8-77513-00-00

1
Out of stock

8

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

9

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

10

END, BUMPER

8L8-77523-00-00

1
Out of stock

11

END, BUMPER

8L8-77524-00-00

1
Out of stock

12

BUMPER, REAR 1

8E7-77541-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-08020-00

1
Out of stock

14

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

15

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

16

NUT(6L2)

95333-08600-00

—

$3.20

In stock

17

FLAP

8V8-77595-00-00

1
Out of stock

18

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

19

BUSH, RUBBER 1

8K4-77515-01-00

1
Out of stock

20

STRIPE 3

(8K4-77283-00-00)

1
Out of stock
