1969 Yamaha SS396 Front Axle Diagram

← All diagrams

Find the part on the Front Axle diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

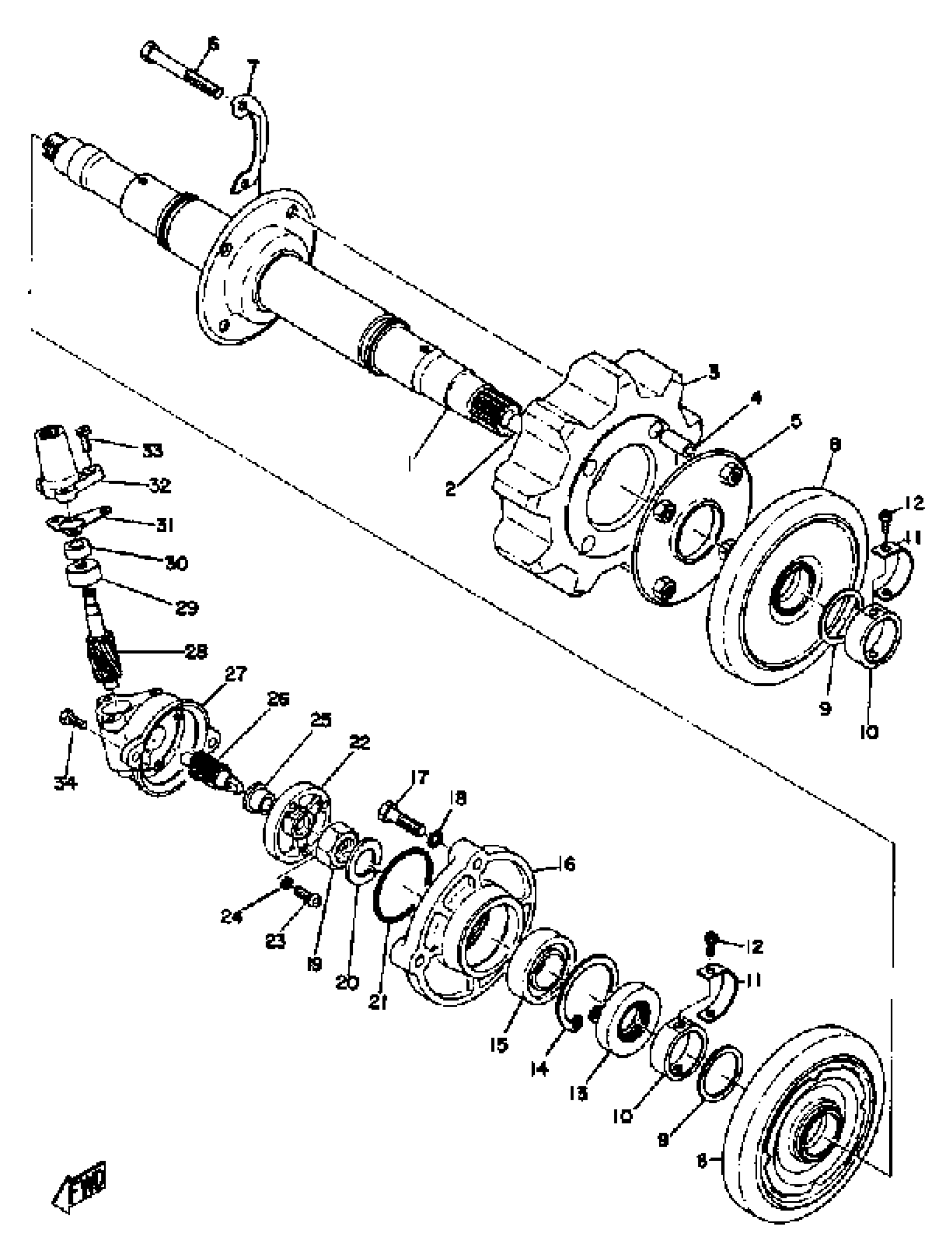

1969 Yamaha SS396 Front Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT AXLE

806-47510-00-00

1
Out of stock

2

PLUG

(802-47575-00-00)

1
Out of stock

3

WHEEL, SPROCKET 1

(806-47531-00-00)

1
Out of stock

4

COLLAR

90387-09072-00

1
Out of stock

5

RIM, SPROCKET WHL 2

(806-47522-00-00)

1
Out of stock

6

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

7

WASHER, LOCK

802-47517-00-00

1
Out of stock

8

GUIDE WHEEL

(806-47530-00-00)

1
Out of stock

9

WASHER (8H0)

90201-34683-00

1
Out of stock

10

COLLAR

(806-47536-00-00)

1
Out of stock

11

WASHER, LOCK

(806-47539-00-00)

1
Out of stock

12

SCREW, HEXAGON

90153-06004-00

1
Out of stock

13

OIL SEAL, SDD-TYPE

(93105-30014-00)

1
Out of stock

14

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

15

1

$35.25

In stock

16

HOUSING, FRONT AXLE

(803-47551-00-00)

1
Out of stock

17

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

NUT

90170-18089-00

1
Out of stock

20

WASHER(N15)

92907-18100-00

—

$7.09

In stock

21

O-RING (70E)

93210-54534-00

1

$5.46

In stock

22

JOURNAL

(809-47712-00-00)

1
Out of stock

23

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

24

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

25

BUSH, SOLID

90381-10003-00

1
Out of stock

26

GEAR, DRIVE

(809-47731-00-00)

1
Out of stock

27

HOUSING

(809-47711-00-00)

1
Out of stock

28

GEAR, DRIVEN

(809-47741-00-00)

1
Out of stock

29

BUSH

(803-47723-00-00)

1
Out of stock

30

OIL SEAL (9X15X4-256)

93104-09025-00

—

$5.46

In stock

31

GASKET

(803-47727-00-00)

1
Out of stock

32

COVER, HOUSING

(803-47721-00-00)

1
Out of stock

33

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

34

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock
