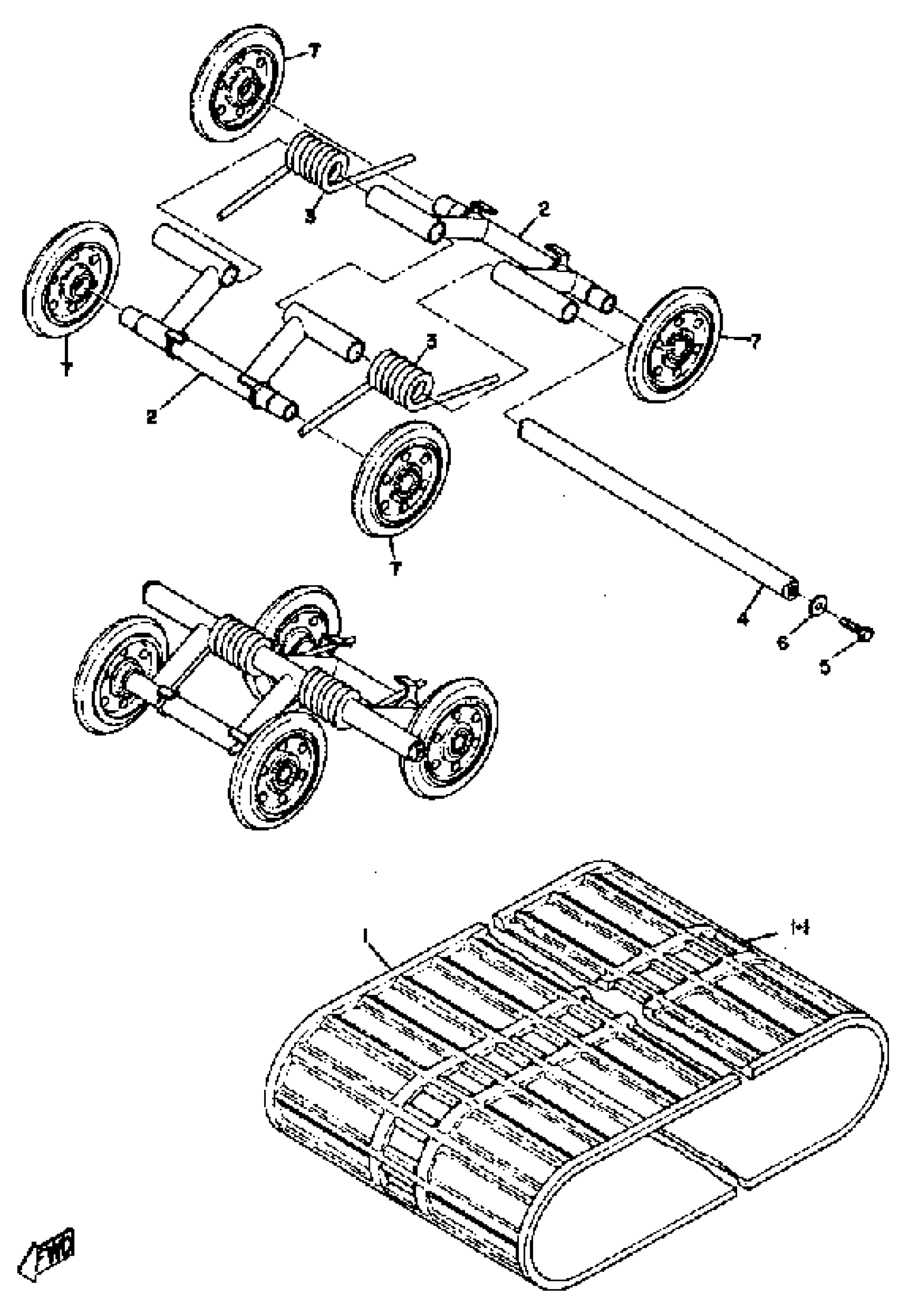

Find the part on the Track & Suspension Wheel diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SS396 Track & Suspension Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE, RNFCMNT

(806-47113-00-00)

1
Out of stock

1

TRACK ASSEMBLY

(861-47110-00-00)

1
Out of stock

2

ARM, PIVOT 1

(806-47331-01-00)

1
Out of stock

3

SPRING, TORSION (806-47335-00)

90508-70095-00

1
Out of stock

4

SHAFT, PIVOT

(802-47337-00-00)

1
Out of stock

5

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

6

WASHER, LOCK

(806-47347-00-00)

1
Out of stock

7

SUSPENSION WHL ASSEMBLY (810-47310-00)

8A9-47310-01-00

1
Out of stock
