1969 Yamaha SS396 Fuel Tank Diagram

← All diagrams

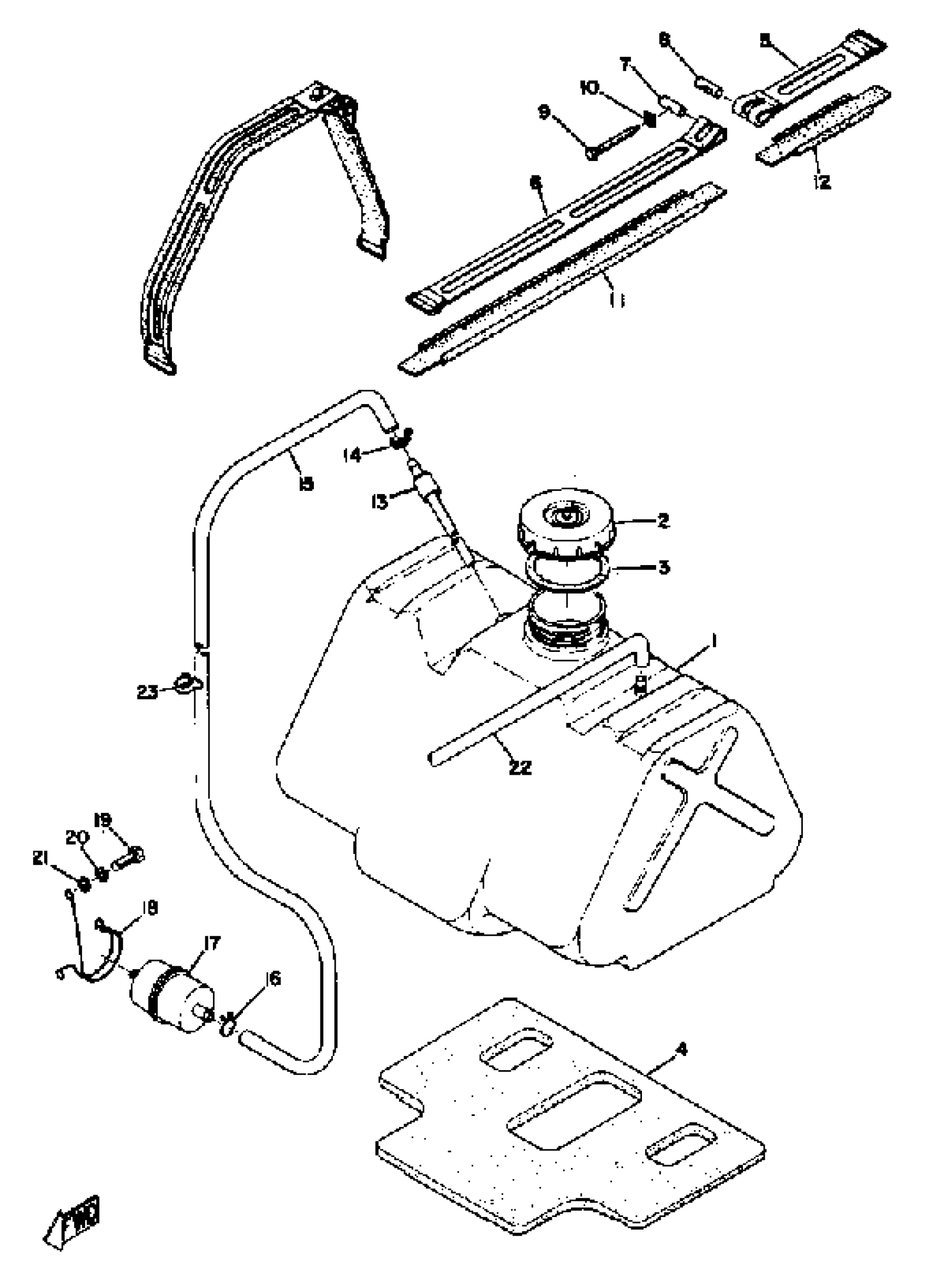

Find the part on the Fuel Tank diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SS396 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(809-24111-00-00)

1
Out of stock

2

BODY, CAP

(809-24611-00-00)

1
Out of stock

3

GASKET, CAP

(806-24612-00-00)

1
Out of stock

4

DAMPER, LOCATING 1

(809-24181-00-00)

1
Out of stock

5

BAND, TNK FITTING 1

(809-24173-00-00)

1
Out of stock

6

BAND, TNK FITTING 2

(809-24199-00-00)

1
Out of stock

7

CLAMP

806-24135-00-00

—

$3.20

In stock

8

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

9

SCREW, HEXAGON

(90153-05002-00)

1
Out of stock

10

WASHER, LOCK

(90215-05058-00)

1
Out of stock

11

DAMPER, LOCATING 3

(809-24183-00-00)

1
Out of stock

12

DAMPER, LOCATING 4

(809-24184-00-00)

1
Out of stock

13

PIPE, SUCTION 1

809-24335-00-00

1
Out of stock

14

CLIP, PIPE 3

(806-24358-00-00)

1
Out of stock

15

HOSE

(90446-11042-00)

1
Out of stock

16

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

16

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

17

FILTER ASSY

1FK-24560-10-00

—

$28.51

In stock

18

HOLDER, FILTER

(809-24558-00-00)

1
Out of stock

19

BOLT(62E)

97013-08012-00

—

$2.48

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

PIPE, OVERFLOW

(809-24318-00-00)

1
Out of stock

23

CLAMP

(90463-07002-00)

1
Out of stock
