1969 Yamaha SS396 Primary Sheave Diagram

← All diagrams

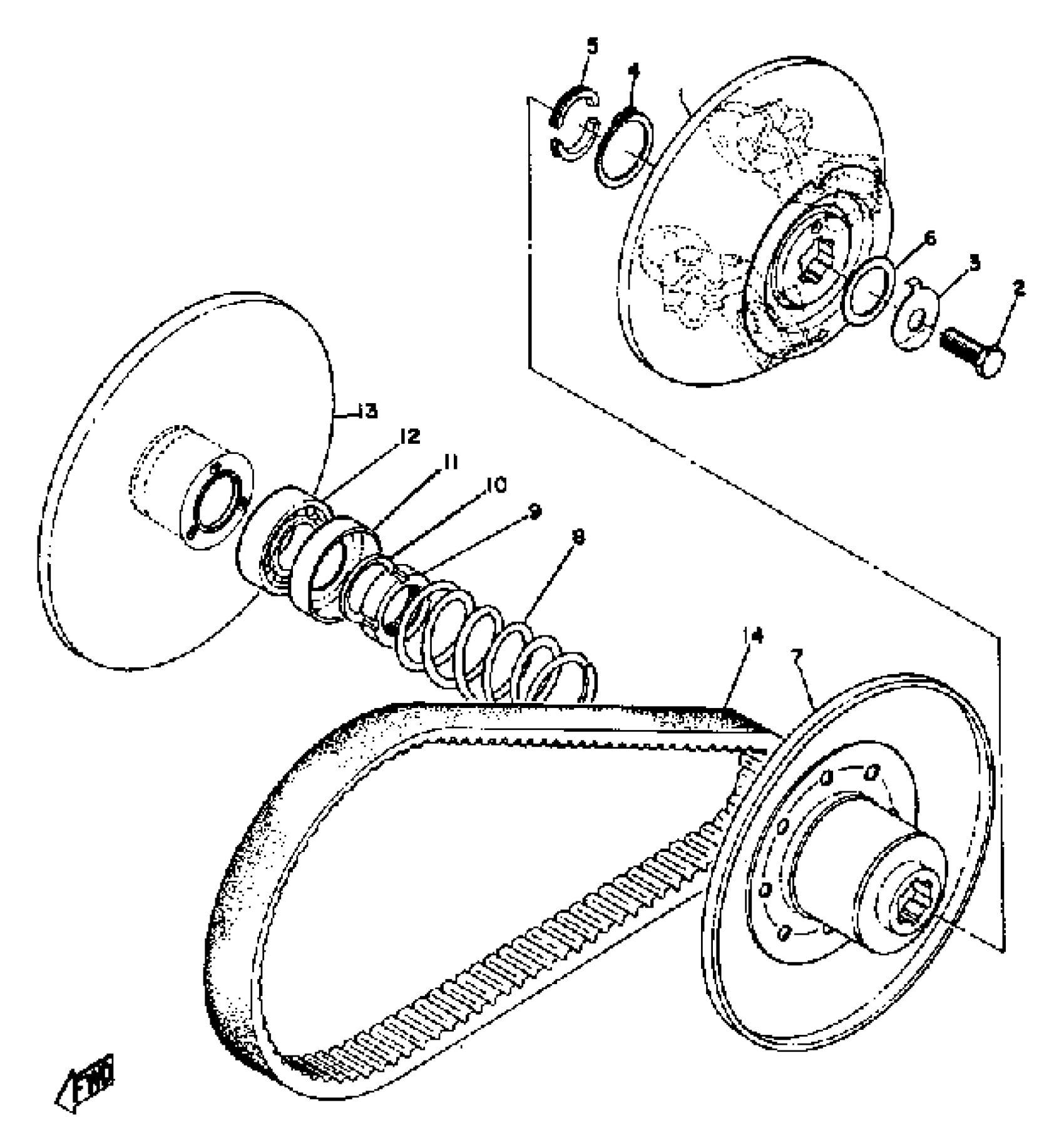

Find the part on the Primary Sheave diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SS396 Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI SHV CAP

(806-17630-00-00)

1
Out of stock

2

BOLT

(90109-10080-00)

1
Out of stock

3

WASHER, LOCK (810-17646-00)

90215-11080-00

1
Out of stock

4

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

5

COLLAR

806-17645-00-00

1
Out of stock

6

WASHER, PLATE

(90201-10370-00)

1
Out of stock

7

PRI SLIDG SHEAVE

(806-17620-00-00)

1
Out of stock

8

SPRING, COMPRESSION

(90501-45163-00)

1
Out of stock

9

NUT, SPEC''L SHAPE

90179-28079-00

1
Out of stock

10

WASHER, CONICAL SPR

90208-28003-00

1
Out of stock

11

SEAT, SPRING

806-17644-00-00

1
Out of stock

12

BEARING

93306-07806-00

1

$56.18

In stock

13

PRI FIXED SHEAVE

(806-17610-00-00)

1
Out of stock

14

V-BELT

820-17641-01-00

1

$33.66

In stock
